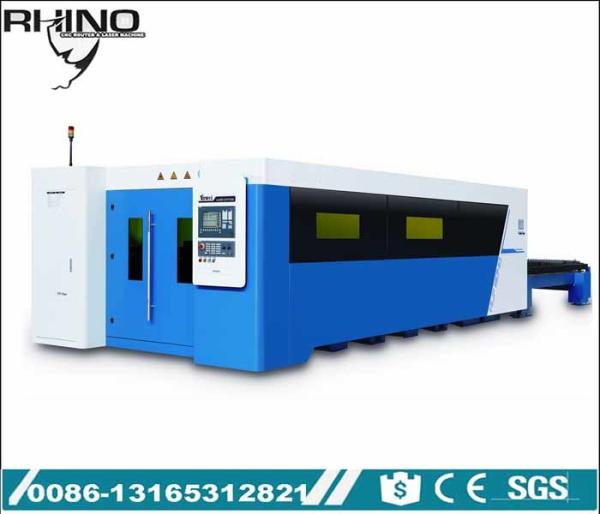

Full Covered Fiber Laser Cutting Machine Raycus 1000W 2000W Type With Exchange Table
Full Covered Fiber Laser Cutting Machine Raycus 1000W 2000W Type With Exchange Table
Specifications
Brand Name :
Rhino
Model Number :
RF-1530-1000W
Certification :
CE/ISO/FDA
Place of Origin :
JINAN,CHINA
MOQ :
1 set
Price :
10000-50000usd/set
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
1000 sets per month
Delivery Time :
10-14 working days
Packaging Details :
strong plywood box
Working size :
1500mmx3000mm
Z axis :
100-200mm
Servo motor :
Japan Yaskawa servo 850w motor driver
Work table :
strong knife table (water table for your option)
Fiber laser generator :
Raycus 1000W
Laser head :
Ray Tools
Mechanical driving system :
PMI square rail
Water chiller :
CWFL800
Motor reducer :
Japan Shimpo brand
PC system :
Industrial computer
Weight :
2000kg
Y axis servo unit :
Yaskawa 850w
Voltage :
AC380V/50HZ or 60HZ
Warranty :
2 YEARS
I/O card :
Cypcut
Color :
As per your requirement
Description

Full coverd Raycus 1000w 2000w Fiber laser cutting machine with exchange table

Laser cutting head

fiber laser cutting head,which has Z axis follow-up function. Highly sensitive and follow-up cutting head applies capacitance sensor monitoring, offering automatic adjusting function with stable and fast cutting.All kinds of matching design of nozzle are applied to lens with many focuses and can also be equipped with optical lens with different focuses. The focus and nozzle can be adjustable flexibly, including adjusting lens on X-Y direction and nozzles on the same axis.

Suitable materials

Application Materials: Fiber Laser Cutting Equipment is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc.

Application Industries

Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.

Features

Sgantry Type Double Drive Fiber Laser Cutting Machine (Exchanged Table)

The new closed design, double table fast exchange ,while processing edge cutting, fast,small slit, smooth section, easy operation,low energy consumption,suitable for large quantities of continuous processing, highlighting cutting competitive advantages.

1000W Main Configuration Instructions

No. Name Quantity Origin and manufacturer name
1 Lasers
(1) Fiber laser 1 set
(2) Laser Power
2 The optical path and the cutting head
Special laser cutting head 1 set
3. Host Machine
(1) Machine bed 1 set Homegrown/Jinan Iron and Steel
(2) Gear rack 1 set From Taiwan
(3) Servo motor and drive 3 set Imported from Japan
4 CNC and software systems
CNC systems(With control software) 1 set Cypcut control system
5 Standard accessories
Water cooling 1 set TENGFEI

1000W Main Parameters

Model RF-1530-1000
Laser type Fiber laser
Laser working medium Fiber
Laser wavelength 1070 nm
Rated output power 1000 W
Beam quality ＜0.373mrad
Effective cutting range 3000×1500(mm)
Table axial positioning accuracy ≤±0.03mm/m
Repeat positioning accuracy table ≤±0.02mm/m
Cutting speed ≤30m/min
Maximum table load 1600KG
Power Ratings Three-phase AC 380V 50Hz
Equipment electric power 10-20KW
Total power protection class IP54

Processing capacity Description

Material Thickness Auxiliary gas
Carbon Steel ＜10mm

Oxygen
Stainless Steel ＜8mm

Oxygen
Aluminum ＜3mm Nitrogen

Part of the process parameters

Material Thicknes(MM) Gas Maximum cutting speed
Carbon Steel 1 Oxygen 3m/min
2 Oxygen 1.2m/min
5 Oxygen 0.5m/min
Stainless Steel 1 Oxygen 3m/min
3 Oxygen 0.5m/min
Aluminum 1 Oxygen 2m/min
2 Oxygen 0.5m/min

RF-1530-1000 Fiber laser cutting machine samples

Full Covered Fiber Laser Cutting Machine Raycus 1000W 2000W Type With Exchange Table

Full Covered Fiber Laser Cutting Machine Raycus 1000W 2000W Type With Exchange Table

Full Covered Fiber Laser Cutting Machine Raycus 1000W 2000W Type With Exchange Table

Full Covered Fiber Laser Cutting Machine Raycus 1000W 2000W Type With Exchange Table

Full Covered Fiber Laser Cutting Machine Raycus 1000W 2000W Type With Exchange Table

Full Covered Fiber Laser Cutting Machine Raycus 1000W 2000W Type With Exchange Table
