Wood Furniture making automatic ATC cnc milling machine ATC CNC Router RSKM25-A
Wood Furniture making automatic ATC cnc milling machine ATC CNC Router RSKM25-A
Wood Furniture making automatic ATC cnc milling machine ATC CNC Router RSKM25-A
Wood Furniture making automatic ATC cnc milling machine ATC CNC Router RSKM25-A
Wood Furniture making automatic ATC cnc milling machine ATC CNC Router RSKM25-A
Wood Furniture making automatic ATC cnc milling machine ATC CNC Router RSKM25-A
Specifications
Brand Name :
Rhino
Model Number :
RSKM25-A
Certification :
CE/ISO/FDA
Place of Origin :
JINAN,CHINA
MOQ :
1 set
Price :
2000-20000usd/set
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
1000 sets per month
Delivery Time :
10-14 working days
Packaging Details :
strong plywood box
Working size :
2000mmx3000mm
Z axis :
300mm
Servo motor :
Japan Yaskawa servo 850w motor driver
Work table :
Vacuum table with T-SLOT
Spindle power :
9kw Italy HSD ATC spindle
ATC type :
Linear tool changer or Disc tool changer
Quantity of tool changer :
6/8/10/12/20 pieces
Automatic :
Yes
Motor reducer :
Japan Shimpo brand
Control system :
Taiwan Syntec 6MB 4axis
Weight :
2000kg
Vacuum pump :
7.5kw
Voltage :
AC380V/50HZ or 60HZ
Warranty :
2 YEARS
Software :
Artcam/Type3
Color :
As per your requirement
Description

Wood Furniture making automatic ATC cnc milling machine cnc router

Machine Feathers:

  • Z axis 300mm height also max 600mm no problem
  • It is suitable for foam,PE,Wood mould processing with high precision
  • ATC 9KW HQD air cooling spindle with ISO30 chuck
  • This brand is more economic but quality is very stable. We also have original Italy HSD ATC 9.0kw air cooling spindle for your option
  • Machine structure is welded by high precision cnc milling meter with steel tube thickness 12mm
  • More stronger and firm when working so that make sure better accurate of mould
  • Linear tool changer 12 pieces to meet all your tools requirements for one job

Factory advantage:

  • Capacity more than 100 sets very month(ATC machine), top leaders in cnc business more than 6 years for ATC CNC Router production.
  • Already exported to more than 100 countries and attract lots of customers,dealers in the world.
  • Adopts top level accessories in the industry, more powerful, simple to operate and highly humanized.
  • Provide a complete set of solutions: including modeling design, programming, tooling design, tool selection, processing data, machine training etc.

Application:

1 Die casting die for automobile covering dies, fixture, cylinder, machine tool and so on.

2 Casting wood models for various machinery castings, such as ships, wind power, machine tools, pump valves, injection moulding machinery, printing machinery, etc.

3 Industrial design of automobile, yacht, airplane, sculpture engineering, etc.

4 Rotary moulds, injection moulds, GRG/GRC exterior wall decorative materials processing, etc.

Wood Furniture making automatic ATC cnc milling machine ATC CNC Router RSKM25-A

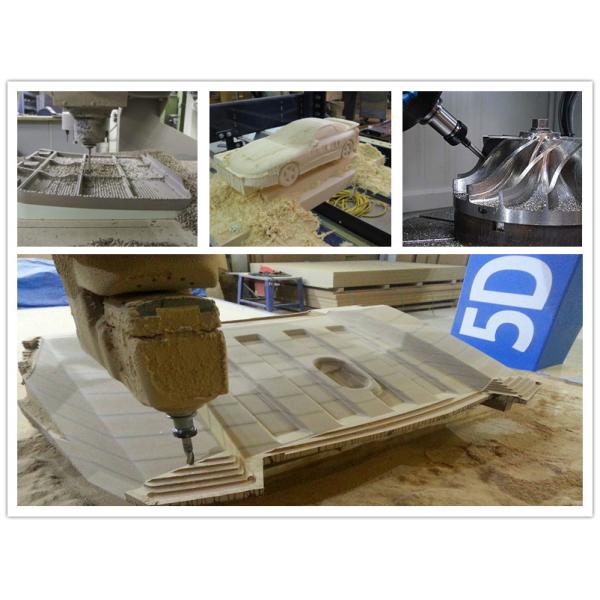

Samples:

Wood Furniture making automatic ATC cnc milling machine ATC CNC Router RSKM25-A

Description & Specifications:
X Working Area 2000mm
Y Working Area 3000mm
Z Working Area 300mm
Table size 2500x3300mm
Traveling Positioning Accuracy ±0.02mm
Repositioning Positioning Accuracy ±0.02mm
Table Surface By vacuum
X,Y ,Z Structure XY gear wheel, Z ball screw
Max. Rapid Travel Rate 90000mm/min
Max. Working Speed 30000mm/min
Spindle Italy 9.0Kw HSD/HQD ATC spindle left right rotate 180 degree
Spindle Speed 0-18000r/min
Motor Yaskawa Japan Servo Motor
Driver Yaskawa Japan Servo Motor
Command G-code*.u00*.mmg*.plt
Working voltage AC 220V/380V
Control System TAIWAN Syntec Control System
Guide rail 30 Square rail (TAIWAN TBI/HIWIN )
N.W./G.W. 2000KGS
Accessories (for free)

1 Tool Box 1

2 Woodworking Knife

All type 12 Different size

3 collet 3.17, 4, 6, 12.7 4

4 Allen wrench M6 1

5 Open-end wrench 27-30 45-52 2

6 Certificate, CE

7 Adjustment screw 4

8 Clamps 8

9 Spanner, 3,4,5,6mm, 4

10 Fuse core 2

12 Software CD 1

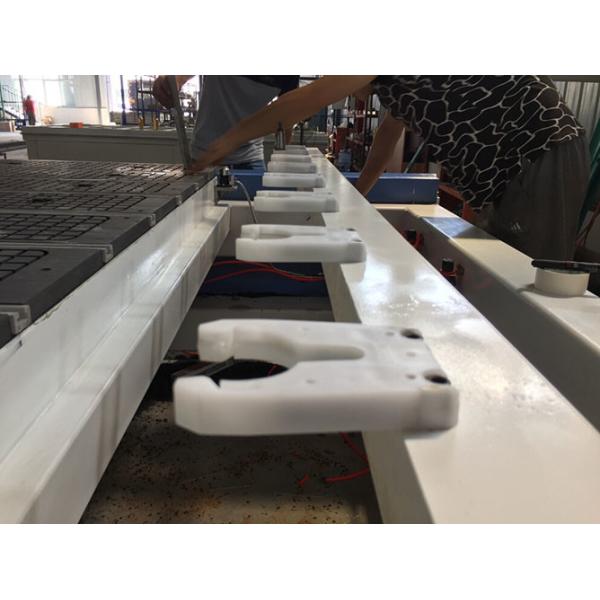

Linear tool changer (optional 1)

Wood Furniture making automatic ATC cnc milling machine ATC CNC Router RSKM25-A

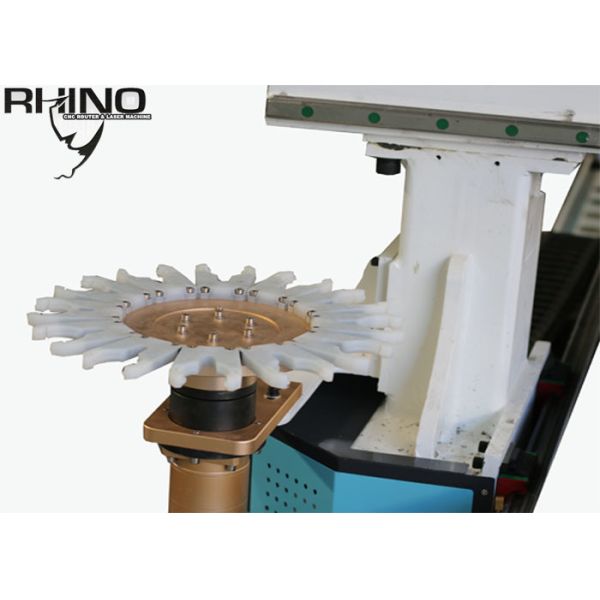

Disc tool changer (optional 2)

Wood Furniture making automatic ATC cnc milling machine ATC CNC Router RSKM25-A

Wood Furniture making automatic ATC cnc milling machine ATC CNC Router RSKM25-A

Wood Furniture making automatic ATC cnc milling machine ATC CNC Router RSKM25-A

Wood Furniture making automatic ATC cnc milling machine ATC CNC Router RSKM25-A

Wood Furniture making automatic ATC cnc milling machine ATC CNC Router RSKM25-A

Wood Furniture making automatic ATC cnc milling machine ATC CNC Router RSKM25-A
