1-10 Ton / Batch Ribbon Mixer Machine Cement Mortar Mixing 220-440V
1-10 Ton / Batch Ribbon Mixer Machine Cement Mortar Mixing 220-440V
1-10 Ton / Batch Ribbon Mixer Machine Cement Mortar Mixing 220-440V
1-10 Ton / Batch Ribbon Mixer Machine Cement Mortar Mixing 220-440V
1-10 Ton / Batch Ribbon Mixer Machine Cement Mortar Mixing 220-440V
1-10 Ton / Batch Ribbon Mixer Machine Cement Mortar Mixing 220-440V
Specifications
Brand Name :
Fair Machinery
Model Number :
FMZZ-2T
Certification :
CE, ISO
Place of Origin :
Zhengzhou,China
MOQ :
1 set
Payment Terms :
T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability :
1000sets/month
Packaging Details :
nuding packing / 2140x900x1325mm /500kg
Product name :
Ribbon Mixer Machine
Fit: :
Cement Mortar Mixing
Product Type :
Dry mortar
Application to； :
Medicine Processing, Chemicals,Coating Chemicals Processing, FOOD PROCESSING, Powder
mixing time: :
5-8min /batch
Product Type: :
Dry powder etc.
Max. Loading Capacity: :
5000L
Description

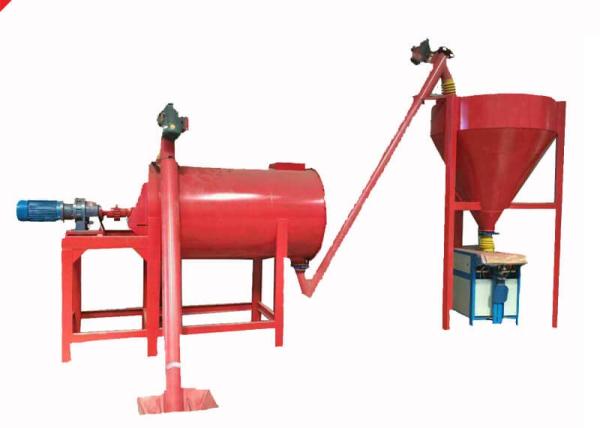

1-10 Ton / Batch Ribbon Mixer Machine Cement Mortar Mixing 220-440V

Introduction of Ribbon Mixer Machine

This Ribbon Mixer Machine is a horizontal positive and negative spiral forced force type. The two inner and outer endless belts push the material axially in opposite directions from the left and right sides to cause convection, shear and diffusion of the materials to achieve uniform mixing.

Features of Ribbon Mixer Machine

The outer and inner screw ribbon blade driven by high speed rotating shaft,mixing the material in maximum,inner screw ribbon blade forced the material to sides,outer screw ribbon blade forced sides material to inward,mix the materials back and forth.In the same time,some material driven by screw ribbon do the radial motion,to form the convective mixing,so to achieve uniform mixing effect in relatively short time.

1-10 Ton / Batch Ribbon Mixer Machine Cement Mortar Mixing 220-440V

Structural feature of Fier Mixer For Cement Mortar

1.Occupy area<20m2,height 3.5m,required 2-3 operation.
2.The capacity at 25-30 Ton per day.
3.It can realize automation in conveying material,mixing,filling and packing.
4.With Less cost.It's the priority option for setting up a small dry mortar factory.

2. Technical Parameters of powder ribbon mixer

Type(FMZZ-)

Power(kw)

Cylinder size(mm)

Dimension (mm) LWH

1T

5.5

Φ850×1250

2140x900x1325

2T

7.5

Φ1050×1875

2940x1300x1800

3T

11

Φ1050×3530

3315x1300x1800

5T

15

Φ1400×2500

3850x1700x2240

10T

22

Φ1600×3000

4400x1700x2560

15T

30

Φ1600×4200

5250x1850x2600

20T

37

Φ1850×4300

6250x1900x2545

30T

45

Φ2300×4500

6300x2300x3150

50T

50

Φ3500*5000

7500x2700x3200

The capacity can be adjusted according to user requirement.

Packaging & Shipping

Terms of price: FOB CIF CFR

Packaging term: nude cargo OR wooden case

Terms of Payment: T/T, L/C AT SIGHT, WEST UNION

Time of delivery: 7 days after receiving deposit

MOQ: 1 SET

Choose us

Fier Machinery as the professional mixing machine manufacturer since 1997, Fier mixers bring unparalleled versatility to industrial mixing applications.

We are committed to providing good quality equipment of Ribbon blender, Food grade mixer, Paint Mixer Machine, powder mixing equipment, etc.
Not only we Fier Machinery can supply you with a turn-key solution, but also we Fier Machinery can give you a competitive price for your Food grade mixer!
Because of the profession, So trustworthy!
Choice us, build a brighter future with us, and saving money now!
