2.4m Length High Ribbed Formwork 3.39kgs / M2 Construction 0.45m Width
2.4m Length High Ribbed Formwork 3.39kgs / M2 Construction 0.45m Width
2.4m Length High Ribbed Formwork 3.39kgs / M2 Construction 0.45m Width
2.4m Length High Ribbed Formwork 3.39kgs / M2 Construction 0.45m Width
Specifications
Brand Name :
JiaFu
Model Number :
JFH19
Place of Origin :
ANPING HEBEI CHINA
MOQ :
1000
Supply Ability :
5000PCS/DAY
Delivery Time :
10-15DAYS
Packaging Details :
500 OR 1000PCS/PALLET
Name :
High Ribbed Formwork
LENGTH :
1-4M
RIB HEIGHT :
15MM
HOLE :
5*10MM
MATERIAL :
GALVANIZED PLATE
Width :
450mm
Description

2.4m Length 3.39kgs/m2 Construction High Ribbed Formwork 0.45m Width

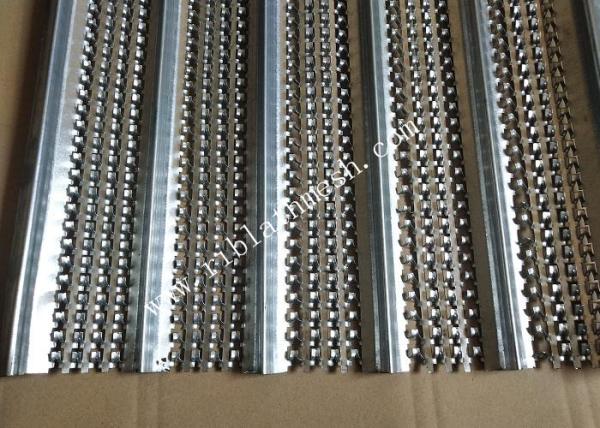

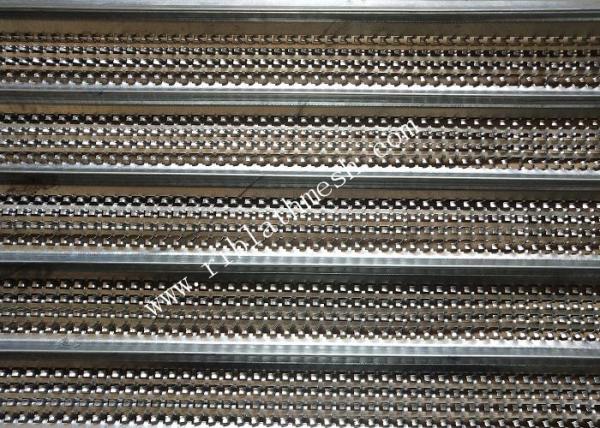

High Ribbed Formwork is manufactured from hot-dipped galvanized steel sheets.we can produce the goods thickness from 0.2mm-0.57mm. Because its meshes and U patterns, it has better anti-stress capability and forming flexibility than normal metal lath. This product has excellent engineering quality, construction security and widely used in tunnels bridges, valve basement systems, sewage systems, subways, retaining walls, nuclear power plants, shipyards, water pools and marine engineering works and high rise building projects and non-regular or bending pattern etc. As concrete permanent assembly-free form work.

High Ribbed Formwork is made of the hot dipped plate.The width is :0.45mm,Length from 1m-4m.Hole:5*10mm

Model Thickness (mm) Weight (kg) Width (mm) Length (mm) Rib Height (mm) Rib Distance(mm)
018 0.18 1.35 450 2200 15 90
021 0.21 1.60 450 2200 15 90
023 0.23 1.70 450 2200 15 90
025 0.25 1.90 450 2200 15 90
030 0.30 2.45 450 2200 15 90
035 0.35 2.90 450 2200 15 90
0.40 0.40 3.30 450 2200 15 90

2.4m Length High Ribbed Formwork 3.39kgs / M2 Construction 0.45m Width
