AC220/50 Intelligent Grain Color Sorter For Food & Beverage Factory
AC220/50 Intelligent Grain Color Sorter For Food & Beverage Factory
AC220/50 Intelligent Grain Color Sorter For Food & Beverage Factory
AC220/50 Intelligent Grain Color Sorter For Food & Beverage Factory
AC220/50 Intelligent Grain Color Sorter For Food & Beverage Factory
AC220/50 Intelligent Grain Color Sorter For Food & Beverage Factory
AC220/50 Intelligent Grain Color Sorter For Food & Beverage Factory
AC220/50 Intelligent Grain Color Sorter For Food & Beverage Factory
AC220/50 Intelligent Grain Color Sorter For Food & Beverage Factory
AC220/50 Intelligent Grain Color Sorter For Food & Beverage Factory
AC220/50 Intelligent Grain Color Sorter For Food & Beverage Factory
AC220/50 Intelligent Grain Color Sorter For Food & Beverage Factory
AC220/50 Intelligent Grain Color Sorter For Food & Beverage Factory
AC220/50 Intelligent Grain Color Sorter For Food & Beverage Factory
Specifications
Place of Origin :
Anhui, China
Brand Name :
Nage
Certification :
CE/SGS
Supply Ability :
50 Set/Sets per Month
Packaging Details :
Factory's standard export carton box package suitable for container shipment
MOQ :
>=1 Sets
Price :
$6,500.00
Applicable Industries :
Food & Beverage Factory, Home Use
Condition :
New
Production Capacity :
0.5-1.5
Voltage :
AC220/50(V/Hz)
Power(W) :
1(KW)
Weight :
320(KG)
Dimension(L*W*H) :
910*1476*1629(MM)
Warranty :
1 year
After-sales Service Provided :
Field maintenance and repair service
Product name :
Color Sorter
Application :
Grain Processing
Name :
Mini Combined Rice Milling Machine
Function :
sorting
Usage :
Home Used
Type :
Grain Processing Equipment
Feature :
High Efficiency
Advantage :
High Efficiency Working
Quality :
Top Level
Port :
Shanghai
Description
Product Description

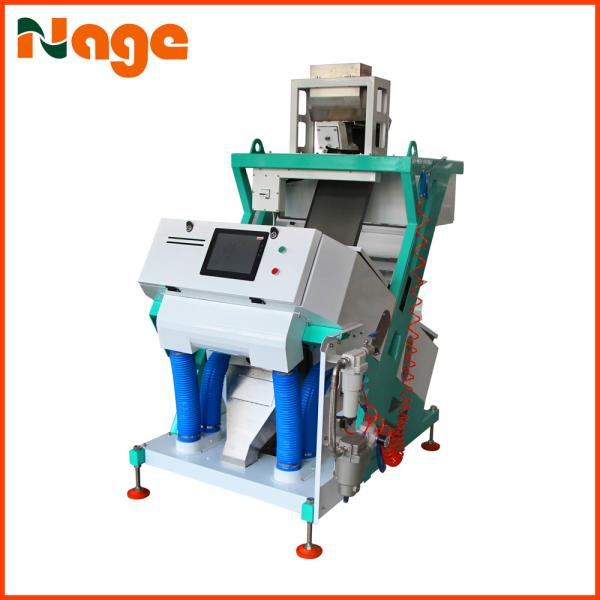

Intelligent CCD Color Sorting Machine For Grain
NAGE intelligent CCD rice color sorter is a chute type precise selection device.Among them,the front and rear views can be equipped with visible sight mirror using the latest CCD color sensor,color selection customized lens,high-speed FPGA data processor,high-speed electromagnetic actuator and easy-to-operate human -computer interface with touch function. it is a high -tech product integrating light, machine, electricity and gas.
Technical Parameter
model 6SXM-64 6SXM-128 6SXM-192 6SXM-256 6SXM-384
chutes, No. 64 128 192 256 384
product output 0.5-1.5 1.0-2.5 2.0-4.5 3.0-6.5 4.0-10.0
sorting accuracy 99.9 99.9 99.9 99.9 99.9
optimized carryover 8:1 8:1 8:1 8:1 8:1
weight(kg) 320 510 690 870 1230
minium identification 0.03 0.03 0.03 0.03 0.03
power (kw) 1 1.5 2 2.5 3.5
power supply (v/hz) AC220/50 AC220/50 AC220/50 AC220/50 AC220/50
Dimension (l*w*h)mm 910*1476*1629 1414*1536*1726 1724*1536*1690 2085*1536*1690 2715*1536*1690
Examples of sorting
AC220/50 Intelligent Grain Color Sorter For Food & Beverage Factory
Detailed Images
AC220/50 Intelligent Grain Color Sorter For Food & Beverage Factory

Lens and image acquisition
CCD true color sorting technology, color high-definition recognition, high speed sorting, recognition more accurate.
5400 pixels high precision professional lens ensures image clarity and accuracy. The highest resolution is as high as 0.02 mm-2, which can accurately identify small defects and spots in the material.
AC220/50 Intelligent Grain Color Sorter For Food & Beverage Factory

Image processing algorithm
Powerful image processing algorithm, using color selection and shape selection combined algorithm, can accurately identify the color and shape of materials.
Photo capture technology and high-definition imaging technology, materials and colors can be defined color selection.
AC220/50 Intelligent Grain Color Sorter For Food & Beverage Factory

Solenoid value
Using high-quality solenoid valve, high frequency and long life. While ensuring the output, the take-out ratio is reduced.
AC220/50 Intelligent Grain Color Sorter For Food & Beverage Factory

LED light source
The newly designed LED light source has the advantages of high brightness, long life, good heat dissipation, and can be used for color sorting of various materials and colors.
Different materials do not need to replace the light source.
AC220/50 Intelligent Grain Color Sorter For Food & Beverage Factory

Feed tank
Special anodizing process,large output and uniform cutting. Waterfall plate and narrow chute channel to meet the color selection of different materials.
AC220/50 Intelligent Grain Color Sorter For Food & Beverage Factory

Interface Powerful software operating platform
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Packing&Shipping
AC220/50 Intelligent Grain Color Sorter For Food & Beverage Factory

Our services

Before sale
We will provide detailed solutions for your special requirement and help you know more about our color sorter.
After sale services
1.We provide customer with one year free repair and maintenance for complete machine.
2.We also provide lifetime professional training and technical guidance service.
