10 Chute Spices Color Sorter 640 Channels Easy Operate 4317*2077*1795mm
10 Chute Spices Color Sorter 640 Channels Easy Operate 4317*2077*1795mm
Specifications
Brand Name :
Coreprogram
Model Number :
CVG-10
Place of Origin :
Hefei, Anhui, China
MOQ :
1 set
Price :
Negotiable
Supply Ability :
1000 sets per year
Delivery Time :
15 working days
Packaging Details :
Wooden Box
Payment Terms :
L/C, T/T
HS CODE :
84371010
Channels :
640
Power（Kw） :
7.05
Dimension(l*w*h) :
4317*2077*1795mm
Weight（kg） :
2520
Lens :
Phoenix
Sensor Chips :
Toshiba
Light Source :
Osram
Description

10 Chute Spices Color Sorter for White and Red and Black Green Peppers

Product Superiority :

1. Brand new photoelectric design LED light source, More energy-saving, low heat.
2. The light source and the sorting box are set independently to reduce the interference of
dust on the material sorting .
3. Unique bottom exhaust dust removal system, excellent dust removal effect, stable performance
in dusty environment .
4. Easy to learn and operate .
5. Simple optical system design, precise automatic calibration system , well-designed
man-machine interface .
6 .Coreprogram Color Sorting machine provides customized designed color sorter
machine according to the demands of the end-users.
7. Logo , color , size can be customized.

Technical Parameters:

Model Capacity
(Kg/h)		 Optimized Carryover
(bad:good)		 Sorting Accuracy
(%)		 Power
(Kw)		 Voltage
(V/Hz)

Dimension

L×W×H(mm)

Weight

(kg)
XCS80 100-150 >20:1 >99.9 0.5-0.8 220/50 967*1553*1784 286
CVG-5 300-700 >20:1 >99.9 3.3 220/50 2617*2077*1795 1532
CVG-6 400-800 >20:1 >99.9 4.2 220/50 2955*2077*1795 1752
CVG-7 500-900 >20:1 >99.9 5.0 220/50 3293*2077*1795 1910
CVG-8 600-1000 >20:1 >99.9 6.0 220/50 3641*2077*1795 2170
CVG-10 700-1200 >20:1 >99.9 7.05 220/50 4317*2077*1795 2520
CVG-12 800-1300 >20:1 >99.9 8.3 220/50 4993*2077*1795 2960

Note: Due to different raw materials and different impurities ratio , parameters above
will vary to some extent ,which are references for you choosing a suitable model.

Working Schematic :

10 Chute Spices Color Sorter 640 Channels Easy Operate 4317*2077*1795mm

From the schematic ,we can learn that when the materials enter the chute ,the sensor will recognize the shape and color of materials, if there are some specked ,splitted ,rotten and other defects,the ejector system will release compressed air to change the path of rejected materials with defects into rejected hole . The accepted materials will come out from the accepted hole .

Sorting Case :

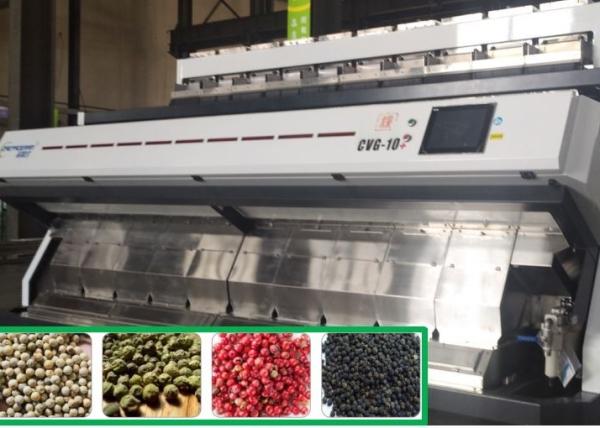

Example of Pepper Sorting
10 Chute Spices Color Sorter 640 Channels Easy Operate 4317*2077*1795mm
White Pepper Green Pepper Red Pepper Black Pepper
