Microsoft Software Anise Color Sorter 2 Layers 400Kg/H 1 Year Software
Microsoft Software Anise Color Sorter 2 Layers 400Kg/H 1 Year Software
Specifications
Brand Name :
Coreprogram
Model Number :
BDX1600-2
Place of Origin :
Hefei, Anhui, China
MOQ :
1 set
Price :
Negotiable
Supply Ability :
1000 sets per year
Delivery Time :
15 working days
Packaging Details :
Wooden Box
Payment Terms :
L/C, T/T
HS CODE :
84371010
Structure :
Belt-type
Layers Number :
2
Voltage(V/Hz) :
220/50
Touch Screen :
Advantech
Power Supply :
MeanWell brand
Software :
Microsoft
Warranty :
1 year
Description

Intelligent Removal Spices Anise Sorting Machine Processing Equipment

Advantages Of Coreprogram :
1. Efficient Double-layer For Second-selection, Single Layer is Optional.
We provide slow and fast series, infrared series, four-view series single and
double layer color sorters to meet the needs of customers at different levels.
2. Match Customers Demands
For special materials such as large volume, irregular, easily broken, high humidity,
strong corrosiveness, high impurity rate, multiple colors, etc.
3. Intelligent Cleaning Design
One lens with one brush, and multiple dust removal devices, blow dust to remove
floating light objects without contact, reduce the interference of dust on the lens
capture,and improve the accuracy of recognition.

Technical Parameters:

Model Layers Number Voltage
(V/Hz)		 Power
(Kw)		 Sorting Accuracy(%) Capacity
(Kg/h)		 Carryover
Ratio		 Dimension(mm)
(L*W*H)		 Weight
(Kg)
BDX640-1 1 220/50 2.9 >99.9% 100-150 >10:1 3380x2560x1720 1100
BDX640-2 2 220/50 3.4 >99.9% 150-200 >10:1 3830x2560x2530 2100
BDX1280-1 1 220/50 4.7 >99.9% 200-400 >10:1 3380x3050x1720 1312
BDX1280-2 2 220/50 8.2 >99.9% 300-500 >10:1 3830x3050x2530 2560
BDX1600-2 2 220/50 8.75 >99.9% 400-600 >10:1 5300x3750x3200 2765
BDX1920-1 1 220/50 5.85 >99.9% 400-600 >10:1 3380x3840x1720 1920
BDX1920-2 2 220/50 9.5 >99.9% 500-700 >10:1 3830x3840x2530 3765

Note: The above parameters take green pepper with 5% impurities ratio as an example .
Due to different raw materials and different impurities ratio , parameters above will vary
to some extent ,which are references for you choosing a suitable model.

Working Schematic:

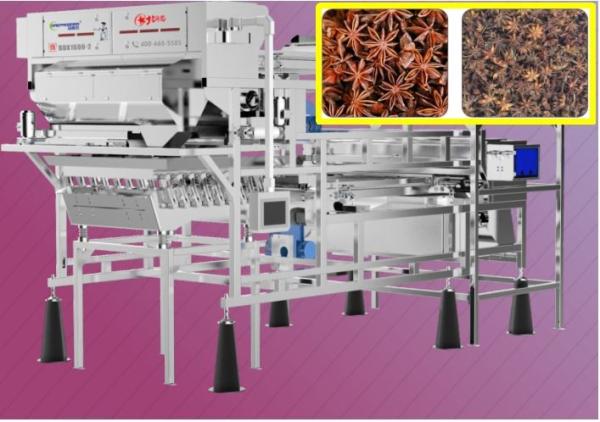

Microsoft Software Anise Color Sorter 2 Layers 400Kg/H 1 Year Software

Sorting Case:

Example Of Anise Sorting

Microsoft Software Anise Color Sorter 2 Layers 400Kg/H 1 Year Software

Accepted Anise Rejected Anise

Packaging & shipping :
Delivery Time:15 working days after payment.
Packaging: dedicated wooden box.

Our Service:
• One year quality warranty for the machine and spare parts.
• Engineers service for installation overseas.
• Whole-life after-sales service and free consultation.
• Customized requirements available.
• Technician guide at the site.
• 24 Hrs online service.
