Carbon Steel Wire Rope Galvanised Thimbles For Steel Cable M4 - M28
Carbon Steel Wire Rope Galvanised Thimbles For Steel Cable M4 - M28
Carbon Steel Wire Rope Galvanised Thimbles For Steel Cable M4 - M28
Carbon Steel Wire Rope Galvanised Thimbles For Steel Cable M4 - M28
Carbon Steel Wire Rope Galvanised Thimbles For Steel Cable M4 - M28
Carbon Steel Wire Rope Galvanised Thimbles For Steel Cable M4 - M28
Carbon Steel Wire Rope Galvanised Thimbles For Steel Cable M4 - M28
Carbon Steel Wire Rope Galvanised Thimbles For Steel Cable M4 - M28
Specifications
Brand Name :
LKY
Model Number :
Wire Rope Thimble
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1 ton
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
200 tons per month
Delivery Time :
60 days
Packaging Details :
Carton + Pallet
Product Name :
Galvanized Carbon Steel Wire Rope Thimble
Material :
Carbon Steel, Stainless Steel
Surface :
galvanized, hot dipped galvanized
Size :
M4 - M28
Usage :
Wire rope fittings, chain fittings, marine hardware fittings
Packing :
Cartong + Pallet
Description

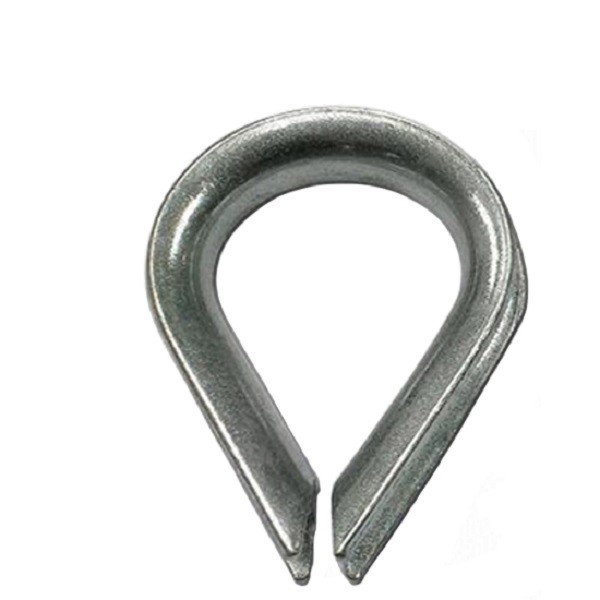

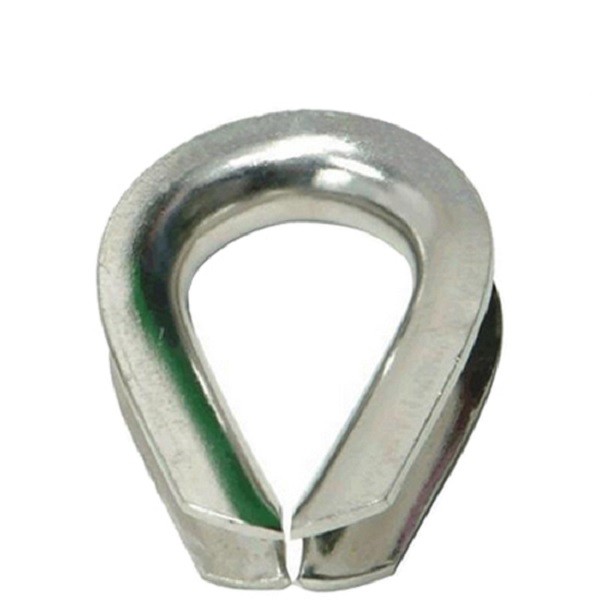

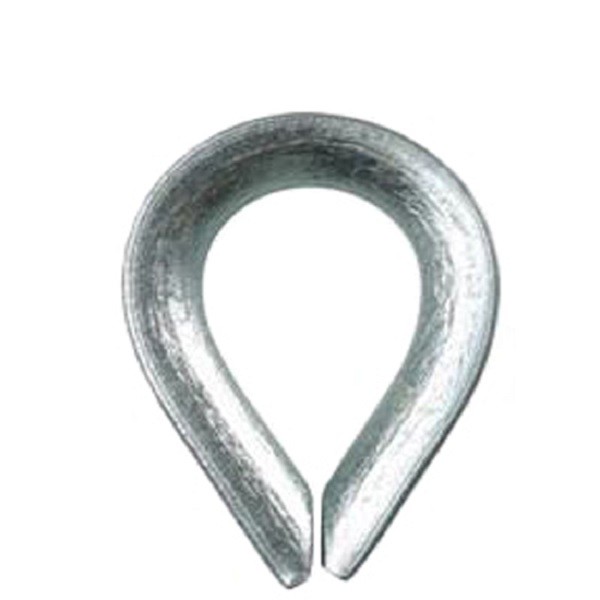

Galvanized Carbon Steel Wire Rope Thimble

Our company specialize in liftings with good quality, reliable performance, competitive price, short delivery time and good after sales sercive.

Wire rope thimble, also called capel, is a kind of hoisting rigging. The materials are A3 steel or high quality 15 and 35 carbon steel. The surface of it is bright and smooth with hot dip galvanized, and without leakage, bubbles, crakes or other defects.

European, North America, South Asia, Middle East and Africa are our leading markets, shipyard and Storage Company. Our products have been exported directly to the many shipyards.And we are expecting to your visit and negotiation, we will be your reliable partner in China.

Pay attention:

1. The surface of wire rope thimble should be smooth. It is not allowed to have defects such as cracks and sharpe edges.

2. The safety working load of it shall not be less than 32% of the mininum breaking load of wire rope.

3. Please check it before use to ensure it without serious wear, deformation and fatigue crack.

4. The use of thinble shall not exceed the prescribed safety working load.

5. The thimble should be scrapped when there is obvious permanent deformation

Specification:

Rope Dia.(in) Weight(kg) A(mm) B(mm) C(mm) D(mm) E(mm) F(mm) G(mm) K(mm) Q(mm)
5/16' 0.08 22.2 38 12.7 33.4 52 7.9 4 4 30.1
3/8' 0.1 25.4 47.6 14.3 38 64 10.3 6.3 4.8 35
7/16' 0.11 28.6 52 17.5 41.3 73 12.7 7.9 4.8 38
1/2' 0.17 31.7 53.8 20.6 44.5 79.4 14.3 7.9 5.5 42.9
9/16' 0.19 31.7 58.8 20.6 44.5 79.4 14.6 7.9 5.5 42.9
5/8' 0.3 41.3 74.5 22.2 58.8 95.8 15.9 8.7 7.9 56
3/4' 0.6 50.8 92 28.6 73 124 20.6 11.1 9.5 69.8
7/8' 0.69 56 102 31.7 82.5 133 22.2 12.7 9.5 76.2
1' 1.15 69.8 119 35 108 162 27 14.3 10.3 90.5
1 1/8' 1.4 76.2 133 38 112 178 28.6 15.9 12.7 102
1 1/4' 1.5 95 152 41.3 133 197 33.4 15.9 12.7 121
1 3/8' 2.5 105 175 47.6 152 228 38 19 15.9 137
1 1/2' 3.75 114 197 52 165 254 41.3 23.8 17.5 149
1 5/8' 3.91 114 197 58.6 165 254 42.9 23.8 17.5 149
1 3/4' 6.67 127 228 56 178 286 50.8 25.4 25.4 178
1 7/8' 8.42 133 248 66.6 190 317 60.4 28.6 28.6 190

Carbon Steel Wire Rope Galvanised Thimbles For Steel Cable M4 - M28

Rope-ø A B C
mm mm mm mm
4 4 11 16
5 5 16 22
6 6 19 26
7 7 22 32
8 8 24 34
9 9 29 38
10 10 32 42
11 11 35 48
12 12 38 51
14 14 40 57
16 16 42 60
18 18 45 67
20 20 51 76
22 22 54 83
24 24 64 88
26 26 68 102
28 28 73 110

Carbon Steel Wire Rope Galvanised Thimbles For Steel Cable M4 - M28

Size-ø A L C
inch mm mm mm
1/8 4 33.27 17.5
3/16 5 33.27 17.5
1/4 7 33.27 17.5
5/16 8.6 38 20.57
3/8 10.4 41 23.88
1/2 13.5 47.75 28.7
5/8 16.8 57.15 35.05
3/4 19.8 63.5 41.4
7/8 23.88 88.9 47.75
1 26.92 107.95 63.5
11/8-11/4 33.27 114.3 69.85

Carbon Steel Wire Rope Galvanised Thimbles For Steel Cable M4 - M28

Packing & Delivery

Carbon Steel Wire Rope Galvanised Thimbles For Steel Cable M4 - M28

Carbon Steel Wire Rope Galvanised Thimbles For Steel Cable M4 - M28
