BS464 Wire Rope Thimble Ordinary Steel Cable Thimble 0.076 - 15kg / Pc
BS464 Wire Rope Thimble Ordinary Steel Cable Thimble 0.076 - 15kg / Pc
Specifications
Brand Name :
LKY
Model Number :
BS464
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1 ton
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
200 tons per month
Delivery Time :
60 days
Packaging Details :
Carton + Pallet
Product Name :
BS464 Ordinary Thimble for Steel Wire Rope
Material :
Carbon Steel
Surface :
Galvanized
Size :
5/16 - 2-1/2 ''
Weight :
0.076 - 15 kg/pc
Packing :
Cartong + Pallet
Description

Galvanized Carbon Steel BS464 Ordinary Thimble for Steel Wire Rope

BS464 Ordinary Thimble for Steel Wire Rope:

Our company has produced this model for many years. All sizes are available. Our professional sales team will offer you the best service. Please feel free to get in touch with us.

Details:

1. Model: BS464 Thimble for Steel Wire Rope
2. Material: Carbon steel
3. Usage: Wire rope fittings, marine hardware fittings
4. Surface Treatment: Galvanized, hot dipped galvanized
5. Size: Different sizes are available
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS,etc.
9. Notes: Special specifications and marks can be made according to customers requirements

Specification:

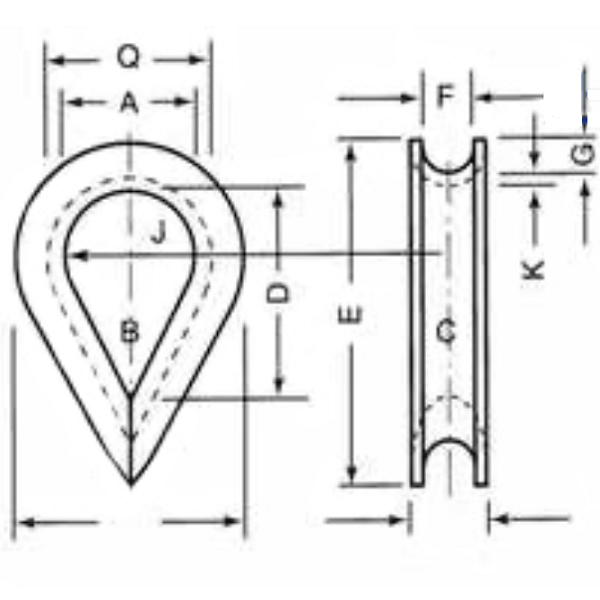

Rope Dia.(in) Weight(kg) A(mm) B(mm) C(mm) D(mm) E(mm) F(mm) G(mm) K(mm) Q(mm)
5/16' 0.08 22.2 38 12.7 33.4 52 7.9 4 4 30.1
3/8' 0.1 25.4 47.6 14.3 38 64 10.3 6.3 4.8 35
7/16' 0.11 28.6 52 17.5 41.3 73 12.7 7.9 4.8 38
1/2' 0.17 31.7 53.8 20.6 44.5 79.4 14.3 7.9 5.5 42.9
9/16' 0.19 31.7 58.8 20.6 44.5 79.4 14.6 7.9 5.5 42.9
5/8' 0.3 41.3 74.5 22.2 58.8 95.8 15.9 8.7 7.9 56
3/4' 0.6 50.8 92 28.6 73 124 20.6 11.1 9.5 69.8
7/8' 0.69 56 102 31.7 82.5 133 22.2 12.7 9.5 76.2
1' 1.15 69.8 119 35 108 162 27 14.3 10.3 90.5
1 1/8' 1.4 76.2 133 38 112 178 28.6 15.9 12.7 102
1 1/4' 1.5 95 152 41.3 133 197 33.4 15.9 12.7 121
1 3/8' 2.5 105 175 47.6 152 228 38 19 15.9 137
1 1/2' 3.75 114 197 52 165 254 41.3 23.8 17.5 149
1 5/8' 3.91 114 197 58.6 165 254 42.9 23.8 17.5 149
1 3/4' 6.67 127 228 56 178 286 50.8 25.4 25.4 178
1 7/8' 8.42 133 248 66.6 190 317 60.4 28.6 28.6 190
