Specifications
Brand Name :
Longxingsheng
Model Number :
LS-1246B
Certification :
CE/ISO-9001
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 Sets per month
Delivery Time :
7-30 workdays
Packaging Details :
with film, paper and wooden crates
Products Name :
Automatic High Speed Rigid Box Making Machine For Cardboard Box Wrapping Box Makers & Box Manufacturers
Max Paper Size :
L800*W600mm
Min Paper Size :
L135*W100mm
Box Length :
80-600mm
Box Width :
65-400mm
Box Height :
15-120mm
Paper thickness :
80-350gsm
Heating power :
8Kw
Description

Automatic Rigid Box Making Forming Machine For Cardboard packaging Chocolate Sweet Food Box Makers & Manufacturers

Rigid box making machine -1246B Introduction

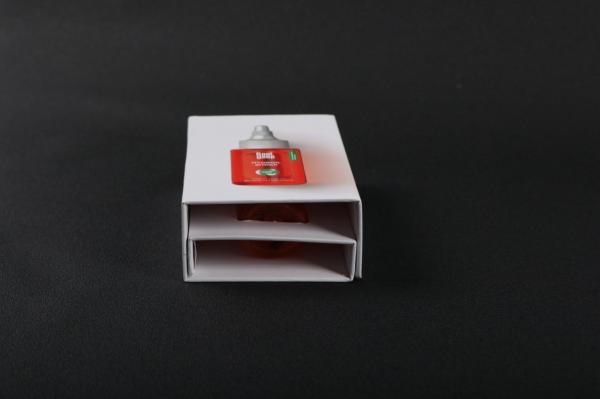

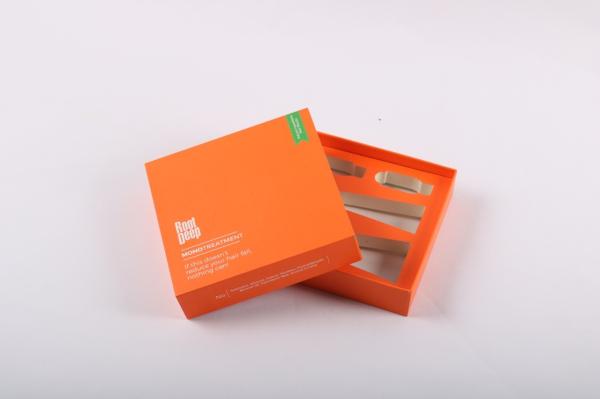

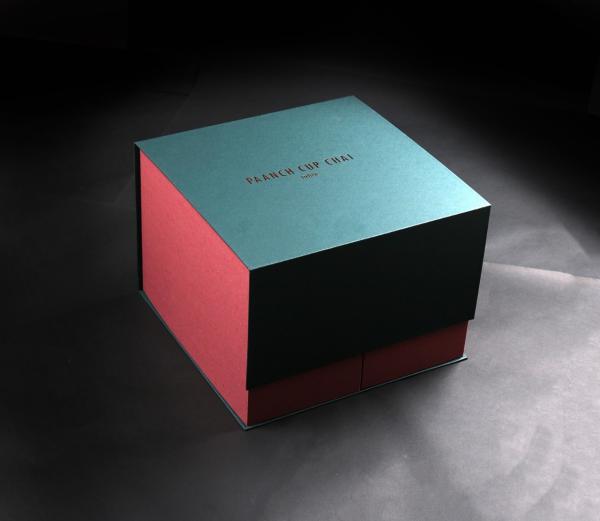

Rigid box forming machine is the most advanced and best molding equipment for making high-grade rigid box cartons (such as shoe boxes, shirt boxes, underwear boxes, gift boxes, food boxes, hardware boxes, etc.) in China. Adopt PLC programmable controller, photoelectric tracking system, touch screen man-machine interface, implement paper feeding, gluing, cardboard forming four corners, positioning and lamination, automatic introduction, box feeding, edge wrapping, ear folding and folding and forming actions once complete, the whole process is automated, and the production efficiency is more than ten times higher than that of traditional manual production!

Features of Rigid Box Forming Machine:
1. Automatic facial tissue feeding conveying system.

2. Hot melt adhesive automatic circulation, stirring and gluing system. (optional glue concentration automatic control device)

3. Hot-melt adhesive paper belt automatic conveying and cutting device, which can complete the four corners of the cardboard inner box at one time.

4. There is a vacuum suction fan under the conveyor belt to control the relative offset of the glued surface paper.

5. The glued surface paper and the cardboard inner box adopt hydraulic and pneumatic deviation correction devices, which can accurately position and fit, and the fit error is ±0.01mm.

Rigid Box Packaging Machine Technical Parameters
Type LS-1246B
Paper size(max) L800*W600mm
paper size(min) L135*W100mm
Max cardboard size L760*W560mm
Min cardboard size L120*W100mm
Box size(length) L100-600mm
Box size(width) W60-400mm
Box size(height) H15-120mm
Paper thickness 80-350g/m2
Cardboard thickness 0.8-3mm
Edge folding size 10-90mm
Turn in depth 15-80mm
Working speed 15-25 pcs/min
Motor power 13kw/380v 3phase
Heating power 8kw
Air pressure 40L/min 0.8MPa
Weight of machine 3800kg
Machine dimension L6600*W3800*H3000mm

Machine advantages

1.Paper loading part: Double feeding platform by separated control

2.Corner pasting part: Non-stop cardboard stacking device, uses-friendly.

3.computer control: Servo control digital quick size adjustment

4.Forming system: No need to change tuck in blade and air pressing plate.

5.Paper feeding part: Servo-driven cam feeder effectively avoids double paper feeding.

6.Box positioning system: Big size range positioning, various in application, single mode running available

7.Gluing system:: Integrated gluing guide groove, easy to clean

8.Box holding part: lift-up box holding mechanism to prevent the bottom of the box from being scratched.

9.Visual positioning part: Dual cameras are used to operate independently. If the size of the box needs to be changed, the camera does not need to be moved, only the parameters need to be set. The camera works simply and efficiently, and the shots are fast and clear.

Automatic Intelligent Rigid Box Making Forming Machine For Cardboard Packaging Chocolate Sweet Food Box
Working process
Automatic Intelligent Rigid Box Making Forming Machine For Cardboard Packaging Chocolate Sweet Food Box
Automatic Intelligent Rigid Box Making Forming Machine For Cardboard Packaging Chocolate Sweet Food Box Machine setting time: Short in 45 minutes
Automatic Intelligent Rigid Box Making Forming Machine For Cardboard Packaging Chocolate Sweet Food Box
Intelligent setting page
Automatic Intelligent Rigid Box Making Forming Machine For Cardboard Packaging Chocolate Sweet Food Box
Machine parts
Dongguan Longxingjian Intelligent Equipment Co., Ltd, our company was established in 2016-01-26. The company address is located in Room 102, Building 2, No. 3 Bajiaowo Chuangye Road, Wanjiang Street, Dongguan City, Guangdong Province.

We have independent R&D department. Up to now, We have got more than 20 patents including pratice patents, appearance patents and technology-based patents. We have been specialized in post-press machinery's research, development, manufacturing and selling for more than 13 years. Grooving machine series and rigid box forming series are our main products.

The trend of economic globalization is unstoppable, our company is sincerely willing to cooperate with enterprises from all over the world to achieve a win-win situation.

Our advantages
Certificates: ISO9001-2008, Quality management system, CE certificate.
Mission & Vision: Provide smart modular for packaging.
Products scope: Automatic rigid box making machine. V grooving machine. Visual positioning machine. Rigid box former. Corner pasting machine. Gluing machine and other machinery.
Market positioning: Middle and high-end market
After-sales service:
* Machine installation and training in customer's factory.
* Engineers can repair machinery overseas or remotely repair machines.
* Online support technical advisor.
* Free replacement of machine parts and repairs during the warranty period.
* The entire life cycle of machine service.
FAQ
1. What is your lead time?----Within 5-30 workdays ,we will arrange your order upon receiving your 30% deposit on order and ship out the machine before receiving your 70% remaining payment.
2. Can LXS company handle shipping for customers?----Yes.(Please provide us your requested sea port and we can check the shipping cost from logistic company and arrange shipping for you.
3. Does the packing strong?----Yes, of course! All of our export packing is with strong wooden case,all are confirm to export packing standard.
4. How about after-sales service process?----When your machine has problem, just contact your sales and we will solve your problem ASAP.
5. Can your engineer come to us for installing the machine & handle problems?---Yes,we can.And it is free-cost for the installing & training for you
