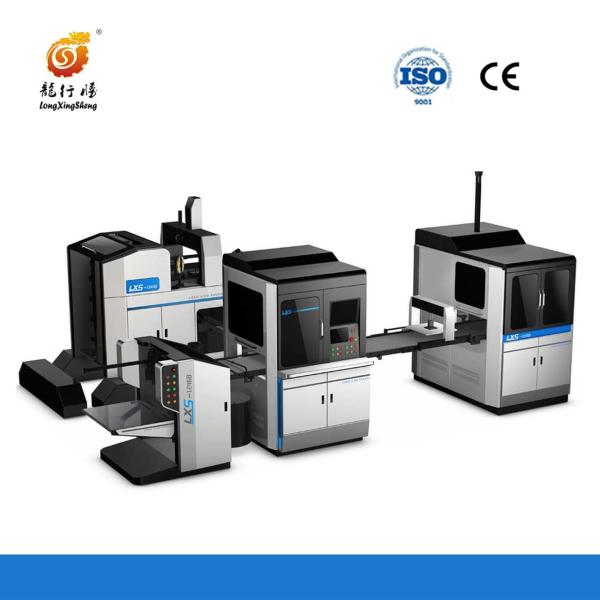

Automatic Smart Rigid Box Making Machine Cardboard Box Wrapping / Package System
Automatic Smart Rigid Box Making Machine Cardboard Box Wrapping / Package System
Specifications
Brand Name :
Longxingsheng
Model Number :
LS-1246B
Certification :
CE/ISO-9001
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 Sets per month
Delivery Time :
7-30 workdays
Packaging Details :
with film, paper and wooden crates
Products Name :
Automatic Smart Rigid Box Making Machine Cardboard Box Wrapping & Package System
Max Paper Size :
L800*W600mm
Min Paper Size :
L135*W100mm
Box Length :
80-600mm
Box Width :
65-400mm
Box Height :
15-120mm
Paper thickness :
80-350gsm
Heating power :
8 Kw
Description

Automatic Smart Rigid Box Making Machine Cardboard Box Wrapping & Package System

LS-1246B fully automatic intelligent world box making machine is an ideal machine for customers with changing orders. Complete the process of sticking the corner of the box, feeding paper and gluing, positioning the box, wrapping the box, and air pressure at one time.

Thin paper about 500mm high can be stacked on the cardboard stacking table, minimizing downtime and paper feeding time. When loading paper, it is necessary to adjust the position of each part of the mechanism according to the size of the paper.

The console board can be moved up and down with the buttons on the right side of the table (see buttons section for details)

Specs of autoamtic smart rigid box making machine
Type LS-1246B
Paper size(max) L800*W600mm
paper size(min) L135*W100mm
Max cardboard size L760*W560mm
Min cardboard size L120*W100mm
Box size(length) L100-600mm
Box size(width) W60-400mm
Box size(height) H15-120mm
Paper thickness 80-350g/m2
Cardboard thickness 0.8-3mm
Edge folding size 10-90mm
Turn in depth 15-80mm
Working speed 15-25 pcs/min
Motor power 13kw/380v 3phase
Heating power 8kw
Air pressure 40L/min 0.8MPa
Weight of machine 3800kg
Machine dimension L6600*W3800*H3000mm

Machine advantages
Quickly job setting
No need to change tuck in blade
Make high-end boxes
Special pick up and wrapping system
Can use the carton paper to wrap the inner box
Suitable for changeable orders
Such as 7,000 pcs for one order
Main features:
1. Double Germany cameras (1000 pixels)
2. Mitsubishi servo motor
3. Panasonic PLC
4. Anti-leaking gluing system
5. Servo motor feeding system
6. One forming part.
7. Whole machine require working in stable working environment. Such as air contioner room.
Price vary with raw material cost, please contact our sales for latest prices.
Working range of LS-1246B
Automatic Smart Rigid Box Making Machine Cardboard Box Wrapping / Package System
Working process
Automatic Smart Rigid Box Making Machine Cardboard Box Wrapping / Package System
Automatic Smart Rigid Box Making Machine Cardboard Box Wrapping / Package System Machine setting time: Short in 45 minutes
Automatic Smart Rigid Box Making Machine Cardboard Box Wrapping / Package System
Intelligent setting page
Automatic Smart Rigid Box Making Machine Cardboard Box Wrapping / Package System
Machine parts
Dongguan Longxingjian Intelligent Equipment Co., Ltd,

Our company was established on 2006-01-26. The company's address is located in Room 102, Building 2, No. 3, Chuangye Road, Bajiaowo, Wanjiang Street, Dongguan City, Guangdong Province.
We have an independent R&D department. Up to now, we have obtained more than 20 patents including utility patents, appearance patents and technical patents. We are specialized in the research, development, manufacture and sale of post-press machinery for more than 15 years. Slotting machine series and hard box forming series are our main products.

We have an independent R&D department. Up to now, we have obtained more than 20 patents including utility patents, appearance patents and technical patents. We are specialized in the research, development, manufacture and sale of post-press machinery for more than 13 years. Slotting machine series and hard box forming series are our main products.

Our advantages
Certificates: ISO9001-2008, Quality management system, CE certificate.
Mission & Vision: Provide smart modular for packaging.
Products scope: Automatic rigid box making machine. V grooving machine. Visual positioning machine. Rigid box former. Corner pasting machine. Gluing machine and other machinery.
Market positioning: Middle and high-end market
