Sweet Rigid Box Making Machine 320gsm Carton Box Manufacturing Machine 110mm 550mm
Sweet Rigid Box Making Machine 320gsm Carton Box Manufacturing Machine 110mm 550mm
Sweet Rigid Box Making Machine 320gsm Carton Box Manufacturing Machine 110mm 550mm
Sweet Rigid Box Making Machine 320gsm Carton Box Manufacturing Machine 110mm 550mm
Sweet Rigid Box Making Machine 320gsm Carton Box Manufacturing Machine 110mm 550mm
Sweet Rigid Box Making Machine 320gsm Carton Box Manufacturing Machine 110mm 550mm
Sweet Rigid Box Making Machine 320gsm Carton Box Manufacturing Machine 110mm 550mm
Sweet Rigid Box Making Machine 320gsm Carton Box Manufacturing Machine 110mm 550mm
Specifications
Brand Name :
Longxingsheng
Model Number :
LS-1246D
Certification :
CE/ISO-9001
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 Sets per month
Delivery Time :
7-30 workdays
Packaging Details :
with film, paper and wooden crates
Products Name :
Automatic Smart High Speed Rigid Sweet Food Preium Box Making Machine With Visual Positioning
Box Length :
110-550mm
Box Width :
80-351mm
Box Height :
19-120mm
Positioning accuracy :
0.07mm
Weight :
4250KG
Condition :
New
Warranty :
1 Year
Paper thickness :
80-320gsm
Cardboard thickness :
0.8-3.2mm
Description

Automatic Smart High Speed Rigid Sweet Food Preium Box Making Machine With Visual Positioning

With the development of technology, we have applied the lastest technology, double camera, robotic arm visual positioning, automatic box setting. As increasing of rigid box market, it have meet the situation that more and more orders and few experienced engineer of machine operating. It is the reason why we developing the LS-1246D, for high speed and intelligent setting.

With the developing of print and packing production, more customer are seeking for an automatic rigid box making machine with higher speed and intelligent setting. So that the workers can focus on the rigid box quality production not in quantity.

The LS-1246D is best choice machine for rigid box, cardboard box, cosmetic box, ring box, shoe box, lip and bottom box, jewelrry box, phone box prodcution.

Specs of autoamtic smart rigid box making machine
Type LS-1246D
Paper size(max) L800*W600mm
paper size(min) L135*W100mm
Max cardboard size L760*W560mm
Min cardboard size L120*W100mm
Box size(length) L100-600mm
Box size(width) W60-400mm
Box size(height) H15-120mm
Paper thickness 80-350g/m2
Cardboard thickness 0.8-3mm
Edge folding size 10-90mm
Turn in depth 15-80mm
Working speed 15-45 pcs/min
Motor power 13kw/380v 3phase
Heating power 8kw
Air pressure 40L/min 0.8MPa
Weight of machine 4300kg
Machine dimension L6600*W4200*H3000mm

Machine advantages
Quickly job setting
Without change air pressing plate
Without change tuck in blade
Fixed camera for size changing, quick job changing
Make high-end boxes
Special pick up and wrapping system
Can make big size box, such as 600*400mm, and the height can reach 120mm
Storage(memory) function for sizes setting
Suitable for changeable orders
Such as 10,000 pcs for one order
Main features:
1. Automatic setting function.
2. Storage function for the positioning part, easy to adjustment
3. Robotic arm (Yamaha, Mitsubishi, Delta)
4. Double Germany cameras (1000 pixels)
5. Mitsubishi servo motor
6. Panasonic PLC
Price vary with raw material cost, please contact our sales for latest prices.
Sweet Rigid Box Making Machine 320gsm Carton Box Manufacturing Machine 110mm 550mm Machine setting time: Short in 45 minutes
Sweet Rigid Box Making Machine 320gsm Carton Box Manufacturing Machine 110mm 550mm
Intelligent setting page
Sweet Rigid Box Making Machine 320gsm Carton Box Manufacturing Machine 110mm 550mm

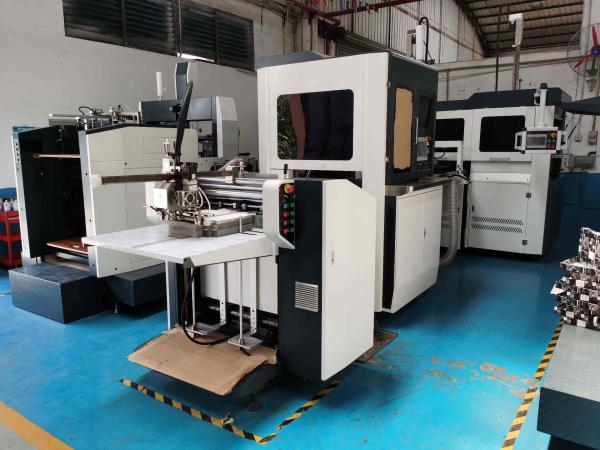

Machine parts
About our company
Sweet Rigid Box Making Machine 320gsm Carton Box Manufacturing Machine 110mm 550mm
Dongguan Longxingjian Intellighent Equipment Co.,Ltd is located in the famousmanufacturing city - Dongguan City,China. Our former company name is Dongguan Longxingsheng machinery CO.,Ltd. We are the leader & professional manufacturer of Automatic/semi-auto rigid box maker which is for for making varies rigidbox ,such as cardboard boxes, luxury boxes, jewelry boxes,calendar, gift boxes, sweet boxes,shoes boxes, watch boxes, mobile phone boxes, high-end boxes and etc. Our company has been established since 2006.With years experience of machinery's development,manufacturing & selling,our products are with high quality & enjoy very good reputation in global market,especially in Europe,Asia,Mid-east and America. We are much appreciated & treasure our customers' trusting & supporting, and we will always keeping providing high quality products & good after-sales service to you.
Our advantages
Certificates: ISO9001-2008, Quality management system, CE certificate.
Mission & Vision: Provide smart modular for packaging.
Products scope: Automatic rigid box making machine. V grooving machine. Visual positioning machine. Rigid box former. Corner pasting machine. Gluing machine and other machinery.
Market positioning: Middle and high-end market
Major market: America, Europe, Asia, Mid-east.
