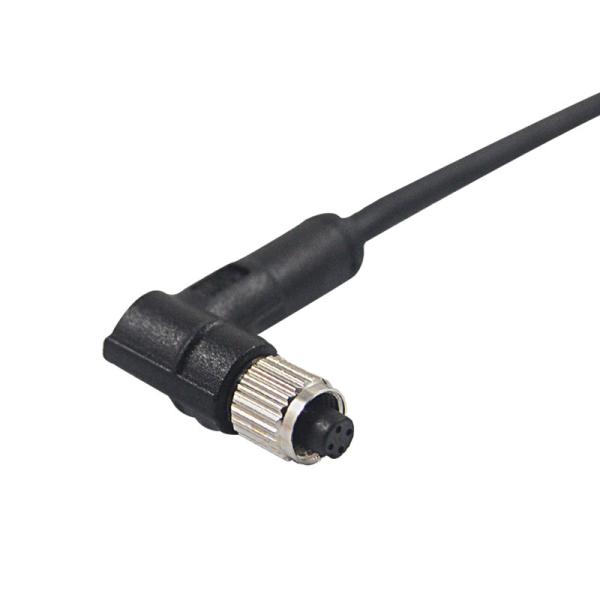

PA66 M5 Female Molded Cable Connector 4 Pin Ip68 A Coding TPU
PA66 M5 Female Molded Cable Connector 4 Pin Ip68 A Coding TPU
PA66 M5 Female Molded Cable Connector 4 Pin Ip68 A Coding TPU
PA66 M5 Female Molded Cable Connector 4 Pin Ip68 A Coding TPU
PA66 M5 Female Molded Cable Connector 4 Pin Ip68 A Coding TPU
PA66 M5 Female Molded Cable Connector 4 Pin Ip68 A Coding TPU
PA66 M5 Female Molded Cable Connector 4 Pin Ip68 A Coding TPU
PA66 M5 Female Molded Cable Connector 4 Pin Ip68 A Coding TPU
Specifications
Brand Name :
RIGOAL
Model Number :
m5 molded cable
Certification :
CE，ROHS，ISO
Place of Origin :
Shen zhen，China
MOQ :
10
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100000
Delivery Time :
7~14
Packaging Details :
1.Our packaging:each pcs in one PE bag, then put in a small carton. 2.According to customer request.
Color :
black
Application :
Automotive
Type :
Adapter,DIN
Material :
PA66
Product name :
Male Female Waterproof bike Connector
Rated voltage :
250V AC/DC
Rated current :
3A-5A
Usage :
automobile ; excavator; modified cars; hot rod; RV;Radar
Pin :
3pin 4pin
Mating Endurance :
> 500 cycle
Description

Ip68 A Coding M5 Male 90 Degrees 3pin 4pin Molded Cable Connector

PA66 M5 Female Molded Cable Connector 4 Pin Ip68 A Coding TPUPA66 M5 Female Molded Cable Connector 4 Pin Ip68 A Coding TPU

Model Number m5
Place of Origin Shen zhen,China
Brand RIGOAL
Packaging
Description M5waterproof
Rated voltage: 60V
Contact carrier TPU+GF,Black
Screw nut: Brass,CNC,nickel-plated
Protection degree: IP67
Over-molding TPU
Contact: Phosphor bronze
Rated current: 1A
Reference standard: IEC 61076-2-105
Contact: Phosphor bronze
Type: M5 Cable Connector


The M5 connectors provide 3 and 4 position cable cordsets and panel-mounted receptacles. All connectors are either factory PUR/PVC overmolded or supplied with attached wire leads.


Rated temperature:-40°C ~ + 80°C

Wire gauge:0.14mm2(AWG 26)

Insulation resistance:≥100 MΩ
Contact resistance:≤6mΩ
Contacts plating:Au(Gold)

O-ring:FKM/Silicon O-Ring

Impulse voltage:500V

Pollution degree:3

Cable length:0.5m
