Solenoid Valve Connectors Valve Plug Male Base C Type Rectangular Ip65 Waterproof Auto

1. Solenoid valves are used wherever fluid flow has to be controlled automatically

2. They are being used to an increasing degree in the most varied types of plants and equipment

3. The variety of different designs which are available enables a valve to be selected to specifically suit the application in question

4. Solenoid valves are control units which, when electrically energized or de-energized, either shut off or allow fluid flow

5. The actuator takes the form of an electromagnet. When energized, a magnetic field builds up which pulls a plunger or pivoted armature against the action of a spring

6. hen de-energized, the plunger or pivoted armature is returned to its original position by the spring action

7. Solenoid Valve Connectors Connect hydraulic and air-powered valves, motors, pumps, and pressure switches

8. IP65 rated connectors protect against water projected from a nozzle.

9. Solenoid Valve Cables and Connectors Reduce wiring time with over-molded solenoid valve cables available in sizes to fit all NITRA directional solenoid valves

General Details

Contacts: 2+PE 3+PE

Connector design: base

Connector locking system: central bolt

Termination: screw clamp

Wire gauge (mm): min. 0.34 mm², max. 1.5 mm²

Wire gauge (AWG): 18

Upper limit temperature: 100 °C

Lower limit temperature: -20 °C

Electrical values

Rated current (40 °C): 10 A

Rated voltage: 250 V

Rated impulse voltage: 4000 V

Pollution degree: 3

Overvoltage category: III

Insulating material group: III

Volume resistivity: ≤ 15 mΩ

Insulation resistance: ≥ 10¹⁰Ω

EMC compliance: not shielded

Degree of protection: IP65

Mechanical operation: > 50 Mating cycles

Material

Contact material: CuSn (bronze)

Contact plating: Ni (nickel)

Contact body material: PA (UL 94 HB)

Housing material: PA

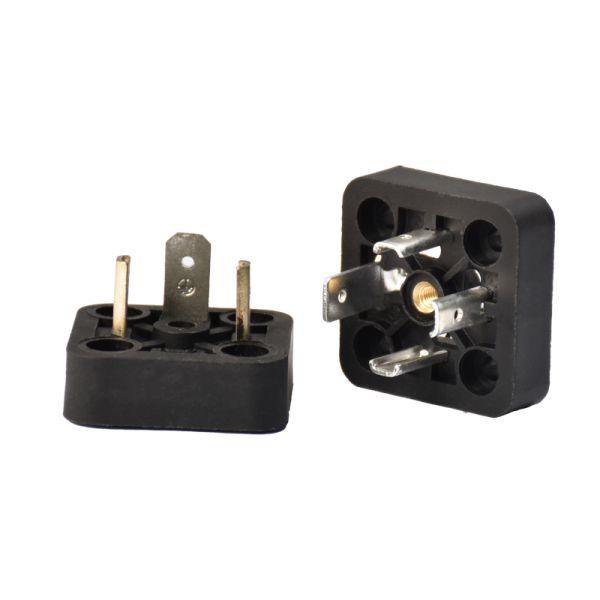

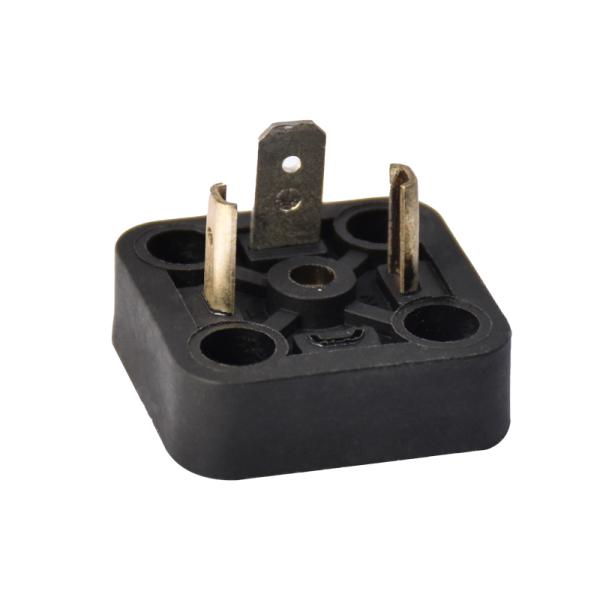

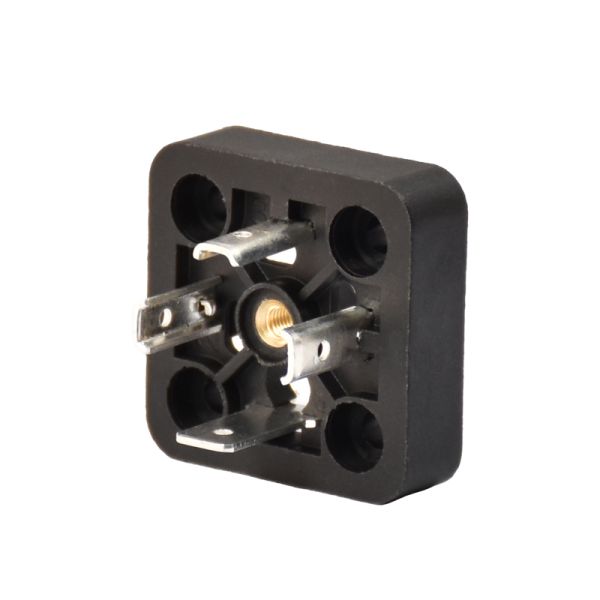

Product Photos

1. Q: What is the necessary information needed for quotation?
A:The series(M5/M8/M10/M12/M23),coding,male or female,pin number,cable length.

2. Q: What is the minimum order quantity(MOQ)?
A:100 pcs or negotiatable.

3. Q: What do the Finecables certifications have?
A: ISO9001:2008, ISO14001, CSA.

4. Q:What does Finecables can provide for the product’ certification?
A: IP67, IP69K, UL, CE and RoHS.
