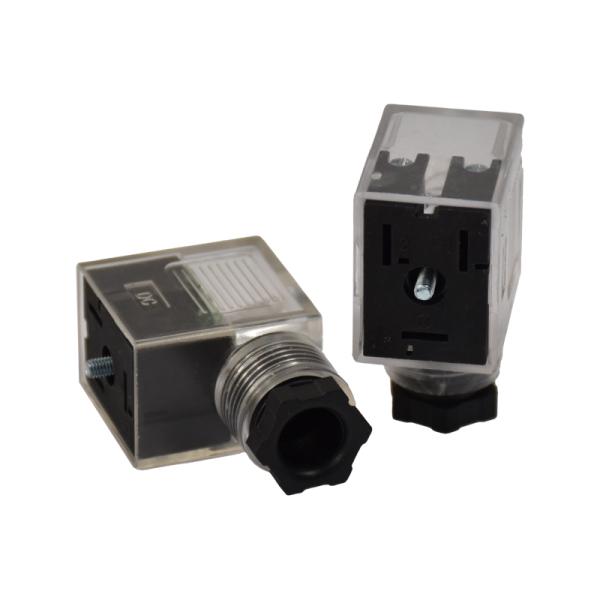

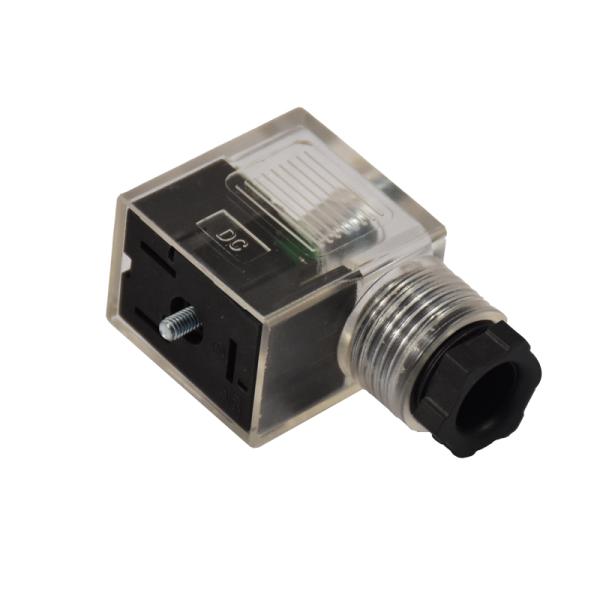

11mm Solenoid Valve Connector Equivalent Waterproof IP65 DIN 43650 EN175301
11mm Solenoid Valve Connector Equivalent Waterproof IP65 DIN 43650 EN175301
11mm Solenoid Valve Connector Equivalent Waterproof IP65 DIN 43650 EN175301
11mm Solenoid Valve Connector Equivalent Waterproof IP65 DIN 43650 EN175301
11mm Solenoid Valve Connector Equivalent Waterproof IP65 DIN 43650 EN175301
11mm Solenoid Valve Connector Equivalent Waterproof IP65 DIN 43650 EN175301
11mm Solenoid Valve Connector Equivalent Waterproof IP65 DIN 43650 EN175301
11mm Solenoid Valve Connector Equivalent Waterproof IP65 DIN 43650 EN175301
Specifications
Brand Name :
Rigoal
Model Number :
LED Solenoid Valve Connector B
Certification :
CE
Place of Origin :
China
MOQ :
100pcs
Price :
negotiable
Supply Ability :
30000pcs per week
Delivery Time :
7-10days
Packaging Details :
55*43*33CM/CTN, 100PCS/CTN
Contacts :
2+PE
Connector design :
female connector
Degree of protection :
IP65
Contact material :
CuSn ( Bronze )
Contact plating :
Ni (nickel)
Appliation :
Power
Termination :
screw clamp
Rated current (40 °C) :
10A
LED :
Avaliable
Distance :
11mm
Description

Solenoid Valve Connectors Equivalent Waterproof DIN 43650/EN175301 Female Industrial

1. Rigoal offers a wide range of solenoid valve connectors with available stock for immediate delivery at extremely favorable prices

2. The product lines have covers EN 175301-803 DIN43650 Form A / B / C and other special styles.

3. The solenoid valve connectors are normally used to supply power to solenoid valves, which widely used in:

* Hydraulic

* Pneumatic

* Electrical Appliance industry

4. Our Solenoid Valve Connectors meet the DIN 43650 Industry Standard and are ideal for providing power and protection.

General Details

Contacts: 2+PE

Connector design: female connector (panel mount)

Connector locking system: central bolt

Termination: screw clamp

Wire gauge (mm): min. 0,34 mm², max. 1,5 mm²

Wire gauge (AWG): min. AWG 22, max. AWG 16

Cable outlet: 6.0 - 8.0 mm

Upper limit temperature: 120 °C

Lower limit temperature: -30 °C

Electrical values

Rated current (40 °C): 10 A

Rated voltage: 250 V

Rated impulse voltage: 4000 V

Pollution degree: 3

Overvoltage category: III

Insulating material group: III

Volume resistivity: ≤ 15 mΩ

Insulation resistance: ≥ 10¹⁰Ω

EMC compliance: not shielded

Degree of protection: IP65

Mechanical operation: > 50 Mating cycles

Material

Contact material: CuSn (bronze)

Contact plating: Ni (nickel)

Contact body material: PA (UL 94 HB)

Housing material: PA

Product Name DIN 43650 Connector
DIN Type DIN 43650 Form B
Max Conductor Section 3x1.5mm²
Working Voltage AC380V, DC300V
Install Screw M3x30

Component part drawing

11mm Solenoid Valve Connector Equivalent Waterproof IP65 DIN 43650 EN175301

Product Photos

11mm Solenoid Valve Connector Equivalent Waterproof IP65 DIN 43650 EN175301

11mm Solenoid Valve Connector Equivalent Waterproof IP65 DIN 43650 EN175301

11mm Solenoid Valve Connector Equivalent Waterproof IP65 DIN 43650 EN175301

Solenoid Valve Connector Series

11mm Solenoid Valve Connector Equivalent Waterproof IP65 DIN 43650 EN175301
