3 Pin Female Solenoid Valve Connector Form B IEC Standard
3 Pin Female Solenoid Valve Connector Form B IEC Standard
3 Pin Female Solenoid Valve Connector Form B IEC Standard
3 Pin Female Solenoid Valve Connector Form B IEC Standard
3 Pin Female Solenoid Valve Connector Form B IEC Standard
3 Pin Female Solenoid Valve Connector Form B IEC Standard
Specifications
Brand Name :
Rigoal
Model Number :
solenoid valve connector form B
Certification :
CE, TUV , Rohs
Place of Origin :
China
MOQ :
1000
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
3000per week
Delivery Time :
10-15days
Packaging Details :
PE bag and Carton
Contacts :
2+PE
Degree of protection :
IP65
Type :
Type B with LED
PIN Number :
3PINS
EMC compliance :
not shielded
Contact material :
CuSn (bronze)
Contact body material :
PA
Contact plating :
Ni
Connector Gender :
female
Application :
Power
Description

Solenoid Valve Connector IEC Standard 3 Pin Female Solenoid Valve Waterproof Connector

Production description

1. Our product lines have covers DIN43650 Form A / B / C and other special styles.

2. The solenoid valve connectors are normally used to supply power to solenoid valves, which are widely used in:
* Hydraulic
* Pneumatic
* Electrical Appliance industry

3. a wide range of solenoid valve connectors with available stock for immediate delivery at extremely favorable prices.

4. Wide range of DIN43650 Industry standard form A/B/C types, special on request

5. A variety shell color: black, brown and transparent, gray

6. A range of options include 24V, 110V and 230V operation, LED indication, and models with or without surge suppression.

7. Solenoid valves are used wherever fluid flow has to be controlled automatically

8. The variety of different designs which are available enables a valve to be selected to specifically suit the application in question

9. We specialize in interconnection devices, electronic timers, proximity sensors, modules and specialty electronic devices

Material

Contact material: CuSn (bronze)

Contact plating: Ni (nickel)

Contact body material: PA

Housing material: PA

Pin number: 2+PE

Coding: B with LED

Product Data
Rated current 10A
Rated voltage 250V
Operating Temperature -30℃~120 ℃
Connector locking system Screw
Mechanical operation >500 mating cycles
Contact resistance ≤15mΩ
Contact material CuSn (bronze)
Housing material PA
EMC compliance not shielded

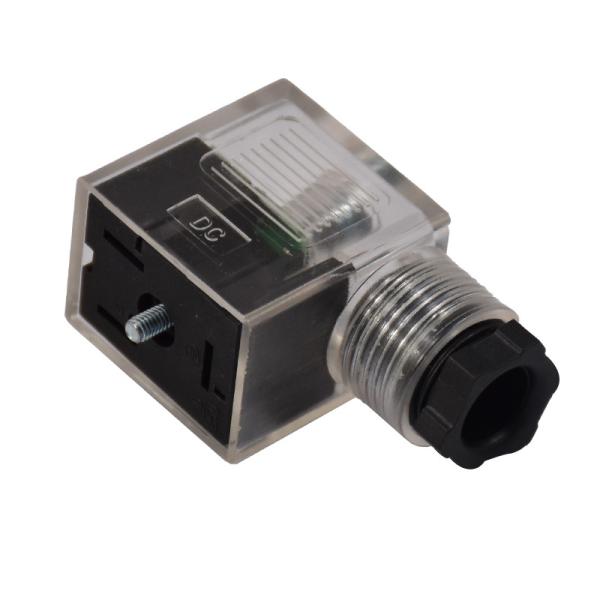

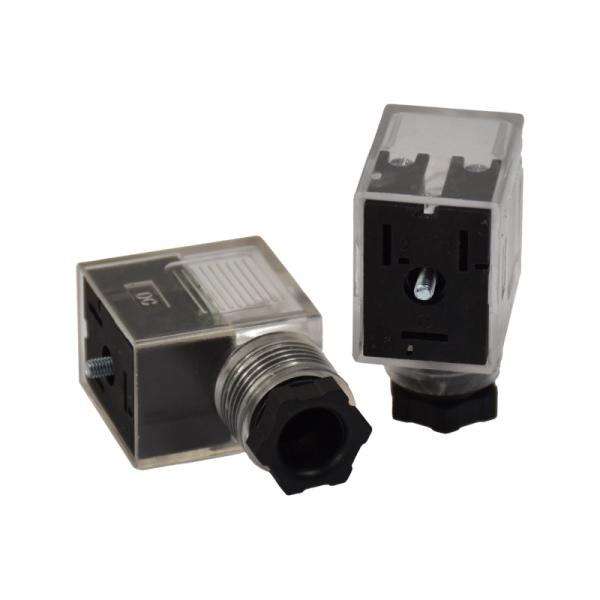

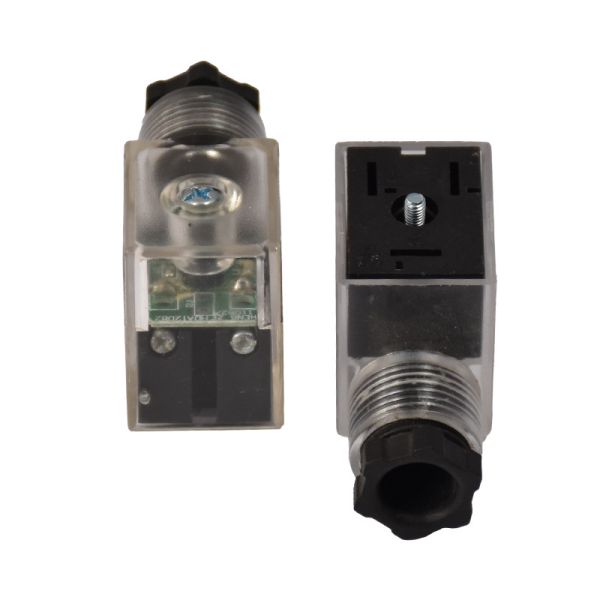

Product photos

3 Pin Female Solenoid Valve Connector Form B IEC Standard

3 Pin Female Solenoid Valve Connector Form B IEC Standard

3 Pin Female Solenoid Valve Connector Form B IEC Standard

3 Pin Female Solenoid Valve Connector Form B IEC Standard

Quality statement:

● Screws/nuts materials: brass with nickel plating, CNC parts

● Male contacts materials: brass with gold plating, machined solid pin

● Female contacts materials: phosphor bronze with gold plating, machined solid pin

● Protection degrees: IP67/IP68 in locked status

● RoHS Directive-compliant

Rigoal-----Your Best Connection!
