Solenoid Valve Connectors Waterproof Female Valve Cable Socket With Molded-Onlead

Product information

1. Form A connectors are currently available in PG 9, PG 11, M16, or 1/2" NPT thread sizes.

2. Form B features PG 9 or 1/2" NPT threads, while Form C connectors are only available with PG 7 thread.

3. DIN 43650 refers to the set of standards made by DIN (Deutsches Institut fur Normung), which is the German standard setting organization.

4. High quality solenoid valve connectors and over-molded solenoid cables for pneumatic solenoid air valves

5. DIN 43650A standard connectors can be rotated in 90 degree intervals according to the coil pin orientation

General Details

Contacts: 2+PE

Connector design: female connector (panel mount)

Connector locking system: central bolt

Termination: screw clamp

Wire gauge (mm): min. 0,34 mm², max. 1,5 mm²

Wire gauge (AWG): min. AWG 22, max. AWG 16

Cable outlet: 6.0 - 8.0 mm

Upper limit temperature: 120 °C

Lower limit temperature: -30 °C

Electrical values

Rated current (40 °C): 10 A

Rated voltage: 250 V

Rated impulse voltage: 4000 V

Pollution degree: 3

Overvoltage category: III

Insulating material group: III

Volume resistivity: ≤ 15 mΩ

Insulation resistance: ≥ 10¹⁰Ω

EMC compliance: not shielded

Degree of protection: IP65

Mechanical operation: > 50 Mating cycles

Material

Contact material: CuSn (bronze)

Contact plating: Ni (nickel)

Contact body material: PA (UL 94 HB)

Housing material: PA

Component part drawing

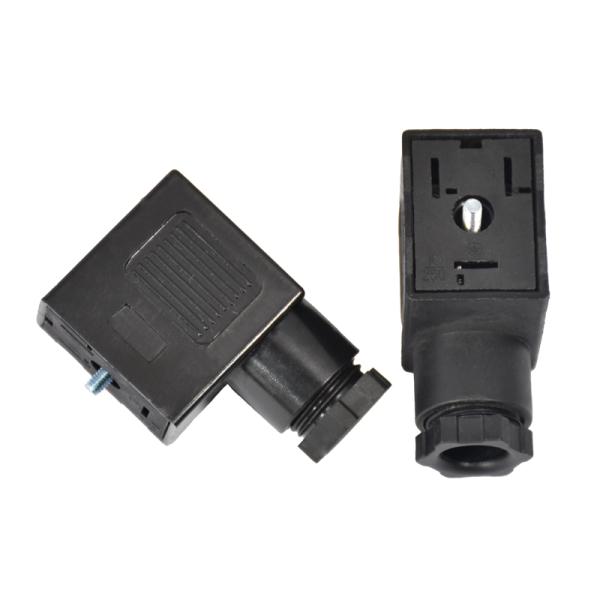

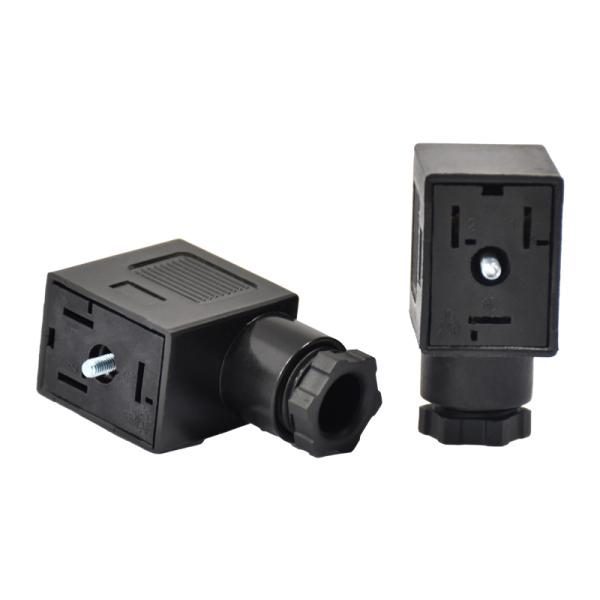

Product Photos

Rigoal is now manufacturing the whole range of M5,M8,M12,M16,M23 7/8" waterproof connector and normalized Din 43650 rectangular connectors type A,B,C, both to be cabled and molded,with or without electrinic components.The connection products are widely sed in field bus components,Ethernet,solenoid valves,pressure sitches,motors-control,protoelectric barries,flow monitoring devices,proximity switches,and sensors in the hydraulic,pneumatic and automation industries.
