250V 10A Solenoid Valve Connector A Type 3+PE Plug To M12 4 Pin Male Connector With Cable
250V 10A Solenoid Valve Connector A Type 3+PE Plug To M12 4 Pin Male Connector With Cable
250V 10A Solenoid Valve Connector A Type 3+PE Plug To M12 4 Pin Male Connector With Cable
250V 10A Solenoid Valve Connector A Type 3+PE Plug To M12 4 Pin Male Connector With Cable
Specifications
Brand Name :
Rigoal
Model Number :
m12 to solenoid valve connector
Certification :
CE
Place of Origin :
China
MOQ :
100pcs
Price :
negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
30000pcs per week
Delivery Time :
7-10days
Packaging Details :
55*43*33CM/CTN, 100PCS/CTN
Contacts :
3+PE
Connector design :
Male Connector
Termination :
Screw Clamp
Degree of protection :
IP65
Contact material :
CuSn (bronze)
Contact plating :
Ni (nickel)
Housing material :
PA
Rated current (40 °C) :
10A
Rated voltage :
250 V
Connector type :
M12 to solenoid valve connector
Description

Solenoid Valve Connector A Type 3+PE Plug To M12 4pins Male Connector With Cable

General Details

Contacts: 3+PE/2+PE

Connector design: male connector

Connector locking system: central bolt

Termination: screw clamp

Wire gauge (mm): min. 0,34 mm², max. 1,5 mm²

Wire gauge (AWG): min. AWG 22, max. AWG 16

Cable outlet: 6,0 - 8,0 mm

Upper limit temperature: 120 °C

Lower limit temperature: -30 °C

Electrical values

Rated current (40 °C): 10 A

Rated voltage: 250V

Rated impulse voltage: 4000V

Pollution degree: 3

Overvoltage category: III

Insulating material group: III

Volume resistivity: ≤ 15 mΩ

Insulation resistance: ≥ 10¹⁰Ω

EMC compliance: not shielded

Degree of protection: IP65

Mechanical operation: > 50 Mating cycles

Material

Contact material: CuSn (bronze)

Contact plating: Ni (nickel)

Contact body material: PA (UL 94 HB)

Housing material: PA

Component part drawing

250V 10A Solenoid Valve Connector A Type 3+PE Plug To M12 4 Pin Male Connector With Cable

Connector type m12 to selnoid valve connector
Contacts 3+PE / 4PINS
Gender male
Degree of protection IP65
Size of tail PG7 or PG9

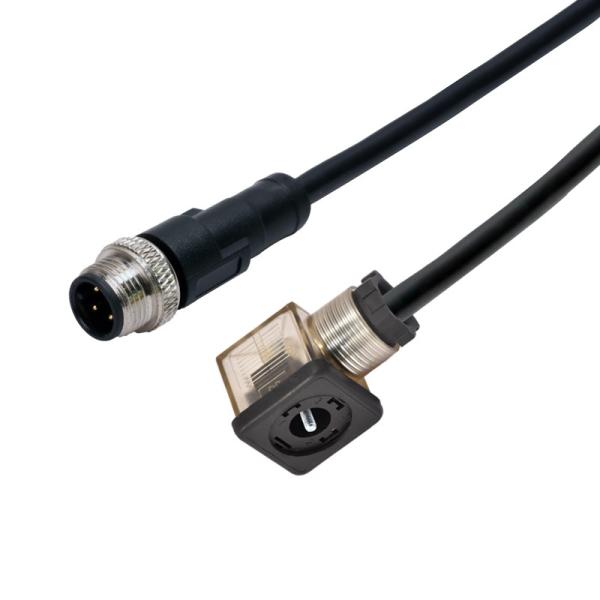

Product photos

250V 10A Solenoid Valve Connector A Type 3+PE Plug To M12 4 Pin Male Connector With Cable

250V 10A Solenoid Valve Connector A Type 3+PE Plug To M12 4 Pin Male Connector With Cable

250V 10A Solenoid Valve Connector A Type 3+PE Plug To M12 4 Pin Male Connector With Cable

FAQ

Q1. What kind of connectors you could supply?

A: M8, M12, M16, M23, Industrial waterproof connector, weipu connector, solenoid valve connector etc, also can customized based on buyer's requirements as long as tell us your details

Q2: How can I get a connector’s sample?

Sample in stock is free; you just need to pay shipping cost.

Q3: Is it OK to print my Logo on the product?

A: Yes, OEM/ODM service is available.

Q4: How to contact us?

A: contact us with email/whatsapp/wechat

Q5: How to deliver the goods?
A: DHL, UPS, TNT, FedEx, Aramex, Postal parcel and forwarder are acceptable.
