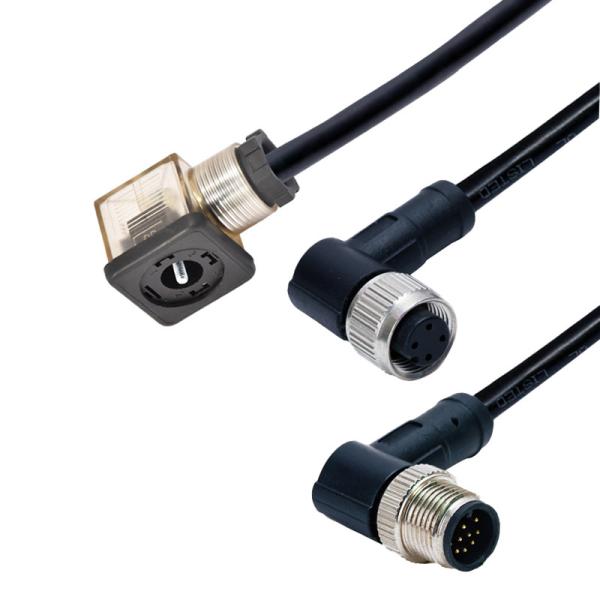

16A Solenoid Valve Connector LED And M12 Male 9 Pins Right Angle Connector With Cable
16A Solenoid Valve Connector LED And M12 Male 9 Pins Right Angle Connector With Cable
16A Solenoid Valve Connector LED And M12 Male 9 Pins Right Angle Connector With Cable
16A Solenoid Valve Connector LED And M12 Male 9 Pins Right Angle Connector With Cable
Specifications
Brand Name :
Rigoal
Model Number :
m12 to 43650 A
Certification :
CE
Place of Origin :
China
MOQ :
100pcs
Price :
negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
30000pcs per week
Delivery Time :
7-10days
Packaging Details :
55*43*33CM/CTN, 100PCS/CTN
Poles :
3+PE
Connector design :
M12 And DIN 43650
Termination :
Screw
IP Rating :
IP65
Housing material :
PA
Contact material :
CuSn (bronze)
Rated current (40 °C) :
10 A
Contact plating :
Ni (nickel)
Rated voltage :
250V
Connector type :
M12 To Solenoid Valve Connector
Description

Solenoid Valve Connector DIN A LED And M12 Male 9pins Right Angle Connector With Cable

General Details

Poles: 2+PE 3+PE

Standard: DIN EN 175-301-803-A

Rated current: 16A

Rated voltage: 250V

Operation temperature:-40°c~+125°c

Insulation resistance:>20MΩ

Contact resistance: ≤4MΩ

Top cover: PC

Bottom cover: PA+GF

Contact: PS with silver plating

Screw: steel with Zn plating

Suitable for waterproof connector:

Suitable cable: 4.5~7.0 mm2

Connector locking system: central bolt

Termination: screw

Wire gauge (mm): min. 0,34 mm², max. 1,5 mm²

Wire gauge (AWG): min. AWG 22, max. AWG 16

Cable outlet: 6,0 - 8,0 mm

Electrical values

Rated current (40 °C): 10 A

Rated voltage: 250 V

Rated impulse voltage: 4000 V

Pollution degree: 3

Overvoltage category: III

Insulating material group: III

Volume resistivity: ≤ 15 mΩ

Insulation resistance: ≥ 10¹⁰Ω

EMC compliance: not shielded

Degree of protection: IP65

Mechanical operation: > 50 Mating cycles

Material

Contact material: CuSn (bronze)

Contact plating: Ni (nickel)

Contact body material: PA (UL 94 HB)

Housing material: PA

Solenoid Valve A Component part drawing

16A Solenoid Valve Connector LED And M12 Male 9 Pins Right Angle Connector With Cable

M12 Technical data PUR Cable PVC Cable
Nominal current 3A 3A
Rated voltage 30V 30V
Contact resistance <5m Q <5m Q
Pollution degree 3 3
Degree of protection IP67 IP67
Ambient temperature
Cable, fixed installation -40°C. . . +80°C -10°C. . . +70°C
Cable, flexible installation -5°C. . . +80°C -5°C. . . +70°C
Ambient temperature -25°C. . . +90°C -25°C. . . +90°C

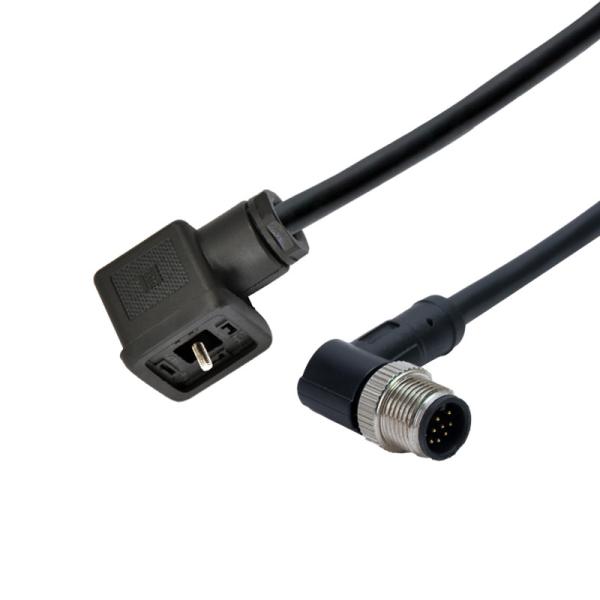

Product photos

16A Solenoid Valve Connector LED And M12 Male 9 Pins Right Angle Connector With Cable

16A Solenoid Valve Connector LED And M12 Male 9 Pins Right Angle Connector With Cable

16A Solenoid Valve Connector LED And M12 Male 9 Pins Right Angle Connector With Cable

FAQ

Q1. What kind of connectors you could supply?

A: M8, M12, M16, M23, Industrial waterproof connector, weipu connector, solenoid valve connector etc, also can customized based on buyer's requirements as long as tell us your details

Q2: How can I get a connector’s sample?

Sample in stock is free; you just need to pay shipping cost.

Q3: Is it OK to print my Logo on the product?

A: Yes, OEM/ODM service is available.

Q4: How to contact us?

A: contact us with email/whatsapp/wechat

Q5: Sample lead time?
A: One week.

Q6: Volume order lead time?
A: 3-4 weeks.
