Female Panel Mount Connector , Shielded Waterproof 6 Pin Connector With Cover
Female Panel Mount Connector , Shielded Waterproof 6 Pin Connector With Cover
Female Panel Mount Connector , Shielded Waterproof 6 Pin Connector With Cover
Female Panel Mount Connector , Shielded Waterproof 6 Pin Connector With Cover
Specifications
Brand Name :
Rigoal
Model Number :
M23 connector
Certification :
CE , Rohs
Place of Origin :
China
MOQ :
100pcs
Price :
negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
5000pcs per week
Delivery Time :
10-15days
Packaging Details :
PE Bags and Carton
Contacts :
6pins
Termination :
Solder
Type :
panel connector
Insert material :
PA66
Cable temperature :
-40℃~+125℃
Shell material :
Copper/Zinc
Overmold Material :
PVC/TPU
Degree of Protection :
IP67
Terminal material :
Phosphor copper
Gender :
female
Description

M23 Connector Female Panel Mount Waterproof Shielded 6pins Connector With Cover

Product description

M23 style electrical connectors are mainly used for connecting electrical drives, encoders, and servo-motors in Industrial applications.

It refers to the thread type used in connecting the cable plug & receptacle.

The M23 connector is versatile due to its robust design, and the combination of power and signal pins built into the design.

M23 circular connectors Signal, power, Industrial Ethernet or hybrid,the circular connectors of the M23 family offer the right solution for every application.

General Details

Contacts: 6 7 9 12 17 19pins

Gender: female

Coupling: Threaded coupling

Termination: solder

Mating cycle:500times

Cable temperature: -25℃~+85℃

Cable diameter:≤Φ6mm~≤Φ8.5mm

Solder inter diameter:1mm~2.5mm

Insulation resistance DC50±10%

Contact resistance(mΩ): 10mΩ at 10mA Max

Material

Material of contact: Brass, gold plated

Contact plating:Au(Gold)

Material of contact body:PA

Connector locking system:Screw

Material of housing:CuZn(Brass nickel plated)

Connector type M23 series
Connector Gender female
Contacts 6pins
Connector locking system solder
Rated current 20A
Rated Voltage

300v

Number of Contacts

Female Panel Mount Connector , Shielded Waterproof 6 Pin Connector With Cover

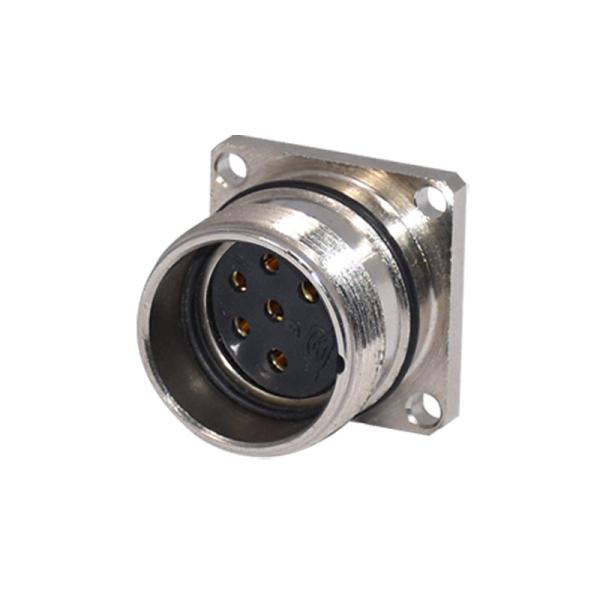

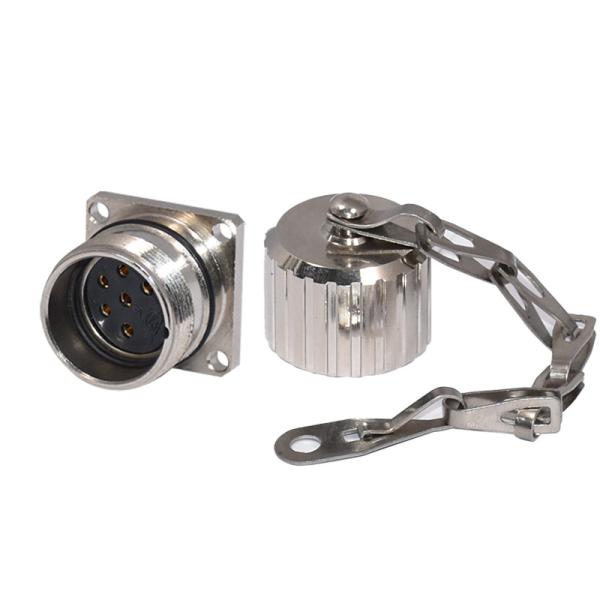

Product photos

Female Panel Mount Connector , Shielded Waterproof 6 Pin Connector With CoverFemale Panel Mount Connector , Shielded Waterproof 6 Pin Connector With Cover

Female Panel Mount Connector , Shielded Waterproof 6 Pin Connector With Cover

FAQ

Q1: Are you a manufacturer?

A1: We are manufacture, we can provide one-stop station service for connectors and cables with factory price.


Q2: How about your quality?

A2: We guaranteed that 100% in good quality, the price will be nicer than other same suppliers.
Q3: After-sales service
A3: All the inquiry will be response within 24 hours, the commucation will be effective.

Q4: Is it customizable?
A4: We offer you with OEM oders but with smaller quantity than others
Q5: Is it avaliabe to get free samples?
A5: Yes, the samples are free to provide, buyers only need to pay for shipping cost.
