5A M16 Circular Connector 6pin Rear Panel Mount Connector 8 pins Male Socket
5A M16 Circular Connector 6pin Rear Panel Mount Connector 8 pins Male Socket
5A M16 Circular Connector 6pin Rear Panel Mount Connector 8 pins Male Socket
5A M16 Circular Connector 6pin Rear Panel Mount Connector 8 pins Male Socket
5A M16 Circular Connector 6pin Rear Panel Mount Connector 8 pins Male Socket
5A M16 Circular Connector 6pin Rear Panel Mount Connector 8 pins Male Socket
Specifications
Brand Name :
Rigoal m16 connector
Model Number :
m16 panel mount connector
Certification :
CE , Rohs
Place of Origin :
China
MOQ :
100pcs
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
10-15days
Packaging Details :
PE bag and Cartons
Contacts :
8Pins
Gender :
Male
Wire gauge(mm) :
max. 0,75 mm2 (max. AWG 20)
Rated voltage :
60 V (32 V)
Rated impulse voltage :
500V
Rated current(40°) :
5A
Contact resistance :
≤ 5 ohm/≤ 3 ohm
Contact plating :
Au (Gold/gold)
Termination :
Screw
Degree of protection :
IP67
Description

M16 Circular Connector IP67 Rear Panel Mount Connector 8pins male Waterproof socket

Product details

Panel mount, assembly connector are avaliable, also can customized based on customer's requirements.

M16 Front Screw Back Panel Mount Socket Connector, waterproof is IP67

Special feature and service can be provided upon requirement.

it is usually widely used on all kinds of outdoor applications, specially for the signal transmission, Medical Equipment,Audio / Video, Test and Measurement, Communications product line.

We guaranteed that 100% in good quality, the price will be reasonal

Connect to minimize induced signal noise.

M16 Circular Metric Connectors are available at Mouser Electronics.

Model Number M16 Housing Material copper alloy
Item circular outdoor connectors Plating nickel
Life cycles 5000 mating Temprature -55°C to+200°C
Contacts 2/3/4/5/6/8pin ip Ranking IP67-IP69

Material details

Gender: male

Wire gauge: max. 0,75 mm2

Material ot contact: CuZn

Contact plating: Au (Gold/gold)

Material of contact body: PBT (UL 94 V-0)

Material of housing: CuZn (brass, nickel plated)

Pollution degree: 1(2)²

Overvoltage categorie: l(II)²

Material group: lll

Upper temperature: + 85 °C

Lower temperature: – 40 °C

Gender male
Cable outlet 4–6 mm (PG 7)/6–8 mm (PG 9)
Contacts of number 8 pins
Rated voltage 60 V (32 V)
Rated impulse voltage 500 V
Rated current 5A
Contact resistance ≤ 5 ohm/≤ 3 ohm
Contact plating Ag Au (Gold/gold)

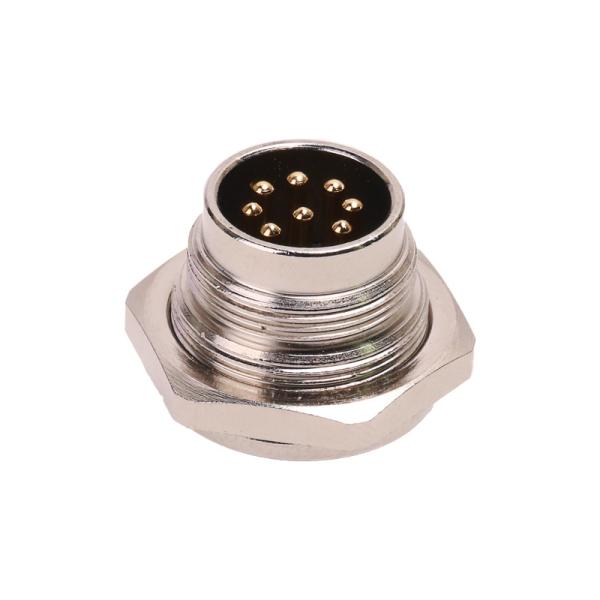

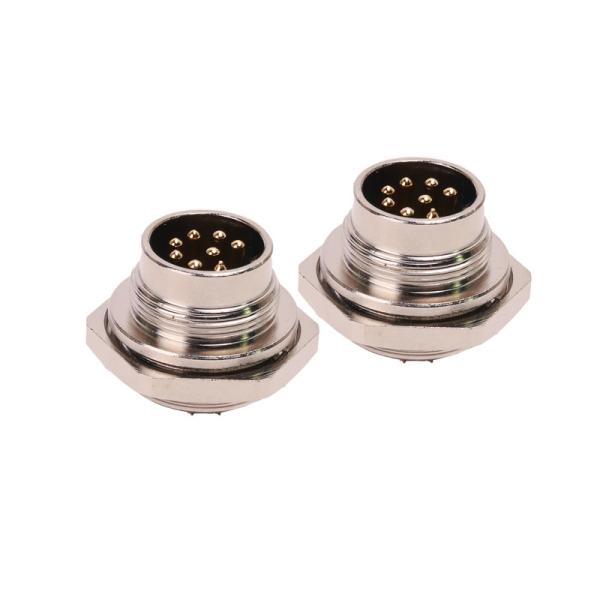

Product Photos

5A M16 Circular Connector 6pin Rear Panel Mount Connector 8 pins Male Socket5A M16 Circular Connector 6pin Rear Panel Mount Connector 8 pins Male Socket5A M16 Circular Connector 6pin Rear Panel Mount Connector 8 pins Male Socket

FAQ

Q1: Why choose us?

A: 100% homemade, competitive price and fast delivery

Q2: How can I get a connector’s sample?

Sample in stock is free; you just need to pay shipping cost.

Q3: How long is your delivery time?

A: Sample is around 5 working days; Mass is 5-15 work days.

Q4. What kind of connectors you could supply?

A: M8, M12, M16, M23, Industrial waterproof connector, weipu connector, solenoid valve connector etc, also can customized based on buyer's requirements as long as tell us your details

Q5: What’s the connector made of?

Material ot contact: CuZn

Contact plating: Au (Gold/gold)

Material of contact body: PBT (UL 94 V-0)

Material of housing: CuZn (brass, nickel plated)

Q6: What are the payment methods?

A: T/T, PayPal, Western Union, Ali trade assurance.

Q7: Is it OK to print my Logo on the product?

A: Yes, OEM/ODM service is available.

Q8: How to deliver the goods?
A: DHL, UPS, TNT, FedEx, Aramex, Postal parcel and forwarder are acceptable.
