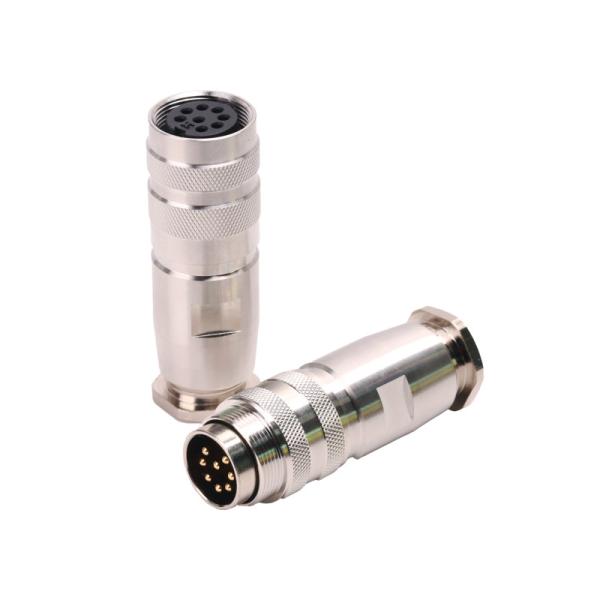

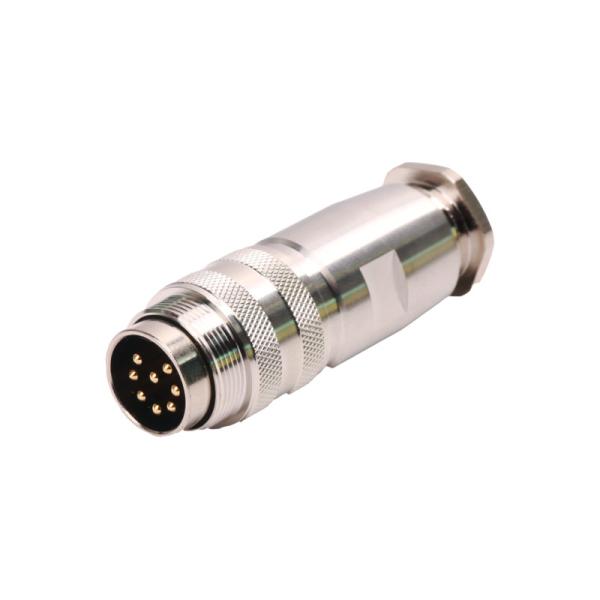

5A Waterproof Metal Connector , IP68 M16 8pins Male Assembly Male Connector With Shielded
5A Waterproof Metal Connector , IP68 M16 8pins Male Assembly Male Connector With Shielded
5A Waterproof Metal Connector , IP68 M16 8pins Male Assembly Male Connector With Shielded
5A Waterproof Metal Connector , IP68 M16 8pins Male Assembly Male Connector With Shielded
5A Waterproof Metal Connector , IP68 M16 8pins Male Assembly Male Connector With Shielded
5A Waterproof Metal Connector , IP68 M16 8pins Male Assembly Male Connector With Shielded
Specifications
Brand Name :
Rigoal
Model Number :
M16 panel mount connector
Certification :
CE, Rohs , TUV
Place of Origin :
China
MOQ :
100pcs
Price :
negotiable
Supply Ability :
10000pcs per month
Delivery Time :
15-20days
Packaging Details :
PE bag and Cartons
Product name :
M16 panel mount connector
Coupling nut/screw :
Brass with nickel plated
Application :
Sensor or Automation
Standard :
IEC61076-2-101
Contacts :
8pins
Shielding :
avaliable
Contact way :
Screw
IP degree :
IP67 / IP68
Size :
M16
Description

Waterproof Metal IP68 M16 8pins Male Assembly Circular Connector With Shielded

Product description

M16 Circular DIN Connectors are an ideal solution for ensuring that power and signal connections.

These connectors feature screw locking, IP67 degree of protection, robust metal connector, and excellent EMI shielding.

These connectors are ideal for harsh environments and industrial applications.

  • Screw locking compliant with DIN EN 61076-2-106
  • IP67 degree of protection
  • Robust metal connector
  • Excellent EMI shielding
  • Pole variants from 3 to 12

Quick Details

Contacts: 8pins

Coupling: Threaded coupling

Termination: Solder

Mating cycle:500times

Cable temperature: -40℃~+85℃

Cable diameter:4–6 mm (PG 7)/6–8 mm (PG 9)

Rated current:5A

Rated voltage:60 V (32 V)

Wire gauge:max. 0,75 mm2 (max. AWG 20)

Insulation resistance(mΩ) at DC500V: 1000~1500

Contact resistance(mΩ) :≤ 5 mΩ/≤ 3 mΩ

Solder up mouth aperture(mm):0.6mm~1mm

Withstanding voltage:500V~1500V

Material group:lll

Overvoltage categorie:l (II) 2

Rated impulse voltage:500V

Material

Material of housing:CuZn (brass, nickel plated)

Material of contact body:PBT (UL 94 V-0)

Contact plating:Ag Au (Gold/gold)

Material ot contact:CuZn

Number of contacts

5A Waterproof Metal Connector , IP68 M16 8pins Male Assembly Male Connector With Shielded

Product Photos

5A Waterproof Metal Connector , IP68 M16 8pins Male Assembly Male Connector With Shielded

5A Waterproof Metal Connector , IP68 M16 8pins Male Assembly Male Connector With Shielded

5A Waterproof Metal Connector , IP68 M16 8pins Male Assembly Male Connector With Shielded

Packaging & Shipping

Usually PE bags and cartons

approval customized based on customers' requirements

MOQ: 100pcs each item

Delivery time: 5-7days after the payment received

Shipment: by Express,by Air, by Sea

Payment terms: 100% TT in Advance

Payment method: T/T, Western Union, Paypal

5A Waterproof Metal Connector , IP68 M16 8pins Male Assembly Male Connector With Shielded

5A Waterproof Metal Connector , IP68 M16 8pins Male Assembly Male Connector With Shielded

5A Waterproof Metal Connector , IP68 M16 8pins Male Assembly Male Connector With Shielded
