M5 Male Straight Molding Circular Waterproof Connector For Sensor
M5 Male Straight Molding Circular Waterproof Connector For Sensor
M5 Male Straight Molding Circular Waterproof Connector For Sensor
M5 Male Straight Molding Circular Waterproof Connector For Sensor
M5 Male Straight Molding Circular Waterproof Connector For Sensor
M5 Male Straight Molding Circular Waterproof Connector For Sensor
Specifications
Brand Name :
Rigoal
Model Number :
M5
Certification :
CE , RoHS
Place of Origin :
China
MOQ :
100pcs
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
10-15 working days
Packaging Details :
PE bag and Cartons
Gender :
male
Type :
molded cable connector
Rated Current :
1A
Rated Voltage :
60V
Application :
Automotive
Shell protection :
IP67/IP68
Contact resistance :
≤10mΩ
Pollution degree :
III
Description

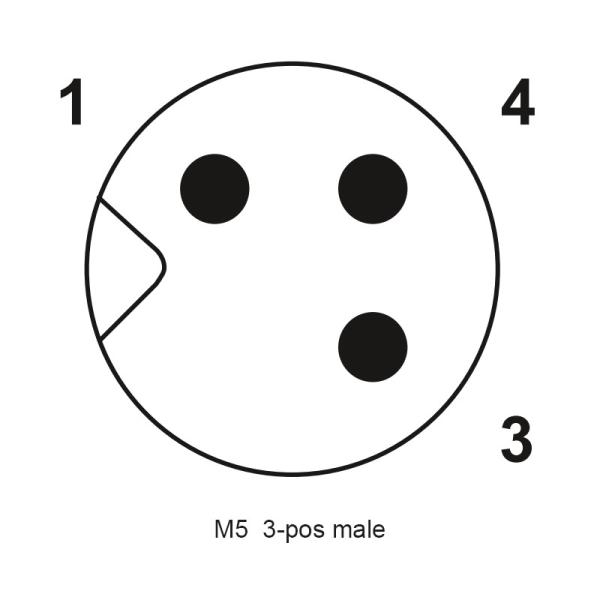

M5 Male Straight Molding Waterproof Cicular Connector For Sensor M5 3pin Screw Connector

Quick details
Wire gauge (AWG): 22AWG / 24AWG
Wire gauge (mm²): 0.34mm² / 0.25mm²
Jacket material: PVC
Ambient Temperature: -25°C ~ +85°C

Insert: PA66+GF
Contacts: Phosphorus copper with gold plated
Screw: Brass with nickel plated
Connector locking system: Screw locking
Mechanical operation: >100 mating cycles
Rated current: 1A
Rated voltag: 60V
Contact resistance: ≤5mΩ
Insulation resistance: ≥100MΩ
Plug body TPU/Black
Coupling nut Brass/Nickel
Contact carrier PA/Black
Pin Brass/Gold
O-ring NBR
IP degree IP67
Insulation ≥10 9Ω
Forward resistance ≤5mΩ
Rated current 1A
Rated voltage 60V
Pollution degree 3
Temperature range -40…80 ℃
Mechanical operation ≥100
Maximum cable diameter 3.8mm
Wire gauge (AWG) 22AWG / 24AWG
Wire gauge (mm²) 0.34mm² / 0.25mm²
Jacket material PVC
Ambient Temperature ‘-25°C ~ +85°C
Insert PA66+GF
Contacts Phosphorus copper with gold plated
Screw Brass with nickel plated
Connector locking system Screw locking
Mechanical operation >100 mating cycles
Rated current 1A
Rated voltag 60V
Contact resistance ≤5mΩ
Insulation resistance ≥100MΩ

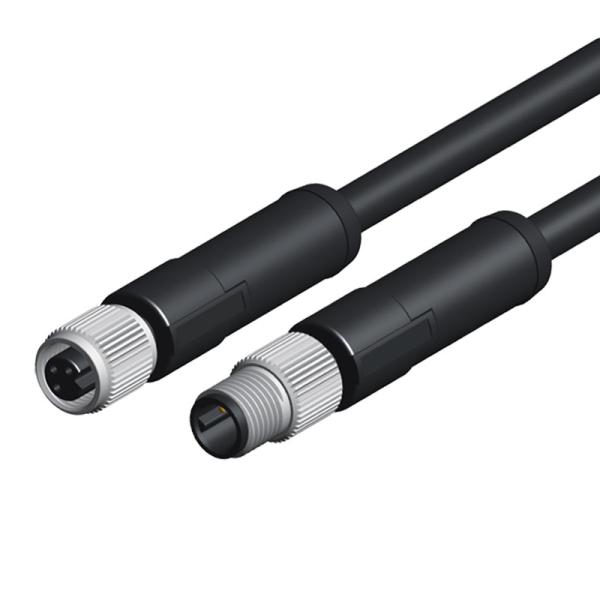

Product photos
M5 Male Straight Molding Circular Waterproof Connector For Sensor
Our service
- Fast Samples delivery service
- Quote within 24 hours
- Professional teams with RD & Sales for your projects
- Special service for your urgent case
- Customer is always our focus.


M5 Male Straight Molding Circular Waterproof Connector For SensorM5 Male Straight Molding Circular Waterproof Connector For Sensor
M5 Male Straight Molding Circular Waterproof Connector For Sensor
