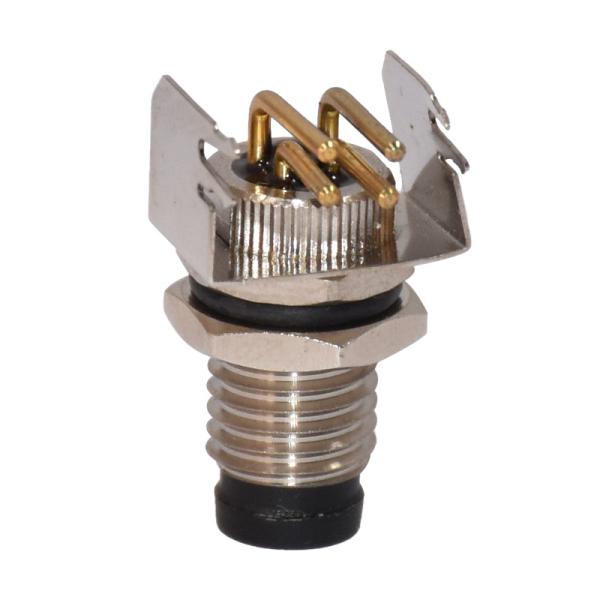

M8 4pins Male Right Angle Panel Mount Metal Connector PCB Mount Socket For Sensor
M8 4pins Male Right Angle Panel Mount Metal Connector PCB Mount Socket For Sensor
M8 4pins Male Right Angle Panel Mount Metal Connector PCB Mount Socket For Sensor
M8 4pins Male Right Angle Panel Mount Metal Connector PCB Mount Socket For Sensor
M8 4pins Male Right Angle Panel Mount Metal Connector PCB Mount Socket For Sensor
M8 4pins Male Right Angle Panel Mount Metal Connector PCB Mount Socket For Sensor
M8 4pins Male Right Angle Panel Mount Metal Connector PCB Mount Socket For Sensor
M8 4pins Male Right Angle Panel Mount Metal Connector PCB Mount Socket For Sensor
Specifications
Brand Name :
Rigoal
Model Number :
M8 panel mount connector
Certification :
CE,RoHS
Place of Origin :
China
MOQ :
100pcs
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000 per week
Delivery Time :
7-10days
Packaging Details :
PE bag and Cartons
Connector design :
m8 male connector
Termination :
solder
Wire gauge :
24
Contacts :
6P
Upper limit temperature :
85 °C
Lower limit temperature :
-40 °C
Rated current :
1.5A
Rated voltage :
30v
Rated impulse voltage :
1500 V
Volume resistivity :
≤ 3 mΩ
Degree of protection :
IP67
Description

M8 4pins Male Right Angle Panel Mount Metal Connector PCB Mount Socket For Sensor

Product description

1. M8 panel mount connector

2. Connector locking system is bolted

3. Termination is solder

4. Wire gauge(mm) is 0.25mm²

5. Wire gage(AWG) 24

6. Cable outlet can be 3,5 - 5,0 mm

7. Temperature will from -40° to +85°

8. Contacts 3.4.5.6.8pins avaliable

General details

Connector Type M8 Panel Mount
Mounting Type Front
Contact Type Male to Solder
Number of Pins 4
Housing Material Nickel Plated Brass
Mating Thread M8
Switch Fixed Nut SW10
Conductor Size 0.25 mm2
Rated Voltage 60V AC/DC
Rated Current 4 Amps
Contact Material Bronze
Contact Surface Material Nickel
O-Ring Material NBR Rubber

Electrical values

Rated current (40 °C) :1.5A/4 A

Rated voltage :30V/60 V

Rated impulse voltage :1500 V

Pollution degree :3

Overvoltage category :III

Insulating material group :III

Volume resistivity :≤ 3 mΩ

EMC compliance :not shielded

Degree of protection :IP67

Mechanical operation :> 100 Mating cycles

Number of Contacts 3 4 5 6 8
Rated voltage 30V 60V
Contact resistance <5mΩ
Insulation resistance <100mΩ
Pollution degree 3
Temperature range 25 °C to 85° C
Degree of protection IP 67 when mated
Mating times 100 cycles
Wire gauge 24AWG 26AWG
Cable jacket PVC or PUR
Material of housing Brass Nickel Plated
Material of insert PA+GF UL9V-0
Material of contact Brass phosohor bronze gold plated

Product photos

M8 4pins Male Right Angle Panel Mount Metal Connector PCB Mount Socket For Sensor

M8 4pins Male Right Angle Panel Mount Metal Connector PCB Mount Socket For Sensor

M8 4pins Male Right Angle Panel Mount Metal Connector PCB Mount Socket For SensorM8 4pins Male Right Angle Panel Mount Metal Connector PCB Mount Socket For Sensor

M8 connector can be used a wide fields like LED, Automation, Sensor, mechanise equipment etc.

• LED lighting , white light , color light etc

• Low current equipement

• Connector be used in narrow environment

• Communication equipement

• Lighting harness

M8 4pins Male Right Angle Panel Mount Metal Connector PCB Mount Socket For Sensor
