Assembly Straight 3pin M8 Waterproof Female Sensor Connector For Automation Machines
Assembly Straight 3pin M8 Waterproof Female Sensor Connector For Automation Machines
Assembly Straight 3pin M8 Waterproof Female Sensor Connector For Automation Machines
Assembly Straight 3pin M8 Waterproof Female Sensor Connector For Automation Machines
Assembly Straight 3pin M8 Waterproof Female Sensor Connector For Automation Machines
Assembly Straight 3pin M8 Waterproof Female Sensor Connector For Automation Machines
Specifications
Brand Name :
Rigoal
Model Number :
M8 assembly connector
Certification :
CE,RoHS
Place of Origin :
China
MOQ :
100
Price :
negotiable
Supply Ability :
10000 per week
Delivery Time :
7-10days
Packaging Details :
PE bag and Cartons
Gender :
female connector
Termination :
solder
Wire gauge :
24
Cable outlet :
3,5 - 5,0 mm
Upper limit temperature :
85 °C
Lower limit temperature :
-40 °C
Rated current :
4 A
Rated voltage :
60 V
Rated impulse voltage :
1500 V
Volume resistivity :
≤ 3 mΩ
Degree of protection :
IP67
Description

Assembly Straight 3pin M8 Waterproof Female Sensor Connector For Automation Machines

Product description

M8 connector is the ideal for environmentally sensitive industrial applications, such as such as sensor, controller, actuator, pressure regulator, stepper motor, driver, and I/O fieldbus,etc.

Quick details

1. M8 assembly connector 4pins male gender

2. Connector locking system is bolted

3. Termination is solder

4. Wire gauge(mm) is 0.25mm²

5. Wire gage(AWG) 24

6. Cable outlet can be 3,5 - 5,0 mm

7. Temperature will from -40° to +85°

8. Contacts 3.4.5.6.8pins avaliable

9. Contact material CuZn (brass)

10. Contact plating Au (gold)

11. Contact body material is PA

12. Housing material is PA

Electrical values

Rated current (40 °C) :4 A

Rated voltage :60 V

Rated impulse voltage :1500 V

Pollution degree :3

Overvoltage category :III

Insulating material group :III

Volume resistivity :≤ 3 mΩ

EMC compliance :not shielded

Degree of protection :IP67

Mechanical operation :> 100 Mating cycles

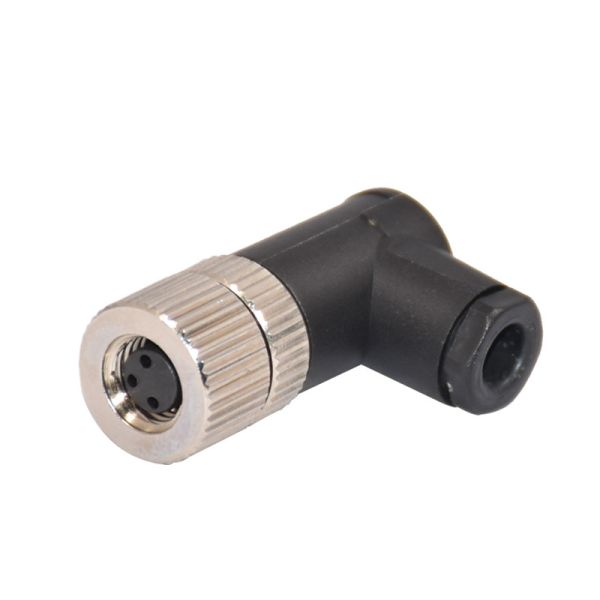

Type of Contact Female Right Angle
Number of Poles 4
Cable Gland M9.5 x 1
Coupling Nut M8 x 1 Brass With Nickel Plated
O-Ring Viton/NBR
Contacts Copper Alloy


Product photos

Assembly Straight 3pin M8 Waterproof Female Sensor Connector For Automation Machines

Assembly Straight 3pin M8 Waterproof Female Sensor Connector For Automation Machines

Assembly Straight 3pin M8 Waterproof Female Sensor Connector For Automation Machines

Assembly Straight 3pin M8 Waterproof Female Sensor Connector For Automation Machines

Assembly Straight 3pin M8 Waterproof Female Sensor Connector For Automation Machines

Packsging & Shipping

1.Our general packing: PE bag and PE bag contons. General Carton size:40*30*30cm

2.Customized according to customer's request

Assembly Straight 3pin M8 Waterproof Female Sensor Connector For Automation Machines

Assembly Straight 3pin M8 Waterproof Female Sensor Connector For Automation Machines

M8 connector can be used a wide fields like LED, Automation, Sensor, mechanise equipment etc.

• LED lighting , white light , color light etc

• Low current equipement

• Connector be used in narrow environment

• Communication equipement

• Lighting harness

Assembly Straight 3pin M8 Waterproof Female Sensor Connector For Automation Machines

Rigoal-----Your Best Connection!
