SP17 3 Pin Panel Mount Connector IP68 Waterproof High Power Female
SP17 3 Pin Panel Mount Connector IP68 Waterproof High Power Female
SP17 3 Pin Panel Mount Connector IP68 Waterproof High Power Female
SP17 3 Pin Panel Mount Connector IP68 Waterproof High Power Female
Specifications
Brand Name :
Rigoal
Model Number :
SP17 panel connector
Certification :
CE,Rohs
Place of Origin :
China
MOQ :
100pcs
Price :
negotiable
Supply Ability :
3000pcs per week
Delivery Time :
10-15days
Packaging Details :
38*32*32cm/CTN, 1000pcs/CTN
Payment Terms :
L/C, T/T, Western Union
Contacts :
3 poles
Connector design :
Weipu 17 connector
Termination :
Solder
Contact material :
Brass with gold plating
Connector Gender :
Female
Degree of protection :
IP68
Mounting type :
butting cable connector
Cable outer diameter range :
GM13: A (4-6.5mm) B (5-8mm)
Connector size :
standard
Temperature range :
-20°C~+80°C
Description

Waterproof Power Connector SP17 High Power Female 3pins Panel Mount Solder Connector

Weipu SP13 17 21 Connectors

WEIPU waterproof connector has SP13 / SP17 / SP21 three specifications of the series, different service voltage.

We can provide what Specifi cations your needs.

That coupled with the IP68 rating excels in harsh environments with a bigger and stronger shell.

It's very flexible when choosing a female connector, the robust connectors can be used for both cable to cable (inline) and cable to panel-mount connections.

All models are highly reliable and excellent quality.

Waterproof Connector plug(male) and socket(female), LED Power wire connector

General Details

Coupling:Threaded

Shell material: Nylon66

Fire resistance: V0
Termination: Solder
Cable outer diameter range: GM13: A (4-6.5mm) B (5-8mm)
IP rating: IP68
Mating cyclc: >500次
Temperature range: -25°C~~+85°C
Insert material: PPS man temperature 260°
Contact material: Brass with gold plating
Current Rating:10A
Contact Gender:female
Housing Material:Plastic

Material

Shell material: Nylon66
Insert material: PPS man temperature 260°
Contact material: Brass with gold plating
Housing Material:Plastic
Connector type Weipu 17 panel mount
Number of cores 3pins
Gender female
Current Rating 10A
Rated Voltage 500v

Number of Contacts

SP17 3 Pin Panel Mount Connector IP68 Waterproof High Power Female

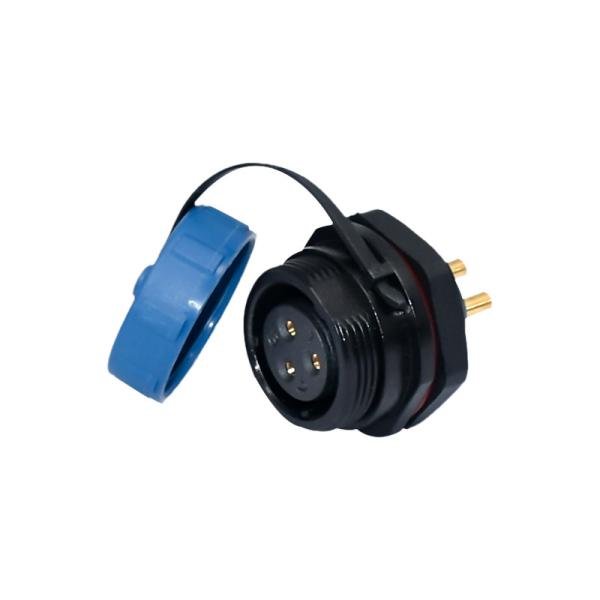

Product photos

SP17 3 Pin Panel Mount Connector IP68 Waterproof High Power Female

FAQ

Q1. What kind of connectors you could supply?

A: M8, M12, M16, M23, Industrial waterproof connector, weipu connector, solenoid valve connector etc, also can customized based on buyer's requirements as long as tell us your details

Q2: How can I get a connector’s sample?

Sample in stock is free; you just need to pay shipping cost.

Q3: How long is your delivery time?

A: Sample is around 5 working days; Mass is 5-15 work days.

Q4: What’s the connector made of?

Material ot contact: CuZn

Contact plating: Au (Gold/gold)

Material of contact body: PBT (UL 94 V-0)

Material of housing: CuZn (brass, nickel plated)

Q5: Why choose us?

A: 100% homemade, competitive price and fast delivery

Q6: Is it OK to print my Logo on the product?

A: Yes, OEM/ODM service is available.
