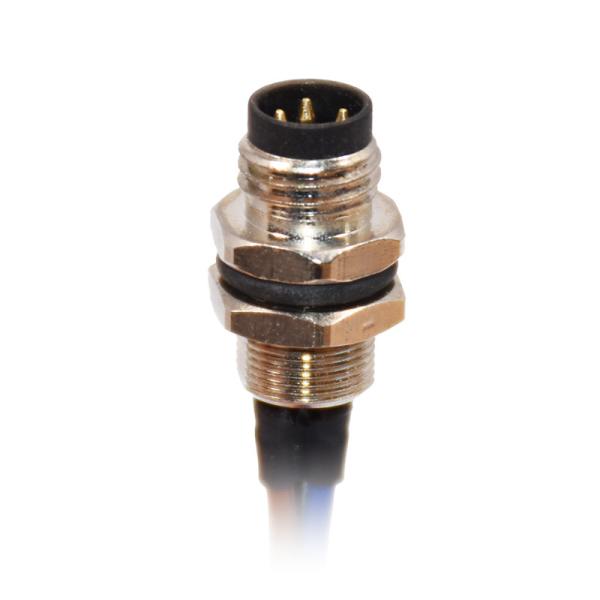

M8 Waterproof Connector Compatible 8pins Panel Mount Circular Connector With Tail

Product description

M8 Series Threaded, Panel Mount, Bulkhead - Rear Side Nut, IP67 - Dust Tight, Waterproof Circular Connectors TE Connectivity AMP Connectors The M8 connector system provides a solution that safely and reliably ensures the communication in industrial environments.

These receptacles can be used to connect cables in sensor, actuator or any other application

A variety of sizes and appearances connector to our customer for easy to use and assemble

Quick details

1. M8 panel mount connector

2. Connector locking system is bolted

3. Termination is solder

4. Wire gauge(mm) is 0.25mm²

5. Wire gage(AWG) 24

6. Cable outlet can be 3,5 - 5,0 mm

7. Temperature will from -40° to +85°

8. Contacts 3.4.5.6.8pins avaliable

Electrical values

Rated current (40 °C) :1.5A/4 A

Rated voltage :30V/60 V

Rated impulse voltage :1500 V

Pollution degree :3

Overvoltage category :III

Insulating material group :III

Volume resistivity :≤ 3 mΩ

EMC compliance :not shielded

Degree of protection :IP67

Mechanical operation :> 100 Mating cycles

Product photos

Packsging & Shipping

1.Our general packing: PE bag and PE bag contons. General Carton size:40*30*30cm

2.Customized according to customer's request

M8 connector can be used a wide fields like LED, Automation, Sensor, mechanise equipment etc.

• LED lighting , white light , color light etc

• Low current equipement

• Connector be used in narrow environment

• Communication equipement

• Lighting harness
