Right Angle / Straight 4 Pin Male And Female Connectors Assembly
Right Angle / Straight 4 Pin Male And Female Connectors Assembly
Right Angle / Straight 4 Pin Male And Female Connectors Assembly
Right Angle / Straight 4 Pin Male And Female Connectors Assembly
Right Angle / Straight 4 Pin Male And Female Connectors Assembly
Right Angle / Straight 4 Pin Male And Female Connectors Assembly
Right Angle / Straight 4 Pin Male And Female Connectors Assembly
Right Angle / Straight 4 Pin Male And Female Connectors Assembly
Specifications
Brand Name :
Rigoal
Model Number :
M8 assembly connector
Certification :
CE , RoHS
Place of Origin :
China
MOQ :
100
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000 per week
Delivery Time :
7-10days
Packaging Details :
PE bag and Cartons
Connector gender :
female male
Termination :
Screw
Wire gauge (mm) :
0.25 mm²
Wire gauge (AWG) :
24
Cable outlet :
3,5 - 5,0 mm
Jacket :
PUR or PVC
Material housing :
Brass nickel plated
Rated current :
4A
Rated voltage :
60V
Rated impulse voltage :
1500 V
Volume resistivity :
≤ 3 mΩ
Degree of protection :
IP67
Description

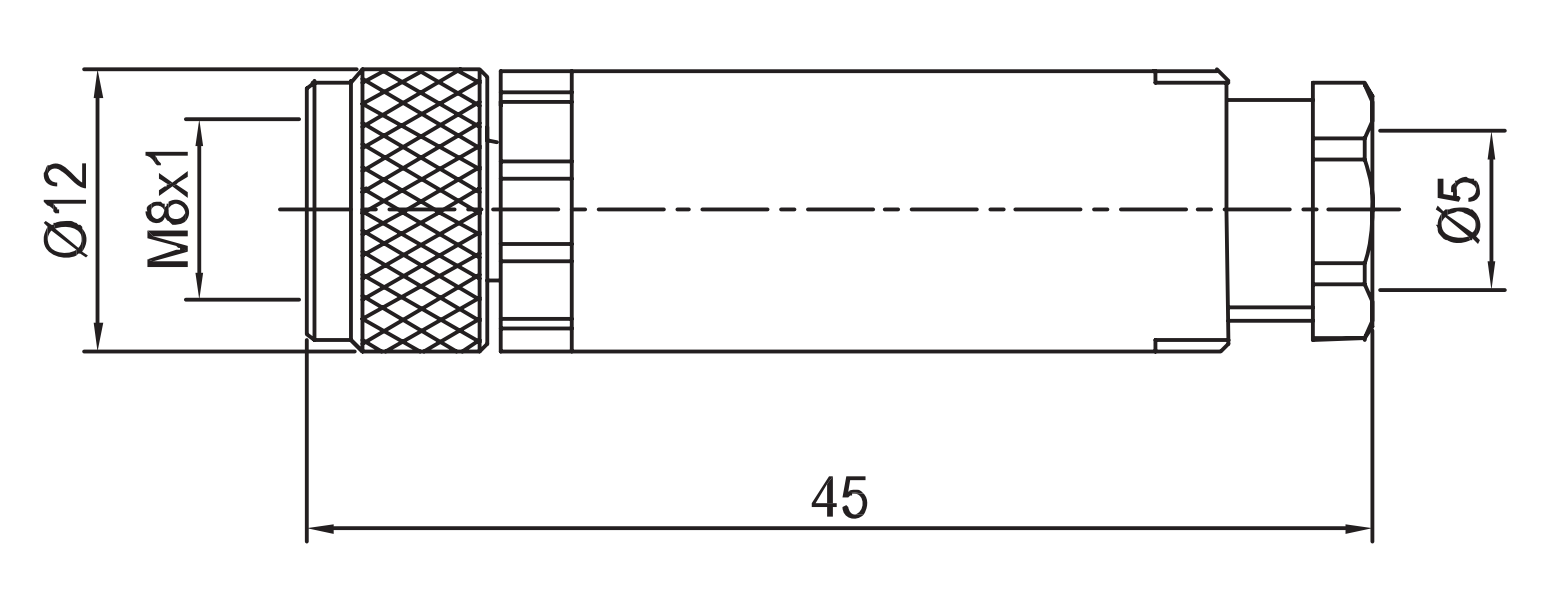

M8 Waterproof Connector 4pins Assembly Right Angle Or Straight Female Male Connector

Quick details
1. M8 assembly connector 4pins female gender
2. Connector locking system is bolted
3. Termination is solder
4. Wire gauge(mm) is 0.25mm²
5. Wire gage(AWG) 24
6. Cable outlet can be 3,5 - 5,0 mm
7. Temperature will from -40° to +85°
8. Contacts 3.4.5.6.8pins avaliable

Electrical values
Rated current (40 °C) :4 A
Rated voltage : 60 V
Rated impulse voltage :1500 V
Pollution degree :3
Overvoltage category :III
Insulating material group :III
Volume resistivity :≤ 3 mΩ
EMC compliance :not shielded
Degree of protection :IP67
Mechanical operation :> 100 Mating cycles

Material Data
Contact materialCuZn (brass)
Contact platingAu (gold)
Contact body materialPA
Housing materialPA

Number of Contacts34568
Rated voltage30V60V
Contact resistance<5mΩ
Insulation resistance<100mΩ
Pollution degree3
Temperature range25 °C to 85° C
Degree of protectionIP 67 when mated
Mating times100 cycles
Wire gauge24AWG26AWG
Cable jacketPVC or PUR
Material of housingBrass Nickel Plated
Material of insertPA+GF UL9V-0
Material of contactBrass phosohor bronze gold plated






Right Angle / Straight 4 Pin Male And Female Connectors Assembly
Right Angle / Straight 4 Pin Male And Female Connectors Assembly
Right Angle / Straight 4 Pin Male And Female Connectors Assembly


Product photos
Right Angle / Straight 4 Pin Male And Female Connectors AssemblyRight Angle / Straight 4 Pin Male And Female Connectors AssemblyRight Angle / Straight 4 Pin Male And Female Connectors Assembly

Right Angle / Straight 4 Pin Male And Female Connectors Assembly



Packsging & Shipping

1.Our general packing: PE bag and PE bag contons. General Carton size:40*30*30cm

2.Customized according to customer's request
Right Angle / Straight 4 Pin Male And Female Connectors Assembly

M8 connector can be used a wide fields like LED, Automation, Sensor, mechanise equipment etc.

• LED lighting , white light , color light etc

• Low current equipement

• Connector be used in narrow environment

• Communication equipement

• Lighting harness
Right Angle / Straight 4 Pin Male And Female Connectors Assembly
