M12 Male Front Panel Mount 5 Pins With Tail M12 Circular Automotive Electrical Waterproof Connector
M12 Male Front Panel Mount 5 Pins With Tail M12 Circular Automotive Electrical Waterproof Connector
M12 Male Front Panel Mount 5 Pins With Tail M12 Circular Automotive Electrical Waterproof Connector
M12 Male Front Panel Mount 5 Pins With Tail M12 Circular Automotive Electrical Waterproof Connector
M12 Male Front Panel Mount 5 Pins With Tail M12 Circular Automotive Electrical Waterproof Connector
M12 Male Front Panel Mount 5 Pins With Tail M12 Circular Automotive Electrical Waterproof Connector
M12 Male Front Panel Mount 5 Pins With Tail M12 Circular Automotive Electrical Waterproof Connector
M12 Male Front Panel Mount 5 Pins With Tail M12 Circular Automotive Electrical Waterproof Connector
Specifications
Brand Name :
Rigoal
Model Number :
M12 panel mount
Certification :
CE,RoHS IP68
Place of Origin :
China
MOQ :
100pcs
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
10-15days
Packaging Details :
PE bag and Cartons
Product name :
M12 connector

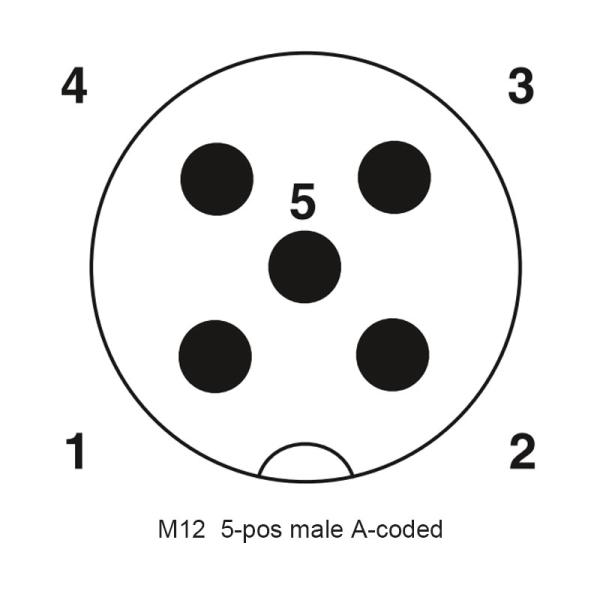

Type :
A code
Poles :
5p
Connector gender :
male
Mating Cycle :
>500times
Degree of protection :
IP67
Shielded :
avaliable
Use :
Automotive
Outlet :
4-8mm
Description

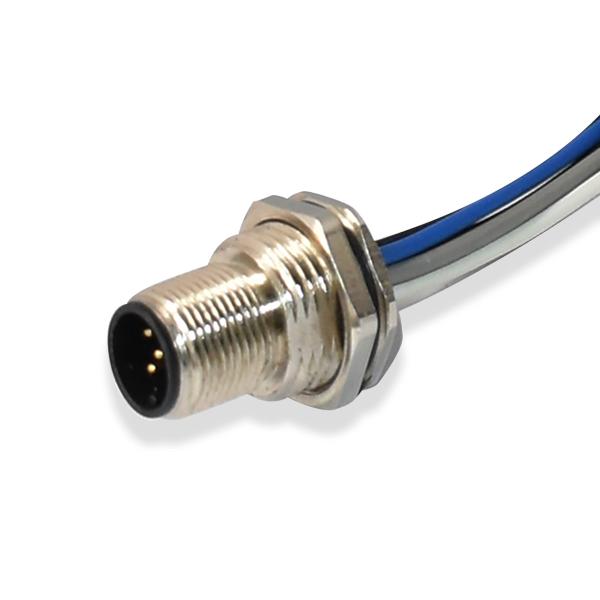

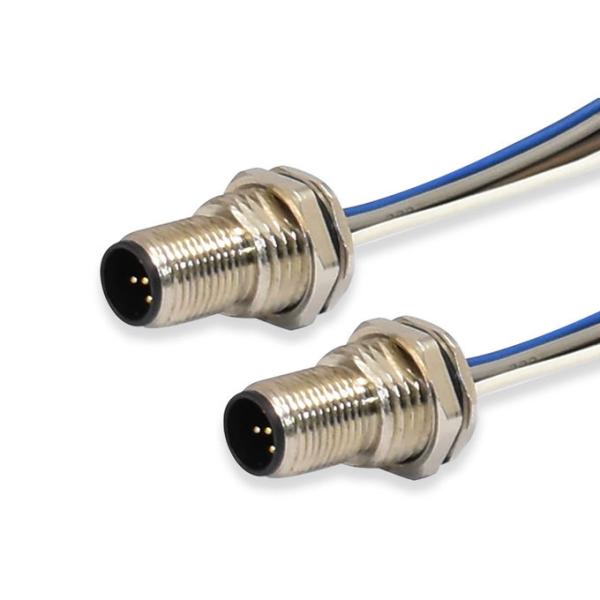

M12 Male Front Panel Mount 5 Pins With Tail M12 Circular Automotive Electrical Connector

Product description

Waterproof M12 Male & Female Front Mount.

IP67 waterproof connectors to cable assemblies.

Anti-oxidization and anti-UV.

Compliant with the RoHS Directive.

Customized orders are welcome.

General details

Plastic Housing Engineering Thermoplastic Flammability Rating UL 94V-0.
Contacts Copper Alloy
Plating Gold Plating Over Nickel in Contact
O-Ring Silicone Rubber Black Color
Cable UL 2464 22AWG, OD 5.4mm, Color Black
Shielded Brass with Nickel Plated
Current Rating 4A (2 to 5Pin), 2A (6 to 8Pin), 1.5A (9 to 12Pin)
Rated Voltage 250V AC/DC (2 to 4Pin), 60V AC/DC (5Pin), 30V AC/DC (6 to 8Pin), 30V AC/DC (9 to 12Pin)
Insulation Resistance 10⁸ MΩ

Product details

Standard IEC 61076-2-101 Insulation Resistance ≥100MΩ
Ambient Temperature -25℃~+90℃ Contact Resistance ≤5mΩ
Connector Insert TPU Shielding Unavailable
Connector Contacts Brass with Gold Plated Seal/O-ring Epoxy resin/FKM
Coupling Nut/Screw Zinc Alloy with Nickel Plated Mating Endurance >500 cycles
IP Rating IP68/IP69K in locked condition Certificate UL/CE/ROHS/IP67/REACH/IP68

M12 Male Front Panel Mount 5 Pins With Tail M12 Circular Automotive Electrical Waterproof Connector

M12 Male Front Panel Mount 5 Pins With Tail M12 Circular Automotive Electrical Waterproof ConnectorM12 Male Front Panel Mount 5 Pins With Tail M12 Circular Automotive Electrical Waterproof Connector

M12 Male Front Panel Mount 5 Pins With Tail M12 Circular Automotive Electrical Waterproof Connector

Our service

- Fast Samples delivery service
- Quote within 24 hours
- Professional teams with RD & Sales for your projects
- Special service for your urgent case
- Customer is always our focus.
