12P Waterproof Data Connector M19 IP67 M19 Screw Locking Black
12P Waterproof Data Connector M19 IP67 M19 Screw Locking Black
12P Waterproof Data Connector M19 IP67 M19 Screw Locking Black
12P Waterproof Data Connector M19 IP67 M19 Screw Locking Black
12P Waterproof Data Connector M19 IP67 M19 Screw Locking Black
12P Waterproof Data Connector M19 IP67 M19 Screw Locking Black
12P Waterproof Data Connector M19 IP67 M19 Screw Locking Black
12P Waterproof Data Connector M19 IP67 M19 Screw Locking Black
12P Waterproof Data Connector M19 IP67 M19 Screw Locking Black
12P Waterproof Data Connector M19 IP67 M19 Screw Locking Black
12P Waterproof Data Connector M19 IP67 M19 Screw Locking Black
12P Waterproof Data Connector M19 IP67 M19 Screw Locking Black
Specifications
Brand Name :
Rigoal
Model Number :
M19 connector
Certification :
CE,RoHS
Place of Origin :
China
MOQ :
100pcs
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
10-15 working days
Packaging Details :
PE bag and Cartons
Connector :
M19
Gender :
female and male
Contact Pin :
12 Pin Wire To Wire
Connecting Model :
Screw Locking
Color :
Black
Current Rating :
5A
Contact material :
Gold Plated Brass
Protect rating :
IP67
Feature :
Vibration Resistance
Description

Waterproof Cable Connector 12 Pin Data Connector IP67 M19 Screw Locking Connector

Product description

waterproof circular connectors m19 connector widely used in Industrial Controls,Test Equipment,Traffic Signals and Bus Systems.

m19 waterproof connector enable contact between cables, electronic components, wires, etc

Electrical data

Model number: M19

Connector Body: Nylon(PA 66)+GF UL94V-0 1/16"

Sealing: Silica Gel

Contact: Brass with gold plated

Mating style: Quick lock

Temperature Rating: -40°C~+105°C

Current rating: 5A

Voltage rating: 300V

Waterproof Rating: IP67

Contact resistance: <=20mΩ

Insulation resistance: 1000MΩ at DC500V

Breakdown voltage: 1.5KV/1 minute

Pins range: 2/3/4/5/6/7/8/9/10/12/14/18 pin.
12P Waterproof Data Connector M19 IP67 M19 Screw Locking Black

12P Waterproof Data Connector M19 IP67 M19 Screw Locking Black12P Waterproof Data Connector M19 IP67 M19 Screw Locking Black

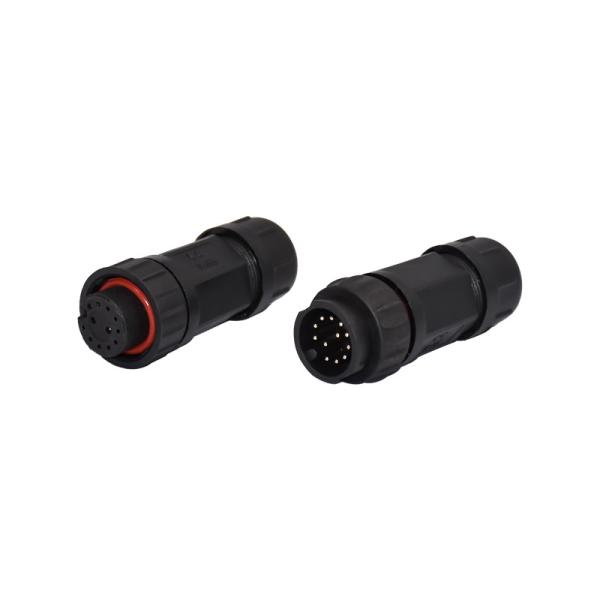

Product photos

12P Waterproof Data Connector M19 IP67 M19 Screw Locking Black

12P Waterproof Data Connector M19 IP67 M19 Screw Locking Black12P Waterproof Data Connector M19 IP67 M19 Screw Locking Black12P Waterproof Data Connector M19 IP67 M19 Screw Locking Black12P Waterproof Data Connector M19 IP67 M19 Screw Locking Black12P Waterproof Data Connector M19 IP67 M19 Screw Locking Black

FAQ

1. Q: What type waterproof connector do you have?
A: Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,M8,M12,M16,M23,RJ45,waterproof plastic connector, and so on.

2. Q: How to buy your products?
A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and shipping way

3. How to contact us?

A: Email, Whatsapp, Wechat, telephone all are avaliable.
