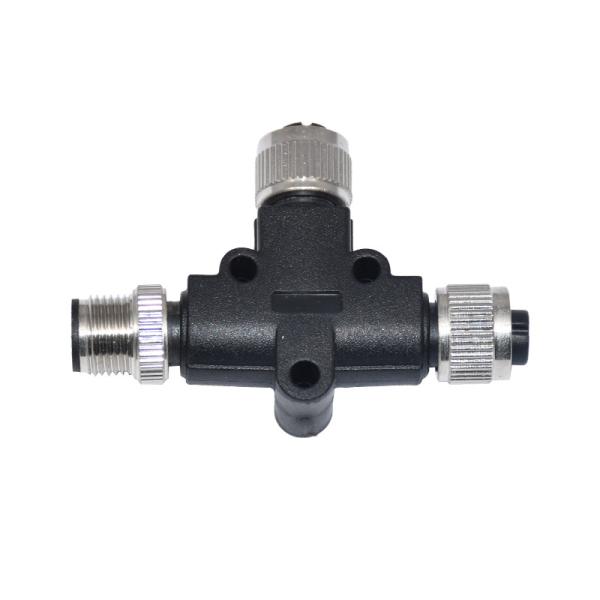

M12 Waterproof Connector Circular M12 A Coding female to male T Type Connector

Description

1. M12 Field wireable /installable connectors permit high flexibility for wiring cables in the field.

2. It enables quick assembly and disassembly of differing cable lengths.

3. The wire connection normally use soldering termination, crimping and screw termination.

4. M12 t connector in a way to decrease the electrical usage and save power. The products on this platform are available at affordable costs.

5. M12 connectors are designed for washdown and corrosive environments. They are available with 3, 4, 5, 8, and 12 pins.

6. The m12 T connector enable contact between cables, electronic components, wires, etc.

7. M12 Connectors for power transmission (T-coded) Individually usable DC power connector M12 with T-coding (60V/12A). For individual and easy connection of automation devices.

8. M12 connector portfolio includes A, B, D, S, T, and X-coded (up to 10 Gb/s) versions to serve various customer needs.

Quick details

Connector type: T type

Contacts:3.4.5.8.12pins

Rated current: 4A

Rated AC/DC: 350V

Cable size: 0.34mm

Cable size AWG:22

Mating Cycle:500times

Temperature:-40°C~+80°C

Degree of protection: IP68

Material

Cable material: PUR/PVC

Shell material: copper/Zinc

Core material:PA

Insert/ Housing: TPU

Overmold material:PVC/TPU

Terminal material:Phosphor copper

Coupling nut/screw: Brass with nickel plated screw

Electrical Data

Product photos

Applications

● Standard sensor, actuator, encoder, servo motors

● Factory automation and process control

● Industrial instrumentation

● Commercial electronics PCBA

● Industrial safety light curtain, light grid, switches

● Power supply

● Fieldbus: DeviceNet, CANopen, Profibus, Ethernet, NMEA 2000

● LED display panel & outdoor LED lighting

Packsging & Shipping

1.Our general packing: PE bag and PE bag contons. General Carton size:40*30*30cm

2.Customized according to customer's request

FAQ

1. Q: What type waterproof connector do you have?
We have a lot of types connector,most of our connector is customized.We foucs on LED Waterproof connector, Assembly waterproof connector,Over-mold waterproof connector,Sensor connector etc, also customized according to your requirements.

2. Q: How to buy your products?
* Confirm the type of connector

* Confirm the Number of Connector
* Confirm Cable Wire guage
* Confirm Cable Length and shipping way

3. Q: How to contact with you?
A: Please give us email,we have worked for this industry more than 10 years,So we can catch your problem,and solve it in a short time.

Rigoal-----Your Best Connection!
