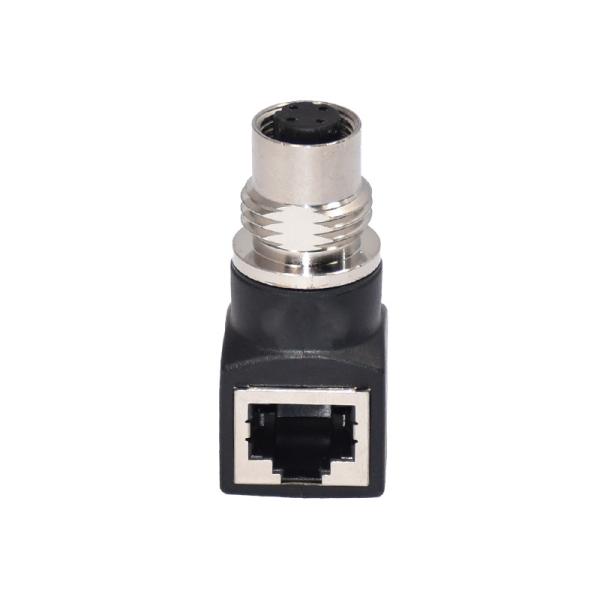

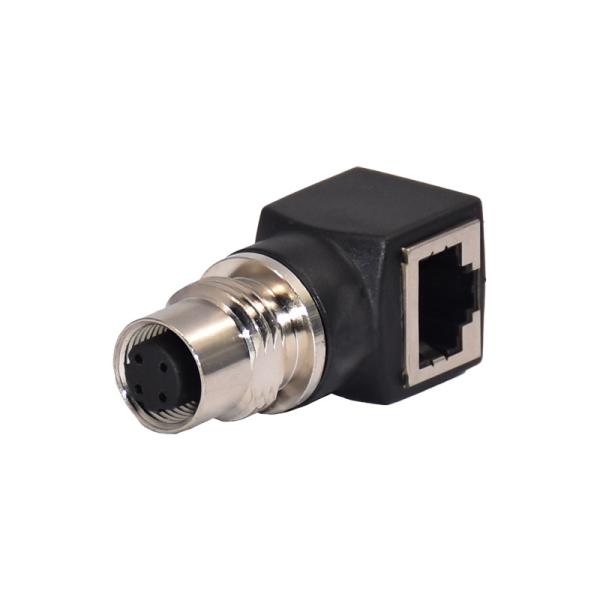

90 Degree 4Pins M12 To RJ45 Waterproof Connector / M12 A Coded Female Connector
90 Degree 4Pins M12 To RJ45 Waterproof Connector / M12 A Coded Female Connector
90 Degree 4Pins M12 To RJ45 Waterproof Connector / M12 A Coded Female Connector
90 Degree 4Pins M12 To RJ45 Waterproof Connector / M12 A Coded Female Connector
90 Degree 4Pins M12 To RJ45 Waterproof Connector / M12 A Coded Female Connector
90 Degree 4Pins M12 To RJ45 Waterproof Connector / M12 A Coded Female Connector
Specifications
Brand Name :
Rigoal
Model Number :
M12 To RJ45
Certification :
CE,RoHS
Place of Origin :
China
MOQ :
100pcs
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
10-15 working days
Packaging Details :
PE bag and Cartons
Type :
Sensor Connector
Gender :
Female
Application :
Automotive And Sensor
Pins :
4P
Connection type :
M12 to RJ45 connector
Orientation :
90 Degree
Rated Voltage :
60V
IP Rating :
IP67
Rated current :
4A
Coding :
A Code
Description

M12 Waterproof Connector M12 A Code Female 90 Degree 4pins To RJ45 Adapter Connector

Product Description
M12 to RJ45 Adapter Supply T Type & Y Type & to RJ45 Adapter for mating Panel Mount Recetacle, Field Wireable Plug & Molding CableHigh M12 (Female) to RJ45 (Male) Ethernet cable, CAT5E. 0.5 m (1.6 ft). Outdoor UV and sunlight resistant. Tested operational for shock and vibration according to requirements for rolling stock and ground vehicle installations. Compatible with all Axis network video products with female RJ45 Ethernet port 802.3af and 802.3at ( up to 30W ) .

Electrical data

Gender: female

Type: Sensor connector m12 to RJ45

Rated voltage: 60 V

Body shell: PA + GF Housing / Metal shell

Terminal: Threaded

Material: Brass

Insulation resistance: ≥ 10 GΩ

Connector:DC Power Jack Plug Connector

Mechanical operation : > 100 Mating cycles

Rated voltage : 60V

Rated impulse voltage :1500V

Material

Flammability rating according to UL 94: HB

Contact material: CuZn

Contact surface material: Ni/Au

Contact carrier material: TPU GF

Material of grip body: TPU, hardly inflammable, self-extinguishing

Material, knurls: Zinc die-cast, nickel-plated

Sealing material: NBR

Serie M12 Adapter
Coding A Code
Connection Type m12 to RJ45
Number of Contacts 4 pins
Gender female
Orientation 90 degree
Rated Current 4A
Rated Voltage 60V
Temperature Range -25~ + 80C
IP Rating IP67
Product photos
90 Degree 4Pins M12 To RJ45 Waterproof Connector / M12 A Coded Female Connector90 Degree 4Pins M12 To RJ45 Waterproof Connector / M12 A Coded Female Connector90 Degree 4Pins M12 To RJ45 Waterproof Connector / M12 A Coded Female Connector
Application
90 Degree 4Pins M12 To RJ45 Waterproof Connector / M12 A Coded Female Connector
FAQ
Q: When can I get the quotation?
A: Within 24Hours after we get your inquiry. If you are very urgent to get the price
Q: What is the minimum order quantity (MOQ)?
A: 100 pcs or negotiate
Q: What kind of certificates Riogal have?
A: RoHS 2.0; REACH; UL; CE; IP67/68; IP69K......
Q: How long can I expect to get the samples? Should I pay for the samples?
A: The samples will be ready to delivery in 3-7 days after you confirm the drawing.
Q: Can you provide customized products for us?
A: Yes. We have a professional team in providing customized solution for you.
