M12 Waterproof Connector Fast Locking Field Ethernet Assembly 4pins Sensor Connector

Description

• M12 Field wireable / installable connectors permit high flexibility for wiring cables in the field. It enables quick assembly and disassembly of differing cable lengths.

• The wire connection normally use soldering termination, crimping and screw termination.

Quick details

Core type: A.B.C.D

Contacts:3.4.5.8.12pins

Rated current: 4A

Rated AC/DC: 350V

Cable size: 0.34mm

Cable size AWG: 22

Mating Cycle: 500times

Temperature: -40°C~+80°C

Degree of protection: IP67 / 68

Material

Cable material: PUR/PVC

Shell material: copper/Zinc

Core material:PA

Insert/ Housing: TPU

Overmold material:PVC/TPU

Terminal material:Phosphor copper

Coupling nut/screw: Brass with nickel plated screw

Electrical Data

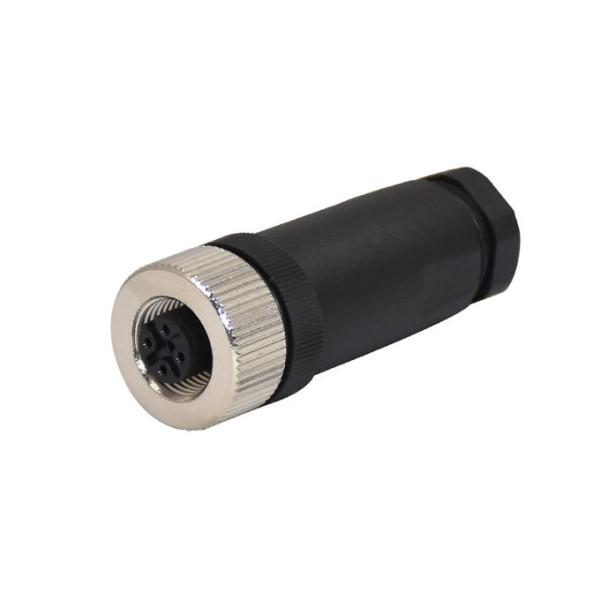

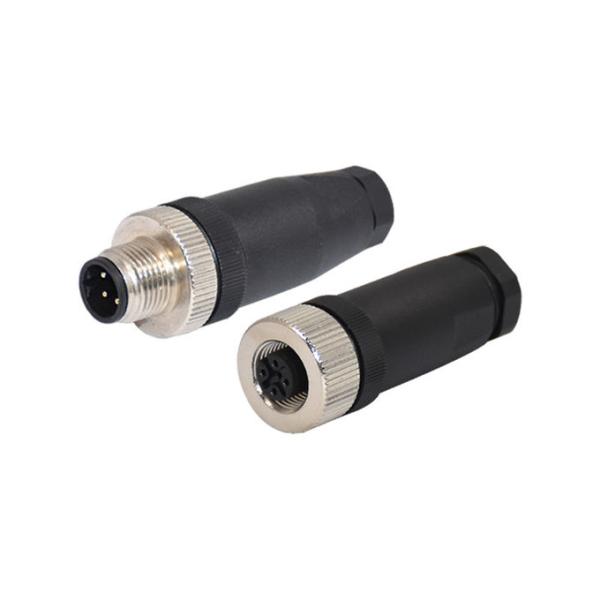

Product photos

Applications

● Standard sensor, actuator, encoder, servo motors

● Factory automation and process control

● Packaging, labeling and logistic devices

● Industrial instrumentation

● Commercial electronics PCBA

● Industrial safety light curtain, light grid, switches

● Power supply

● Fieldbus: DeviceNet, CANopen, Profibus, Ethernet, NMEA 2000

● LED display panel & outdoor LED lighting

Packsging & Shipping

1.Our general packing: PE bag and PE bag contons. General Carton size:40*30*30cm

2.Customized according to customer's request

Our service

1.100% high quality, all failed parts get free warranty within 30 days after received.

2. Accept 3 years warranty upon customer requirement.

3. Repairs parts are available within 10years; we will inform the EOL products to you from time to time

4. Free LOGO on the surface of over-molded connectors can be provided upon customer requirement.

5. Unique designed package for you can be provided upon customer requirement.

6. Special feature and service can be provided upon requirement.

Rigoal-----Your Best Connection!
