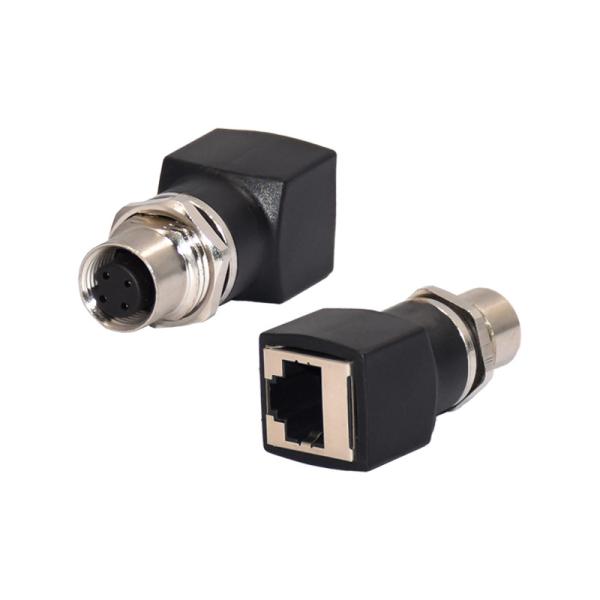

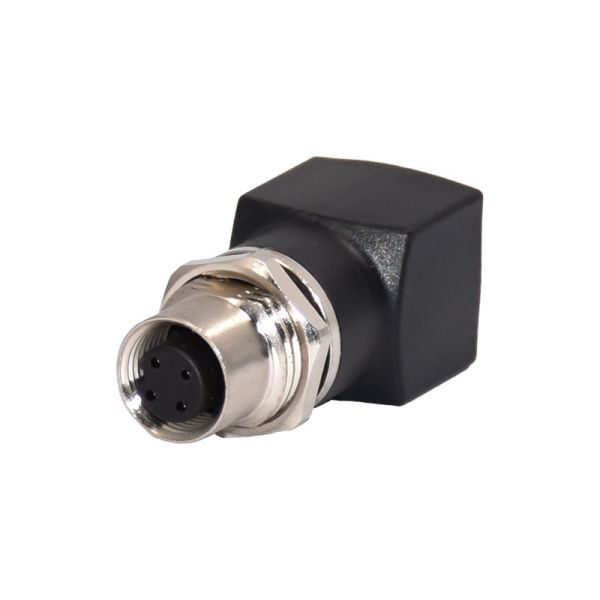

Automotive M12 Waterproof Connector A Coding Female 4pins To RJ45 Adapter
Automotive M12 Waterproof Connector A Coding Female 4pins To RJ45 Adapter
Automotive M12 Waterproof Connector A Coding Female 4pins To RJ45 Adapter
Automotive M12 Waterproof Connector A Coding Female 4pins To RJ45 Adapter
Automotive M12 Waterproof Connector A Coding Female 4pins To RJ45 Adapter
Automotive M12 Waterproof Connector A Coding Female 4pins To RJ45 Adapter
Specifications
Brand Name :
Rigoal
Model Number :
M12 to RJ45
Certification :
CE , TUV , Rohs
Place of Origin :
China
MOQ :
100pcs
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
10-15 working days
Packaging Details :
PE bag and Cartons
Type :
Sensor adapter
Gender :
Female
Pins :
4P
Connection type :
M12 to RJ45 connector
Orientation :
Straight
Rated Voltage :
60V
Degree of Protection :
IP67
Application :
Automotive And Sensor
Rated current(V) :
4A
Coding :
A Code
Description

M12 Waterproof Connector M12 A Coding Female 4pins To RJ45 Adapter Circular Connector

Description
M12 to RJ45 Adapter for mating Panel Mount Recetacle, Field Wireable Plug & Molding Cable High degree of protection IP67, safe to use on site
High quality gold-plated solid phosphor bronze contacts , ≥ 600 times mating life
Anti-vibration locking screw design
Support samples, retail and bulk orders

Electrical data

Gender: female

Type: m12 to RJ45 adapter

Rated voltage: 60 V

Body shell:PA + GF Housing / Metal shell

Terminal: Threaded

Material: Brass

Insulation resistance: ≥ 10 GΩ

Connector:DC Power Jack Plug Connector

Mechanical operation : > 100 Mating cycles

Rated voltage : 60V

Rated impulse voltage : 1500V

Material

Flammability rating according to UL 94: HB

Contact material: CuZn

Contact surface material: Ni/Au

Contact carrier material: TPU GF

Material of grip body: TPU, hardly inflammable, self-extinguishing

Material, knurls: Zinc die-cast, nickel-plated

Sealing material: NBR

General Characteristics
Number of contact 3 4 5 8 12 17
Locking system screw M12*1.0
Termination solder, moulded on cable, crimp or screw clamp
Wire guage in mm² 0.14 / 0.25 / 0.34 / 0.5 etc
Wire guage in AWG 26 / 24 / 22 / 20 etc
Shell protection IP67 / IP68
Mechanical operation > 500 mating cycles
Upper temperature +85℃
Lower temperature -25℃
Product photos
Automotive M12 Waterproof Connector A Coding Female 4pins To RJ45 AdapterAutomotive M12 Waterproof Connector A Coding Female 4pins To RJ45 AdapterAutomotive M12 Waterproof Connector A Coding Female 4pins To RJ45 Adapter
Application
Automotive M12 Waterproof Connector A Coding Female 4pins To RJ45 Adapter

Our service
- Fast Samples delivery service
- Quote within 24 hours
- Professional teams with RD & Sales for your projects
- Special service for your urgent case
- Customer is always our focus.
