D-SUB molidng type waterproof connector Cable

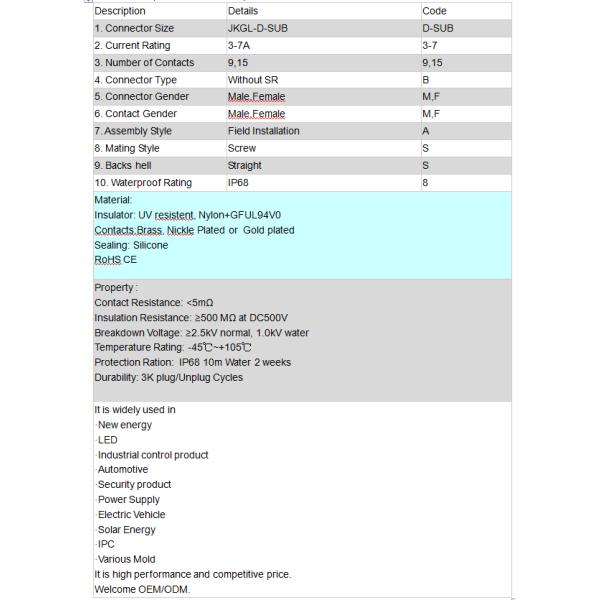

D-SUB Waterproof Connector Specification

D-Sub series

D-Sub is used in a broad variety of applications from consumer products to satellite equipment. A, B, C, D, or E denoting the shell size, DA 15 Pins, DB 25 Pins, DC 37 Pins, DD 50 Pins, and DE 9 Pins. D-Sub products feature popular data cable, serial cable, null modem cable, d-sub connectors, high density cables D-sub cables and RS232 serial cable assemblies, printer cables, switch boxes, adapters, gender changers and connectors.

- Assembly D-sub and over molding solution, the over molding cable with 180°,45°,and 90° line out, some standard mold are available shared with customer to help cut down the cable develop cost and lead time.
- EMI ( Electro Magnetic Interference) solution aluminium & copper foil.
- Customized screw solution, front mount & rear mount, standard 4-40 UNC.

Cable spec:

1 x Twisted Pair 0.25mm², 2 x Power Cores and 1 Ground Core 0.75mm². Outer sheath in black PVC
Connector Style
8 Pin female connector according to IEC 60130-9 to 9 way D Sub waterproof male connector. Fully soldered contacts. All connectors are UL94V-0.
5. Specification of Terminated RETD/ or RETK/ assemblies
Rated Current 5A
Temperature Range -40°C to +80°C
Protection Class IP67 mated
Overall Cable Diameter 8mm
Minimum Bending Radius 60mm (single) 120mm (repeat)
Flammability Halogen Free, Flame Retardant
Relative Humidity Up to 100% Remote Electrical Tilt (RET)
Multiwire Power Supply and Control Cable

Applications:

Remote Electrical Tilt (RET) applications
AISG compliant antenna control units
Tower mount amplifiers with AISG interface
Control Network interfaces with AISG interface

Certifications

Package&Shipping:

Packaging

1. Generay Package :Each pcs put in one samll waterproof PE bag,then put in a carton

Details: Add the label, about 200 hundred pieces connector put in one carton, Carton size:46*30*30cm

2. OEM/ODM package is avaiable

3. According to customer choice.

Shipping

We can according to customer request choose different ship way,which more converence ,which we will choose!

Our Advantages

1. Are you a manufacturer or a trader?
Yes, We are a cable connctors factory.

2. What kind of terminal blocks can you provide?
We specialized in producing waterproof cables & waterproof connectors such as M20, M22, M25, ,Also have military waterproof connector, push pull connector, quick- connect connector etc .

3. What kind of certificates do you have?
Our products are approved IP 68, VDE, CE, ROHS

4. What's the payment?
We accept bank transfer, TT, Paypal & Western Union, or others methods.

5. What is lead time?
Samples: 5-7 workdays; Orders: 7-15 workdays;

6. Do you provide inspection on the incoming materials before production and inspect the finished products shipment?
Yes. We have Incoming material inspection, In process quality check and Outgoing goods quality check.

7. How do you ship the finished product?
A: Based on the customer request. Usually DHL, FEDEX, UPS, TNT etc.

8. What kind of delivery terms or trade terms is available?
A: EXW, FOB, FCA HK, Telex releases are available.

Quotation will be send you within 24 hours after receiving your specific enquiry. For more informations and items, please contact us.
