What is the difference between M12 connector coding?
A-coded mostly used in sensors, actuators, motors, and most other standard devices. it usually between 2 and 12 pins.
B-coded mostly used in network cables for Fieldbus connections, includes systems that operate with Profibus. it typically have between 3 and 5 pins.
C-coded primarily used with AC sensors and actuators, and also have a dual keyway for added security. it have between 3 and 6 pins.
D-coded typically used in network cables for Ethernet and ProfiNet systems. it transfer data up to 100 Mb and typically provides 3 to 5 pins.
S-coded are for ac power application.
T-coded are for dc power application.
X-coded can transfer large amounts of data up to 10Gb at high speeds, it will always have 8 pins.

Product Pin:3 4 5 6 8 12 17 pin
A B C D X T S L K M Y coded
Molded & Panel mount & Assembly type & T/Y adapter & Cap
Shielded availble
Custom length
PVC/PUR or custom cable material
Rear/Front/Flange panel mount
Screw/Solder/PCB/With pigtail contact way
IP67/IP68
IEC Standard

Aplication
Packaging label printing equipment
Industrial equipment
EMS circuit board assembly
Industrial safety grating light curtain
Equipment batteries, semiconductors

Sensors, actuators, encoders, motors, industrial cameras, ships and other equipment
Factory automation process control
Fieldbus: DeviceNet, CANopen, Profibus, Ethernet,
Ship electronics NMEA 2000, rail transit
LED outdoor display, outdoor LED lighting

Feature
Quick and easy installation

Quality is our culture.

Hardware and cable self-production
Mold making and inject molding
One-stop production factory
Short delivery time

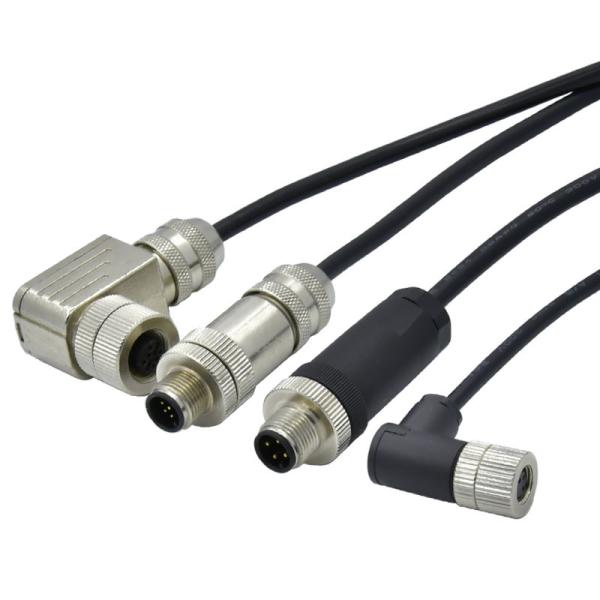

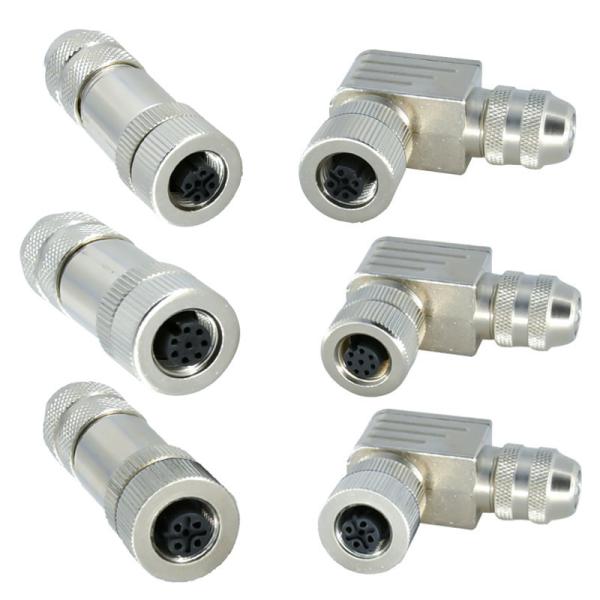

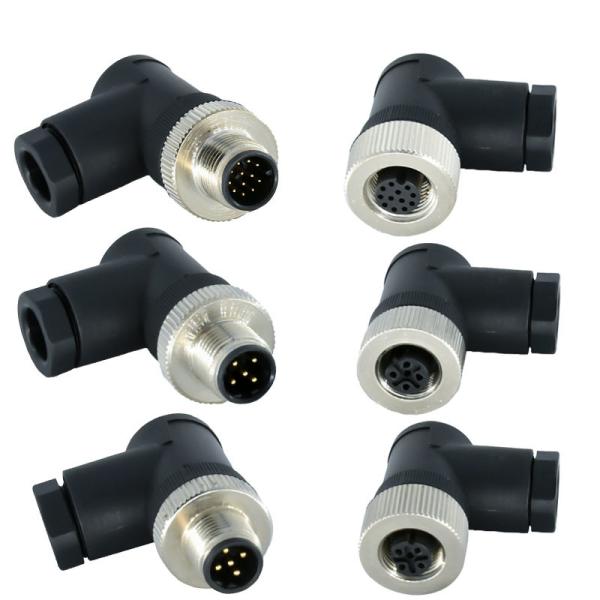

Product display

Waterproof rating is IP67, protected from dust and water during immersion,resistant to many oils and chemical.
M12 offers many different cable connectors, panel mounted receptacles, field attachable/installable connectors and its accessories. Connectors have industry- standard A, B, D ,X,S,T,K,Lcoding, for both screw-locking and quick-locking system.

Packing & Shipping

About us

Rigoal was founded in 2013, and devoted ourselves to be the high quality & efficience manufacturer.

We specialized in producing waterproof cables & waterproof connectors such as M8, M12, M16, M23, D-SUB. Mainly applied in sensors, industrial equipments, transportation facilities, medical devices, LED displays, outdoor advertisements, communication devices,wind energy devices, vessel industrial and Surrounding the car electronics industry and so on.

Our products mainly exported to developed industrial countries such as America, Austria, Sweden, Belgium, Germany, Netherlands, British, Spain and Asian, Israel. Meanwhile, we have agents and customers all over the world and speaking highly of by our customers.

Our philosophy and purpose is: Customer Foremost, Service First. Quality first.

Warmly welcome you join in us, your support will be always our motivation. Let's go forward hand in hand to create a brilliant future. Rigoal----Your Best Connection!

Any question,you are welcome to contact us at any time!
