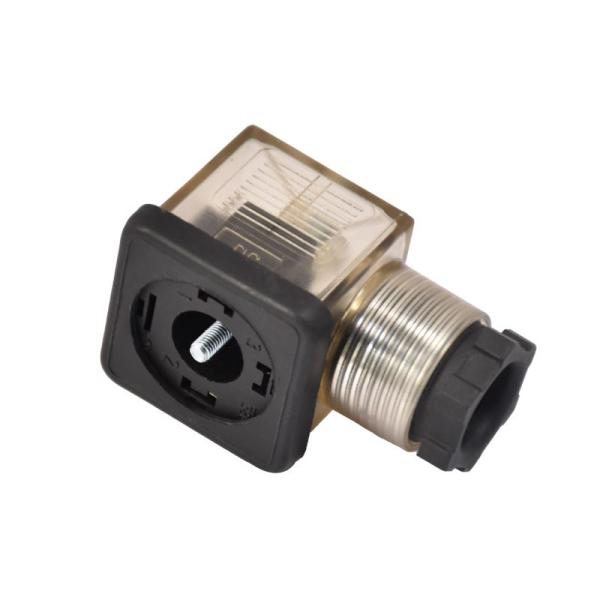

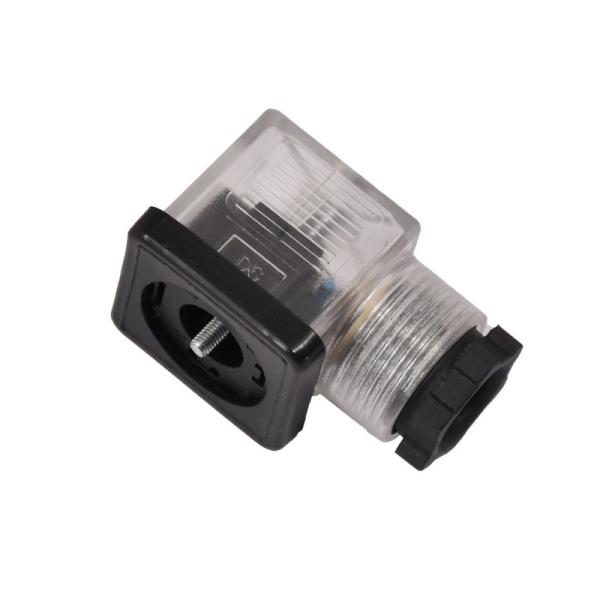

Solenoid Valve Type A Connector DIN EN175301-830-A
Solenoid Valve Type A Connector DIN EN175301-830-A
Solenoid Valve Type A Connector DIN EN175301-830-A
Solenoid Valve Type A Connector DIN EN175301-830-A
Solenoid Valve Type A Connector DIN EN175301-830-A
Solenoid Valve Type A Connector DIN EN175301-830-A
Solenoid Valve Type A Connector DIN EN175301-830-A
Solenoid Valve Type A Connector DIN EN175301-830-A
Specifications
Brand Name :
Rigoal
Model Number :
assembly type
Certification :
CE ， Rohs , IP68
Place of Origin :
China ShenZhen
MOQ :
100
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000
Delivery Time :
30work day
Packaging Details :
46x30x30
Product name :
Solenoid Valve Type A Connector
Type :
DIN43650 A base
Grounding :
Standard grounding
Termination :
Solder
Standard :
DIN EN175301-830-A
Housing material :
PA+GF
Pin dimensions :
6.3X0.8mm 4.8X0.8mm
Ambient temperature :
-40°C~+125°C
Conductor :
Max 1.5 mm square
Housing color :
Black
Description

Solenoid valve type A connector

Solenoid Valve Type A Connector DIN EN175301-830-A

Description of Solenoid Connectors:

Din rectangular connector vave plug,waterproof connector IP65

Design as per DIN EN 175301-803

Protected from dust and water spray,resistant to many oils and chemical

Professional for hydraulic,pneumatic and electro-magnetic actuators.

Model A,B,C

Number of poles 3,4 including PE

Operating voltage UC 250v,current 16A

Construction type A
standard DIN ED175 301-803-A
Locking system central nut
Temperature rated -40°C~+125°C
Protection class IP65(gasket necessary)
Termination soldering
Rated voltage AC/DC 400V
Rated impulse voltage 4000V
Rated Current 16A
Contact brass with tin plating

Solenoid Valve Type A Connector DIN EN175301-830-A

Solenoid Valve Type A Connector DIN EN175301-830-A

Solenoid Valve Type A Connector DIN EN175301-830-A
