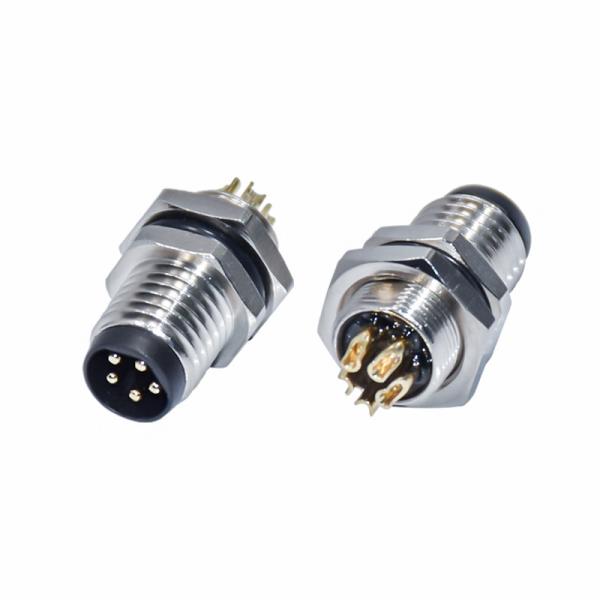

Nickel Plated 5p M8 Panle Mount Coupler TPU GF M8 Sensor Connector
Nickel Plated 5p M8 Panle Mount Coupler TPU GF M8 Sensor Connector
Nickel Plated 5p M8 Panle Mount Coupler TPU GF M8 Sensor Connector
Nickel Plated 5p M8 Panle Mount Coupler TPU GF M8 Sensor Connector
Specifications
Brand Name :
Rigoal
Model Number :
Panel mounting
Certification :
CE ， Rohs , IP68
Place of Origin :
China ShenZhen
MOQ :
100
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000
Delivery Time :
30work day
Packaging Details :
46x30x30
Product name :
M8 5PIN Rear Lock Flange Connector
Termination :
Solder
Insert material :
TPU+GF
Contact material :
Brass with gold plated
Overmold material :
Transparent TPU
Coupling material :
Brass with nickel plated
Number of pole :
3pins
Operate temperature :
-20℃~+80℃
Degree of protect :
IP67/IP68
Standard :
IEC 61076-2-101
Description

M8 5pin panle mount coupler

M8 Series Panel Mount Connector

The M8 Circular Connectors is the connector of 8mm metric size with thread locking mechanism, which is one of the most commonly used in factory automation, sensor/actuator boxes, field-bus and industrial controllers.

ShenZhen Rigoal Provides the M8 Panel Mount Male /Female Straight /Angled Connector with 3, 4, 5, 6, 8 Poles .

Quick Details:

* Series: M8 Panel Mount Connector

* Pin Numbers: 3, 4, 5, 6, 8Pin are acceptable

* Gender: Male/Female

* Termination Type: Soldering with Single End or Double End or PCB

* Feature: Water and Dustproof to IP67 when mated with compatible connector

Technical Overview Data & Contact Diagrams

Product Series M8 Panel Mount Connectors IP rating IP67
Pin numbers 3Pin/4Pin/5Pin/6Pin/8Pin Mating cycle ＞500
Locking Mechanism Screw Coupling Contact Resistance <5mΩ
Termination Soldering Insulation Resistance >100mΩ
Shell material Nickel Plated Brass Temperature range -25℃~ +85℃
Insert material PA66 Rated voltage 60V~30V
Contact material Brass with gold Plated Rated current 4A/1A

Nickel Plated 5p M8 Panle Mount Coupler TPU GF M8 Sensor Connector

Nickel Plated 5p M8 Panle Mount Coupler TPU GF M8 Sensor Connector

FAQ

Q1: Are you trading company or manufacturer ?

A1: We are factory.

Q2: How long is your delivery time?

A2: Generally it is 3-5 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.

Q3: What kind of connectors can you provide ?

A3: Our main products are : Screw type , Spring type, Barrier type, Pluggable type, Feed Through type, Din Rail type, Air plug, heavy duty type and Cables assembly.

Q4: What is your terms of payment ?

A4: We accept bank transfer, T/T, Paypal & Western Union, or other payment methods.
