Specifications
Brand Name :
XIANGYICUSTOM
Model Number :
insulation fixing washer discs
Certification :
ISO9001-2015
Place of Origin :
China
MOQ :
10000 pcs
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
2000000 pcs per 20 days
Delivery Time :
15 work days
Packaging Details :
1000pcs Per Bag, 10 Bags Per Carton
Name :
36mm Tile Backer Board Insulation Fixing Washer Discs
Factory Name :
Hebei Xiangyi Metal Product Co.,ltd
Material :
galvanized steel or stainless steel
Size :
36mm
Usage :
fix tile backer boards to walls and floors
Thickness :
0.6mm
Package :
100pcs Per Bag, 100 Bags Per Carton
Center hole diameter :
5mm
Sample :
supported
Small order :
available
Description

36mm Tile Backer Board Insulation Fixing Washer Discs For Walls And Floors

Description Of 36mm Insulation Fixing Washer Discs For Tile Backer Boards

36mm Insulation Fixing Washer Discs, made from galvanized steel material or stainless

steel material, are specifically designed to fix insulation tile backer boards to walls and

floors.

material thickness diameter center hole
galvanized steel 0.6mm 36mm 5mm
stainless steel 0.6mm 36mm 5mm

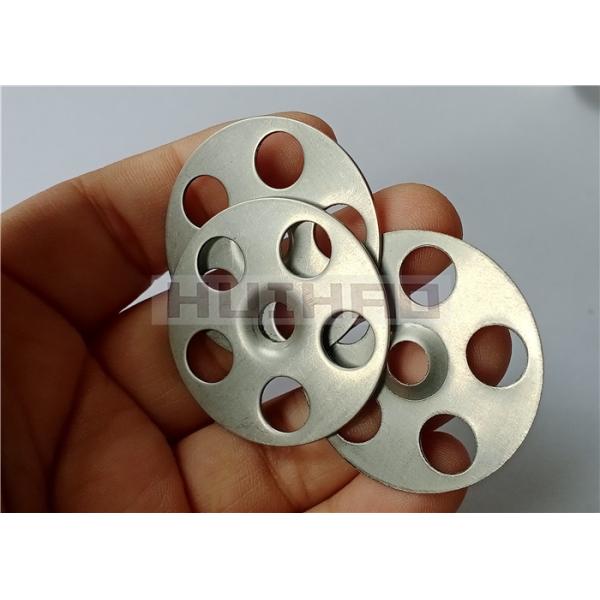

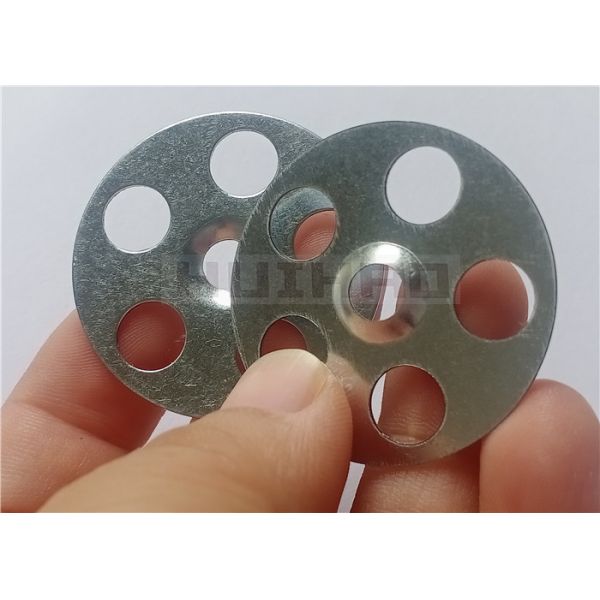

Detailed Image Of The 36mm Insulation Fixing Washer Discs For Tile Backer Boards

36mm Tile Backer Board Insulation Fixing Washer Discs For Walls And Floors
36mm Tile Backer Board Insulation Fixing Washer Discs For Walls And Floors

The Advantages Of The 36mm Insulation Fixing Washer Discs For Tile Backer Boards

1. 36mm Tile Backer Board Insulation Fixing Washer Discs provide an easy and secure way

to fix insulation boards to floors and walls.

2. 36mm Tile Backer Board Insulation Fixing Washer Discs are countersunk, which allows the

screw head to pull into the board but the outer rim of the disc to remain flush with the

board surface.

3. 36mm Tile Backer Board Insulation Fixing Washer Discs have a perforated surface, which

provides maximum board surface exposure. This allows standard adhesives and plasters to

adhere to the board surface, minimizing the risk of surface delamination or damage.

4.
36mm Tile Backer Board Insulation Fixing Washer Discs are made from stainless steel 304

material or galvanized steel material for anti-corrosion usage.

Application Of The 36mm Hard Tile Backer Board Washer Discs

1. When using the 36mm insulation fixing washer discs to fix tile backer boards

to walls and floors, it is recommended to use 15 washers per 1200 x 600mm board.

2. This is only a guide and specifically it's depended on the type, thickness, sub surface and

what is to be put onto the board.

3. It is the installers responsibility to use the correct number of discs to hold the tile backer

board in place.

Related Products Of 36mm Insulation Fixing Washer Discs For Tile Backer Boards

36mm Tile Backer Board Insulation Fixing Washer Discs For Walls And Floors

Item: 35mm Metal Fixing Washer Discs For Tile Backer Boards

Material: Galvanized steel or stainless steel

Size: 35mm

Center Hole: 5mm

Thickness: 0.7mm

36mm Tile Backer Board Insulation Fixing Washer Discs For Walls And Floors

Item: 32mm 4-Claw Tile Backer Board Washer Discs

Material: Galvanized steel or stainless steel

Size: 32mm

Center Hole: 5mm

Thickness: 0.6mm

Package Of The Insulation Board Fixing Washer Discs For Tile Backer Boards

1. 50 pcs/bag, 100 pcs/bag, 200 pcs/bag or as your requirement

2. paper carton

3. wood pallet

36mm Tile Backer Board Insulation Fixing Washer Discs For Walls And Floors

FAQ Of XIANGYI Metal Products Co.,Ltd.

1. Are you a manufacture or a trader?

We are a manufacture, located in Hebei province, China.

2. Do you support product customization?
Yes, the material, the surface finish, the size, all could be customized.

3. Do you support package customization?

Yes, the package could be customized according to your need.

4. Can i get samples?
Yes, samples for quality confirm are supported.

5. Can you accept small orders?

Yes, for common size, we could accept small orders.
