1.0mm Wire Architectural Metal Coil Curtain With Ceiling Mounted Track System
1.0mm Wire Architectural Metal Coil Curtain With Ceiling Mounted Track System
1.0mm Wire Architectural Metal Coil Curtain With Ceiling Mounted Track System
1.0mm Wire Architectural Metal Coil Curtain With Ceiling Mounted Track System
Specifications
Brand Name :
XIANGYI
Model Number :
Metal Coil Curtain
Certification :
ISO9001
Place of Origin :
China
MOQ :
10 Square meter
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
800 square meter per week
Delivery Time :
15 days after confirm the order
Packaging Details :
Waterproof paper with plastic inside; wooden case outside. Or we can also according to the special requirements of customers.
Product Name :
Metal Coil Curtain
Material :
Aluminum,stainless steel ,carbon steel
Surface treatment :
Spay Coated ,anodic oxidation
Color :
silver, brass yellow, ultra black, Chinese red, purple, bronze, pearl gray, etc.
Wire diameter :
0.8mm,1.0mm,1.2mm,1.5mm
Aperture size :
4x4mm,5mmx5mm,6mmx6mm,8mmx8mm,9mmx9mm
width and height :
to be request
Usage :
Curtains,Ceiling,Room divider,Used as decorative curtains,Screen
Description

1.0mm Wire Architectural Metal Coil Curtain With Ceiling Mounted Track System

Qucik Detail Of Architectural Metal Coil Curtain:

Material :Al-Mg Alloy wire m,stainless steel wire ,copper wire
Wire diameter:0.8mm-1.2mm Aperture size:4mm-10mm
Weight:1.7 kg/m2 - 6 kg/m2 (depending on shape and material chosen)
Surface treatment :pickling, anodic oxidation, baking varnish
Color:silver, brass yellow, ultra black, Chinese red, purple, bronze, pearl gray, etc.
Open area :40%-85% Width&height : to be request

Architectural Metal Coil Curtain Specification:

Material Wire diameter Aperture Thickness Weight
Carbon steel 0.9mm 6.3mm 3/16″ 5.8mm 4.0kg/m2
1.2mm 8.5mm 1/4″ 7.1mm 6.0kg/m2
1.0mm 6.8mm 1/4″ 6.5mm 5.5kg/m2
Stainless steel 1.0mm 8.4mm 1/4″ 6.7mm 3.5kg/m2
1.2mm 6.8mm 3/16″ 6.5mm 5.8kg/m2
1.2mm 8.5mm 1/4″ 7.1mm 5.0kg/m2
Aluminium-magnesium alloy 1.2mm 8.5mm 1/4″ 7.1mm 2.0kg/m2
1.2mm 6.8mm 3/16″ 6.5mm 2.5kg/m2
1.0mm 5.5mm 3/16″ 5.5mm 1.7kg/m2
2.0mm 12mm 1/2″ 12.0mm 3.kg/m2

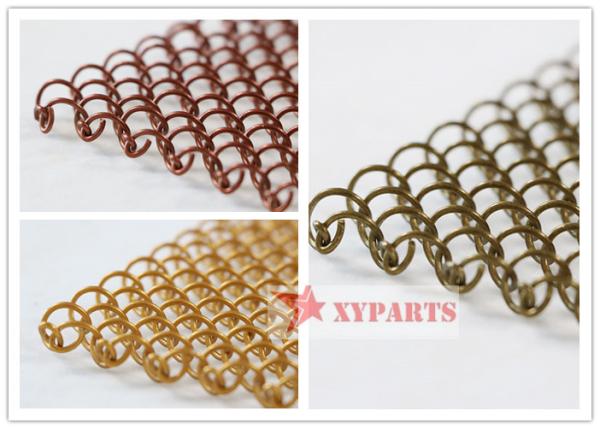

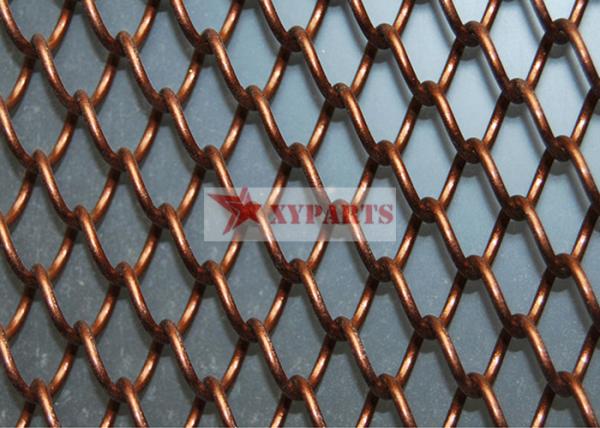

Aluminum Chain Mail Metal Mesh Curtain Pic :


1.0mm Wire Architectural Metal Coil Curtain With Ceiling Mounted Track System

Decoration

It has the characterstics of dynamic fashion and the metal texture,which will make the high-end hotels ,restaurants,opera houses and exhibition halls more magnificent

Durable

Compared with tradional curtain ,metal coil drapery has excellent fireproof property,ventilation,and light transmission,this it has a longger service life

1.0mm Wire Architectural Metal Coil Curtain With Ceiling Mounted Track System
1.0mm Wire Architectural Metal Coil Curtain With Ceiling Mounted Track System

Customizable

Metal curtain begins with a base metal wire available in varieties of steel ,aluminum,brass ,copper,or stainless steel ,so we can help you select the best material and gauge based on your project's requirements

Architectural Metal Coil Curtain Installation Parts :

surface treatment track size material thickness Pulley material
Electrophoresis 11mmx15mmx30mm(h) 1.4mm aluminum stainless steel/ PU
pulley qty track type install type seal
8pcs per meter

Straight track

Curved track

top install

side install

 to be order
install process Hole mounting with a 6 mm drill

1.0mm Wire Architectural Metal Coil Curtain With Ceiling Mounted Track System

Architectural Metal Coil Curtain Application :


• Space divider • Wall decoration • Ceiling decoration
• Window curtain • Handrail balustrade • Elevator cab mesh
• Facade cladding • Glass laminated wire • Sunshade screen
• Security door • elevator cabins screen • Floor covering fabrics
• Wire mesh facades • Shade screens • Architecture ceilings
• Metal draperies for walls • Partition and isolation screens • Staircases isolation screen
1.0mm Wire Architectural Metal Coil Curtain With Ceiling Mounted Track System
