1mmx10 Mm Carbon Steel Insulation Cd Weld Pins For Precision Instruments
1mmx10 Mm Carbon Steel Insulation Cd Weld Pins For Precision Instruments
1mmx10 Mm Carbon Steel Insulation Cd Weld Pins For Precision Instruments
1mmx10 Mm Carbon Steel Insulation Cd Weld Pins For Precision Instruments
1mmx10 Mm Carbon Steel Insulation Cd Weld Pins For Precision Instruments
1mmx10 Mm Carbon Steel Insulation Cd Weld Pins For Precision Instruments
Specifications
Brand Name :
XIANGYI
Model Number :
10mm Insulation CD Weld Pins
Certification :
ISO9001-2015
Place of Origin :
HEBEI
MOQ :
5000 PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100,000 PCS per week
Delivery Time :
within 15 days after confirm the order
Packaging Details :
1. 500/1000 in one plastic bag ,2.then in box ,3. to be request
Product Name :
10mm Insulation CD Weld Pins
Material :
stainless steel ,carbon steel ,copper
Surface treatment :
copper plated and galvanized
Diameter :
10ga ,12ga,14ga
Pin length :
30-200mm
Sample :
free
Packing :
500 or 1000 pcs in one plastic pin ,then in box
Application :
Precision Instruments
Description

1mmx10 Mm Carbon Steel Insulation CD Weld Pins For Precision Instruments

Quick Details Of Insulation CD Weld Pins :

Material Weld pins dia Weld pins length Head type
mild steel 1mm 10mm cd weld plain head
Surface treatment Application Custom size Services
copper plated contect thickness metal parts can make mold for spcial size design and manufacture

Insulation CD Weld Pins

Huihao company manufacturer all types of insulation CD weld pins ,the pin diameter is from 1mm to 5mm ,

the pin length is from 10mm to 370mm ,the smallest size we have done is 1mmx10mm ,the largest size we

have done is 4x370mm ,we can also accept custome size and material ,we have enough ability and

experience to design and make weld pins' mold and drawing

For the weld pins' material ,usually are mild steel ,hard steel ,annealing soft steel ,galvanized steel ,stainless

steel and aluminum alloy materials

we also supply accessories for the weld pins ,inclusing :insulation washer ,3-slots washer ,plastic dome

cap washer ,steel dome cap washer

We have various size for your reference ,special size pls contact us to make mold !

Insulation CD Weld Pins Specification :

Specification of Insulation CD Weld Pins
10ga(3.4mm) 12ga(2.7mm)
PIN DIA Flange Dia Pin Length Pin dia Flange dia pin length
3.4mm 5.6mm 1" 2.7mm,3mm 4.5mm 0.75"
3.4mm 5.6mm 1.5" 2.7mm,3mm 4.5mm 1"
3.4mm 5.6mm 2" 2.7mm,3mm 4.5mm 1.25"
3.4mm 5.6mm 2.5" 2.7mm,3mm 4.5mm 1.5"
3.4mm 5.6mm 3" 2.7mm,3mm 4.5mm 2''
3.4mm 5.6mm 3.5" 2.7mm,3mm 4.5mm 2.5"
3.4mm 5.6mm 4" 2.7mm.3mm 4.5mm 3"
3.4mm 5.6mm 4.5" 2.7mm.3mm 4.5mm 3.5"
3.4mm 5.6mm 5" 2.7mm.3mm 4.5mm 4'
3.4mm 5.6mm 5.5" 2.7mm.3mm 4.5mm 4.5"
3.4mm 5.6mm 6" 2.7mm.3mm 4.5mm 5"
3.4mm 5.6mm 6.5" 2.7mm.3mm 4.5mm 5.5"
3.4mm 5.6mm 7" 2.7mm.3mm 4.5mm 6"
3.4mm 5.6mm 8" 2.7mm.3mm 4.5mm 7"
3.4mm 5.6mm 10" 2.7mm.3mm 4.5mm 8"
2.7mm.3mm 4.5mm 9"

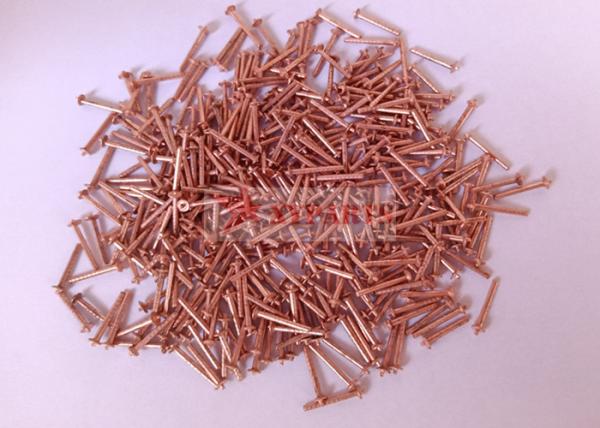

Pic Of Insulation CD Weld Pins :

1mmx10 Mm Carbon Steel Insulation Cd Weld Pins For Precision Instruments

Featurer Of Insulation CD Weld Pins :

Features of Insulation CD Weld Pins

BETTER PLATING

weld pins shanks Zinc and Chromate plated exceeding SMACNA standards and providing a professional appearance.Climatech weldpin shanks are copper plated.

REDUCED DOWN TIME

Consistent point quality reduces frequency of machine adjustments.

STRONGER WELDS

Hardened steel point assures positive electrical contact for complete sheet to pin fusion.

CORROSION RESISTANCE

Plating exceeds current SMACNA standards for corrosion resistance.

TEMPERATURE RANGE

CD Weld pins function properly over normally accepted operating range of temperatures of 0 degrees C to 121degrees C and are not adversely affected at temperatures of 0 degrees C to 287 degrees C.

VIBRATIONS

CD Weld pins will not fatigue or be physically affected by vibrations normally found in high velocity air handling systems.

Application Of Insulation CD Weld Pins :

The CD copper coating weld pin is a capacitor discharge weld insulation fastener, these insulation weld pins

work with a stud welding machine, weld the pins on the sheet metal, then put the insulation material through

the weld pins, press a self locking washer or metal clips or dome caps onto the pin, bend over or clip off the

pin to finish fastening insulation installation. Weld nails are usually used shipping industry.

1mmx10 Mm Carbon Steel Insulation Cd Weld Pins For Precision Instruments

Package Of Insulation Weld Pins :

>> Package

1. 500 pcs per bag, 10 bags per carton. 64 cartons per pallet.

2. to be your requirements.

>>> Delivery
Sample: DHL/EMS/UPS/TNT/EXPRESS
Large Order: we recommend you by SEA ,or by AIR if in an emergency.

1mmx10 Mm Carbon Steel Insulation Cd Weld Pins For Precision Instruments
