14ga X 2-1/2 Ss Rectangular Top Lacing Anchors To Secure Removable Insulating Blankets
14ga X 2-1/2 Ss Rectangular Top Lacing Anchors To Secure Removable Insulating Blankets
14ga X 2-1/2 Ss Rectangular Top Lacing Anchors To Secure Removable Insulating Blankets
14ga X 2-1/2 Ss Rectangular Top Lacing Anchors To Secure Removable Insulating Blankets
14ga X 2-1/2 Ss Rectangular Top Lacing Anchors To Secure Removable Insulating Blankets
14ga X 2-1/2 Ss Rectangular Top Lacing Anchors To Secure Removable Insulating Blankets
14ga X 2-1/2 Ss Rectangular Top Lacing Anchors To Secure Removable Insulating Blankets
14ga X 2-1/2 Ss Rectangular Top Lacing Anchors To Secure Removable Insulating Blankets
Specifications
Brand Name :
XIANGYI
Model Number :
rectangular top lacing anchors
Certification :
ISO9001-2015
Place of Origin :
China
MOQ :
10000 pcs lacing anchors
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
450000 pcs per 30 work days
Delivery Time :
15 work days
Packaging Details :
paper carton + wood pallet
Name :
Rectangular Top Lacing Anchors
Material :
stainless steel
Feature :
easy bending, easy installation
Head Size :
11x25mm
Application :
to secure insulation blanket
Pin Diameter :
14ga, 12ga
Head Type :
rectangular
Pin Length :
4-1/2" or 2-1/2”
Description

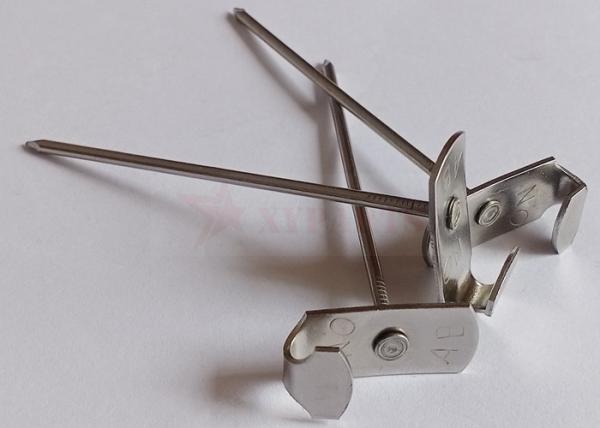

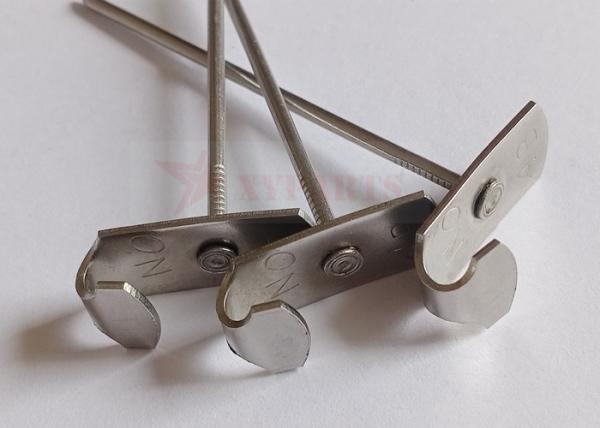

14GA X 2-1/2" SS Rectangular Top Lacing Anchors To Secure Removable Insulating Blankets

Quick Details Of The 14GA x 2-1/2" SS Rectangular Top Lacing Anchors:

Lacing anchors are primarily used in the fabrication of removable insulating blankets.

They are used in conjunction with insulation washers (speed clips), mesh, cloth, lacing wire,

lacing rings and other items

Item Square Head Lacing Anchors
Factory Xiangyi Parts

Material

Stainless Steel
Head Size 11x25mm
Head Thickness 1.0mm
Pin Diameter 2.0mm (14GA)
Pin Length 63mm (2-1/2")
Self Locking Washers 25mm, 30mm, 38mm etc.

14ga X 2-1/2

Specifications Of The Rectangular Top Lacing Anchors

1. Stainless steel is common material

2. Stamped "no ab" to denote 'no asbestos'.

3. The tabbed head is about 1" (25mm)across, and 7/16" (11mm) wide.

4. The nail can be 12 gauge (2.7mm) or 14 gauge (2.0mm) in pin diameter.

5. 2-1/2" (63mm )& 4-1/2" (114mm) are standard pin length

6. Typical application is for the fabrication of lacing blankets or removable covers.

7. This rectangular top lacing anchor is somewhat more economical than the standard lacing anchor and also serves to eliminate weight in the overall removable cover or blanket.

Common Size Of The Rectangular Top Lacing Anchors:

Nail Diameter Nail Length Head Wide Head Length
2.0mm 63.5mm 11mm 25mm
2.0mm 114mm 11mm 25mm
2.7mm 63.5mm 11mm 25mm
2.7mm 114mm 11mm 25mm

14ga X 2-1/2

14ga X 2-1/2

Related Products Of The Rectangular Top Stainless Steel Lacing Anchors

14ga X 2-1/2 14ga X 2-1/2

Name: Round Head Lacing Anchors

Material: Stainless Steel

Head Diameter: 22mm

Head Thickness: 1.0mm or 1.3mm

Pin Diameter: 2.0mm, 2.7mm, 3.0mm

Pin Length: 1-1/2" - 12"

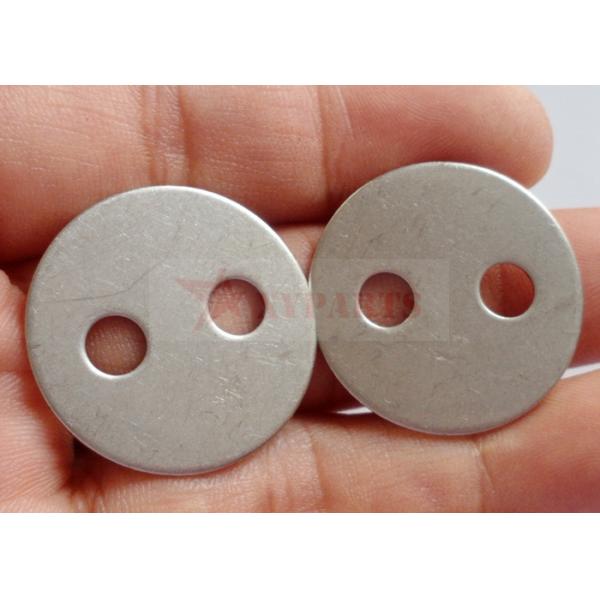

Name: Self Locking Washers

Material: Stainless Steel

Size: 25mm, 30mm, 32mm, 38mm

Used For: 2.0mm, 2.7mm, 3.0mm pins
14ga X 2-1/2 14ga X 2-1/2

Name: Self Locking Washers

Material: Stainless Steel

Size: 25mm, 30mm, 32mm, 38mm

Used For: 2.0mm, 2.7mm, 3.0mm pins

Name: Self Locking Washers

Material: Stainless Steel

Size: 38mm

Used For: 2.0mm, 2.7mm, 3.0mm pins
14ga X 2-1/2 14ga X 2-1/2

Name: Lacing Anchors

Material: Stainless Steel

Thickness: 1.0mm

Size: 25mm

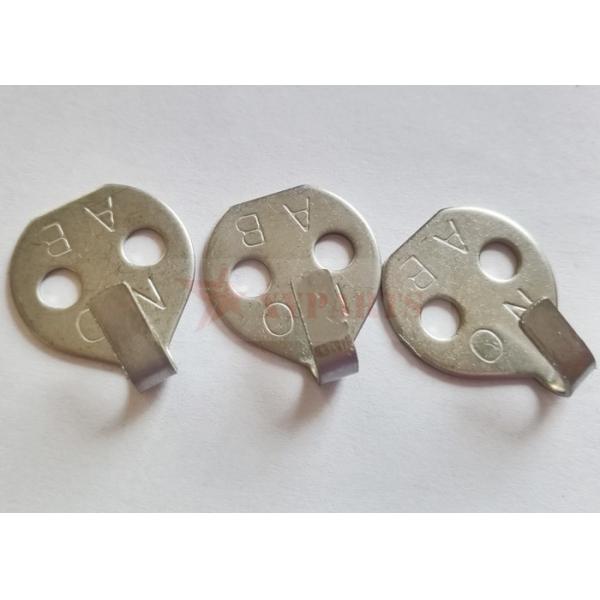

Name: Lacing Hooks

Material: Stainless Steel

Thickness: 1.0mm

Size: 22mm
14ga X 2-1/2 14ga X 2-1/2

Name: Lacing D Rings

Material: stainless steel

Size: 20x30mm

Wire Diameter: 3mm

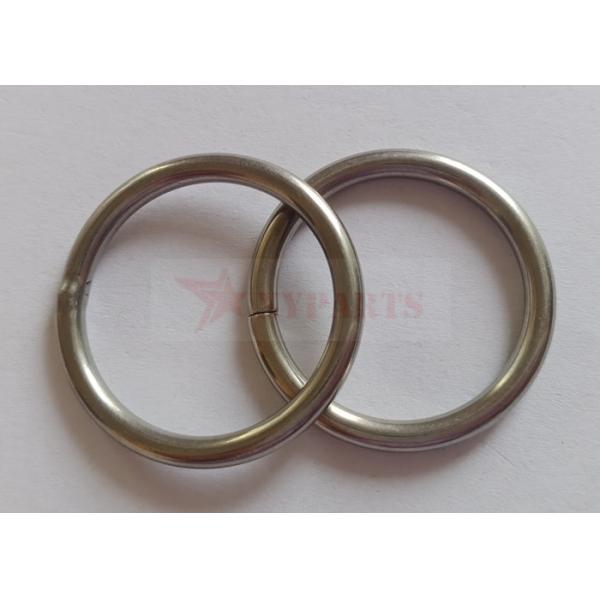

Name: Lacing O Rings

Material: stainless steel 304
Type: weld type
Wire diameter: 3mm
Inter diameter: 30mm

Application Of The Stainless Steel Lacing Anchors

1. Prepare insulation blanket

2. Press lacing anchor through blanket

3. Secure lacing anchor with self locking washer and bend the spindle

4. Apply insulation blanket

5. Secure blanket by lacing through hooks with lacing wire

14ga X 2-1/2

Package Of Stainless Steel Insulation Lacing Anchors :

Product Size(mm) Quantity Caton(cm) Weight
Lacing Anchors 12Gauge*2.5" 1000Pcs 26*26*18 8.6kgs
Lacing Anchors 12Gauge*4.5" 1000Pcs 26*26*25 9.9kgs
Lacing Anchors 14Gauge*2.5" 1000Pcs 26*26*18 10kgs
Lacing Anchors 14Gauge*4.5" 1000Pcs 26*26*25 12.3kgs
14ga X 2-1/2

FAQ Of Xiangyi Parts:

1. Are you a manufacture or a trader?

We are a manufacture, located in Hebei province, China.

2. Do you support product customization?
Yes, the material, the surface finish, the wire diameter, the length all could be customized.

3. Can i get samples?
Yes, samples for quality confirm are supported in our company.

4. How do you control and ensure product quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

5. What's your advantages?

Cooperate with us, we can ensure:

1) Competitive price: we sale what we manufacture.

2) On-time delivery: we have the auto-production line to ensure the on-time delivery.

3) Excellent quality: we have rich experience, our products are in line with international standard.

4) Good after-sale service: we offer good after-sale service for each order.
