Specifications
Brand Name :
XIANGYI
Model Number :
Weld Cup Head Pins
Certification :
ISO 9001
Place of Origin :
China
MOQ :
10.000 pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
350.000 pcs per month
Delivery Time :
15 days after confirm the order
Packaging Details :
carton+wooden pallet
Product name :
Weld Cup Head Pins
Material :
Mild steel ,stainless steel
Cup head :
30mm,25mm,20mm
Pin diameter :
2.7mm,3.0mm,3.4mm
Pin length :
15mm-250mm
Sample :
freely
OEM/ODM :
Support
Factory :
Yes
Description

Capacitor Discharge Cupped Head & Mini-Cup Weld Pins

Capacitor Discharge Cupped Head & Mini-Cup Weld Pins Product Introduce:

A quilting pin is simply a stainless steel cupped head pin. Cupped Head Insulation Pins simplify the

permanent installation of "Duct Liner" or other insulation materials by securing this insulation to duct

work or to other heating, ventilating or air conditioning sheet metal configurations and housings.

They are made up of a weld pin and a staked on retaining washer. This product is usually applied

with a capacitor discharge stud welder. It can also be used as a hookless lacing anchor to secure

insulation inside fabricated blankets.

Cup Heads are widely accepted as labor saving fasteners in the thermal and acoustical insulation

markets for use in industrial and commercial applications.

Specification of Capacitor Discharge Cupped Head & Mini-Cup Weld Pins :

Round base Pin diameter Pin length Base type
30mm 14ga,12ga 38mm-250mm

Base with paper

base without paper

35mm 12ga 10ga 25mm,38mm
25mm 12ga,10ga,3mm 25mm,38mm
Material Mild steel Stainless steel Aluminum alloy
Surface treatment Zinc/copper coated Cleaning no

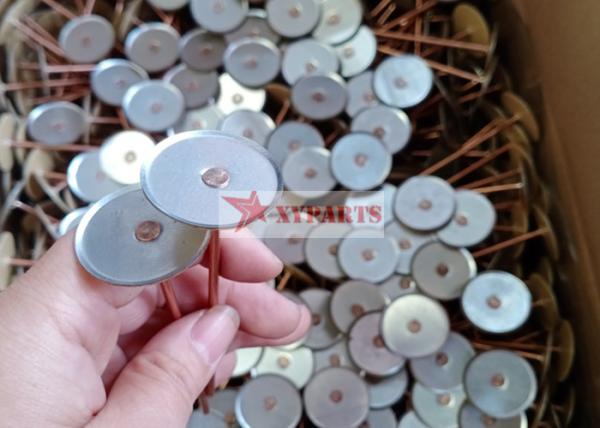

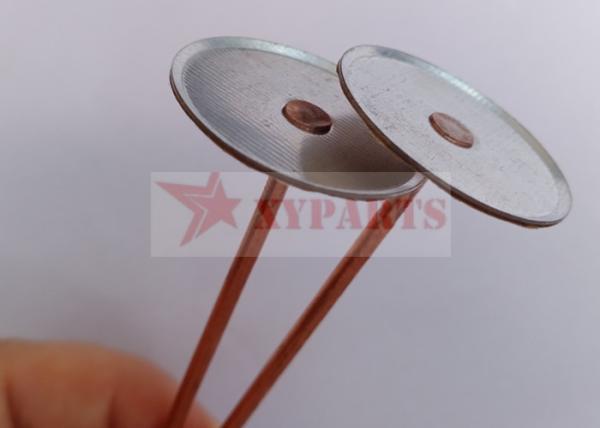

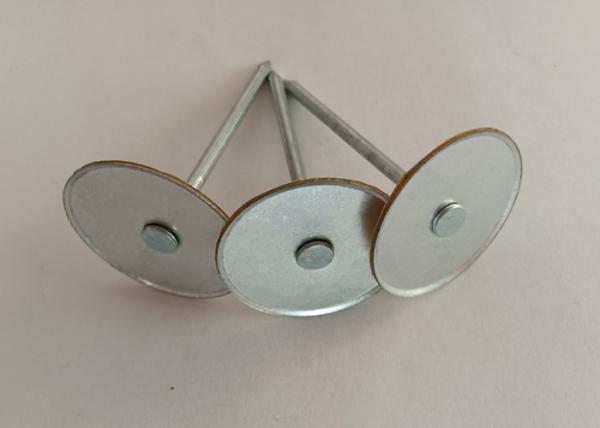

Pic Of Capacitor Discharge Cupped Head & Mini-Cup Weld Pins:

1-3/161-3/161-3/16

Feature of Capacitor Discharge Cupped Head & Mini-Cup Weld Pins:

BETTER PLATING

weldpin shanks Zinc and Chromate plated exceeding SMACNA standards and providing a professional appearance.Quilting Cup Head Insulation Pins are copper plated.

REDUCED DOWN TIME

Consistent point quality reduces frequency of machine adjustments.

STRONGER WELDS

Hardened steel point assures positive electrical contact for complete sheet to pin fusion.

CORROSION RESISTANCE

Plating exceeds current SMACNA standards for corrosion resistance.

TEMPERATURE RANGE

Quilting Cup Head Insulation Pins function properly over normally accepted operating range of temperatures of 0 degrees C to 121degrees C and are not adversely affected at temperatures of 0 degrees C to 287 degrees C.

VIBRATIONS

Quilting Cup Head Insulation Pins will not fatigue or be physically affected by vibrations normally found in high velocity air handling systems.

Package of Capacitor Discharge Cupped Head & Mini-Cup Weld Pins:

1-3/16 1-3/16

Package : usually the package is 800/1000/1500 /2000/3000/5000 pcs in carton on pallet

800/1000/15000/2000 in a drum on the pallet

Delivery :for big you choose by sea

for small order or agercy order ,you can choose express by DHL,Fedex ,UPS ,ect

we can also supply door to door service by sea ,by air

XiangYi Company Service:

package service: Carton, Fumigation-Free Wooden Box, Fumigation-Free Tray, Warning Tape, Color

Label, Custom Logo
delivery service:by sea, by air and door to door service
stock service: we have common size of Insulation Fastener Cup Head Pins with Mechanized packing

product in stock.
sample services: supply free sample for Insulation Fastener Cup Head Pins. special size of Mechanized

packing , need customer paid the mould cost.
quality service: iso 9001-2008, material test cerfication, factort test report and third party test report from

SGS and BV.
We are willing to rush orders and offer you competitive prices for our products and services. You won't

regret choosing us as your supplier for Insulation Fastener Cup Head Pins, studs, and any other supplies

you need
