1-1/8 Capped Cd Weld Pins Fasten Insulation To Inside Of Sheet Metal Air Ducts
1-1/8 Capped Cd Weld Pins Fasten Insulation To Inside Of Sheet Metal Air Ducts
1-1/8 Capped Cd Weld Pins Fasten Insulation To Inside Of Sheet Metal Air Ducts
1-1/8 Capped Cd Weld Pins Fasten Insulation To Inside Of Sheet Metal Air Ducts
1-1/8 Capped Cd Weld Pins Fasten Insulation To Inside Of Sheet Metal Air Ducts
1-1/8 Capped Cd Weld Pins Fasten Insulation To Inside Of Sheet Metal Air Ducts
Specifications
Brand Name :
HUIHAOCUSTOM
Model Number :
Capped Capacitor Discharge (CD) Weld Pins
Certification :
ISO9001-2015
Place of Origin :
CHINA
MOQ :
10000 pcs
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
7000000 pcs per month
Delivery Time :
10 WORK DAYS
Packaging Details :
PP BAGS+CARTON+PALLET/CASE
Name :
Capped Capacitor Discharge (CD) Weld Pins 1-1/8"
Washers type :
Round shape
Material :
Mild steel
Washers size :
30mm
Finished :
Galvanized steel
Pin length :
28.6mm / 1-1/8"
Application :
Fasten Insulation To The Inside Of Sheet Metal Air Ducts
Pin Diameter :
2.7mm
Description

Capped Capacitor Discharge (CD) Weld Pins To Fasten Insulation To The Inside Of Sheet Metal Air Ducts

Quick Details Of The 1-1/8" Capped Capacitor Discharge (CD) Weld Pins

Capped Capacitor Discharge (CD) Weld Pins are used to fasten insulation to the inside

of sheet metal air ducts. These fasteners are usually applied when the ductwork is being

fabricated.

The fasteners have been specifically designed to work with all currently available duct liners

and Capacitor Discharge (CD) type welding application equipment. Capped CD Weld Pins are

available for 12,25,38,50,75 and 100mm insulation.

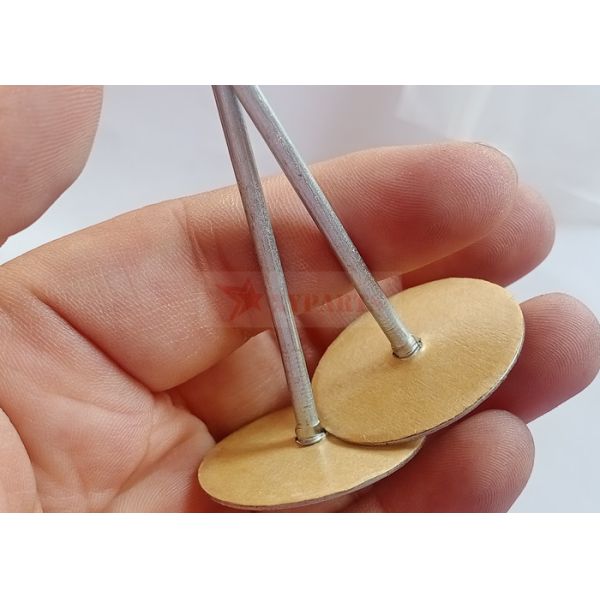

Item: 1-1/8" Capped Capacitor Discharge (CD) Weld Pins

Material: Galvanized steel

Head Size: 30mm
Head Edge: Beveled edge washer to prevent cutting of insulation material.
Pin Diameter: 2.7mm
Pin Length: 1-1/8" / 28.6mm
1-1/8

Specifications Of The Capped Capacitor Discharge (CD) Weld Pins

Cup Head Weld Pins

Head Material

Head Dia

Pin Material

Pin Diameter

Pin Length

Galvanized steel

1-3/16”

Galvanized steel or copper coated steel

11ga (3mm)

12ga (2.7mm)

3/8”-12”

Galvanized steel

1-3/16”

Galvanized steel or copper coated steel

11ga (3mm)

12ga (2.7mm)

3/8”-12”

Galvanized steel

1-1/2”

Galvanized steel or copper coated steel

11ga (3mm)

12ga (2.7mm)

3/8”-12”

Galvanized steel

1-1/2”

Galvanized steel or copper coated steel

11ga (3mm)

12ga (2.7mm)

3/8”-12”
1-1/8

Duct Air Pins

Material

Head Diameter

Pin Diameter

Pin Length

Galvanized Steel

1” or 1-3/16”

10ga (3.4mm)

1/2”

Galvanized Steel

1” or 1-3/16”

10ga (3.4mm)

3/4”

Galvanized Steel

1” or 1-3/16”

10ga (3.4mm)

1”

Galvanized Steel

1” or 1-3/16”

10ga (3.4mm)

1-1/8”

Galvanized Steel

1” or 1-3/16”

10ga (3.4mm)

1-1/2”

Galvanized Steel

1” or 1-3/16”

10ga (3.4mm)

2”
1-1/8

Application Of The Capped Capacitor Discharge (CD) Weld Pins

1-1/8

1. This product is usually applied with a capacitor discharge stud welder.

2. The method of application is to place the insulation onto a metal surface, push the CD weld pins through the insulation, and weld affix (mount) the entire fabrication in one step.

5. Cup head CD weld pins are widely accepted as labor saving fasteners in the thermal and acoustical insulation markets primarily for commercial type insulation applications.

Recommended for

Pin length before welding

1/2" insulation(all densities)

12.67mm

1" insulation(1-1/2"ib density)

17.63mm

1" foam

25.55mm

1" insulation(3ib densities)

23.72mm

1-1/2" insulation(all densities)

28.42mm

2" insulation(1-1/2"-2" ib density)

37.95mm

2" insulation(3ib densities)

48.77mm

3" insulation(all densities)

69.85mm

4" insulation(all densities)

95.00mm

Package Of The Capped Capacitor Discharge (CD) Weld Pins

1. 2000 pcs / 3000 pcs/ 5000 pcs per carton

2. 36 cartons per pallet
3. or according to your requirement.
1-1/8
