Galvalume Coated Steel Stress Pressure Plates For Insulation Multiple Layered Roofing Membranes
Galvalume Coated Steel Stress Pressure Plates For Insulation Multiple Layered Roofing Membranes
Galvalume Coated Steel Stress Pressure Plates For Insulation Multiple Layered Roofing Membranes
Galvalume Coated Steel Stress Pressure Plates For Insulation Multiple Layered Roofing Membranes
Galvalume Coated Steel Stress Pressure Plates For Insulation Multiple Layered Roofing Membranes
Galvalume Coated Steel Stress Pressure Plates For Insulation Multiple Layered Roofing Membranes
Galvalume Coated Steel Stress Pressure Plates For Insulation Multiple Layered Roofing Membranes
Galvalume Coated Steel Stress Pressure Plates For Insulation Multiple Layered Roofing Membranes
Specifications
Brand Name :
HUIHAOCUSTOM
Model Number :
pressure plates
Certification :
ISO9001-2015
Place of Origin :
China
MOQ :
10000 pcs
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
30000pcs per day
Delivery Time :
10 work days
Packaging Details :
100 pcs per pp bag, 10 bags per carton
Name :
Galvalume Coated Steel Stress Pressure Plates
Usage :
For Insulation Multiple Layered Roofing Membranes
thickness :
0.5mm-1mm
diameter :
47mm-75mm
material :
high hardness steel with thickness zinc coated
Standard :
ISO9001
Type :
roofing washer
factory :
hebei xiangyi
Service :
OEM ODM,customization
Specification :
accoring to drawing or as requirement
Description

Galvalume Coated Steel Stress Pressure Plates For Insulation Multiple Layered Roofing Membranes

Specification details of Galvalume Coated Steel Stress Pressure Plates

specification details of Galvalume Coated Steel Stress Pressure Plates

Galvanized steel insulation washers

  • diameter:74mm
  • thickness:0.5mm
  • center hole:4.5mm
  • Finish: AZ50 Galvalume
  • Available pre-assembled to #12 hex head

Seam roofing plate washer

  • Diameter:50mm
  • thickness:1mm
  • center hole: 6mm
  • INDUSTRY: CONSTRUCTION, ROOFING
  • Use in applications approved by the roofing system manufacturer.

Benefits of Galvalume Coated Steel Stress Pressure Plates

  • Can be used on walls where there is a hard surface that the membrane is being attached to.
  • Designed to be used for wall/base attachments or around penetrations, such as pipes or angle changes (Important: Drill 2" Steel Wall Plates are NOT for use as membrane seam plates in the field of the roof).
  • Compatible Fastener - Drill #12 , #14, #15 or CD-10 Fasteners. Fastener type selection is dependent on the substrate that the Drill- 2" Steel Wall Plate is being fastened.
  • round plates for securing insulation and for lap seam fastening in single-ply applications

  • Premium coating to reduce corrosion
  • Superior pull strength
  • Professional quality

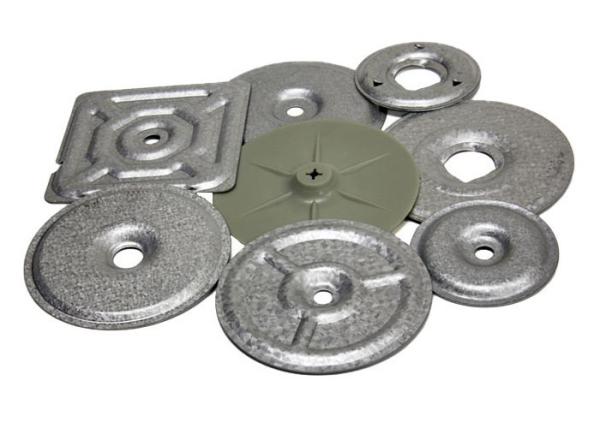

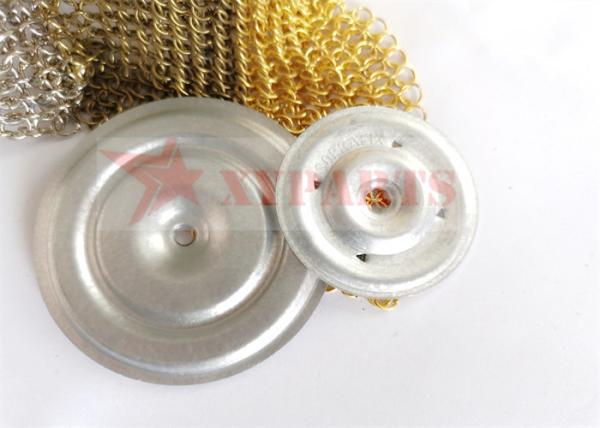

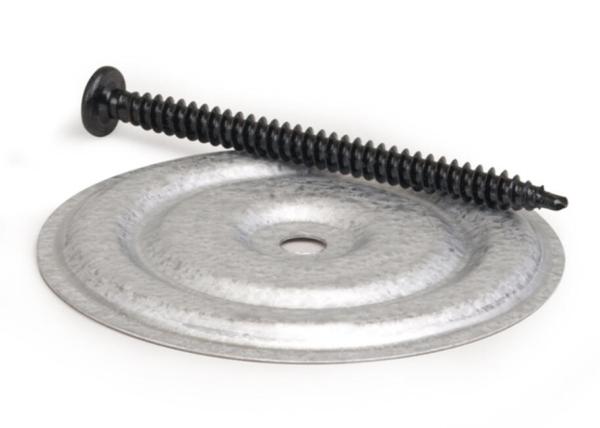

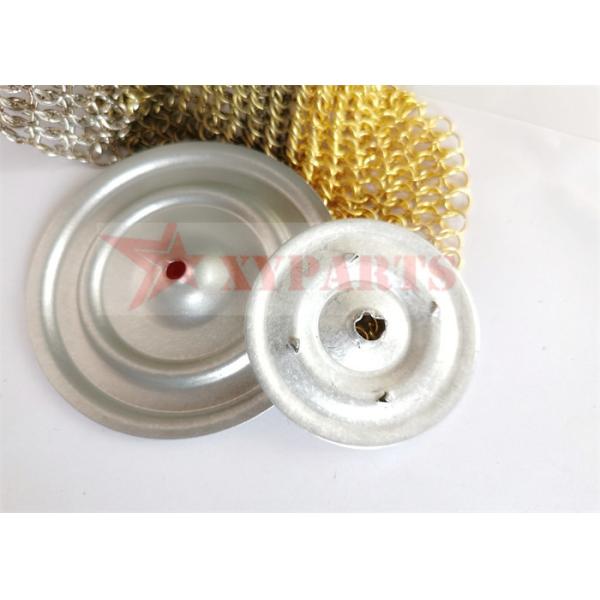

Image details of the Galvalume Coated Steel Stress Pressure Plates

Galvalume Coated Steel Stress Pressure Plates For Insulation Multiple Layered Roofing Membranes

HEBEI XIANGYI METAL PRODUCT CO LTD

HISTORY

Established in 2011, XIANGYI insulation fasteners Products has been a trusted supplier of Factory Mutual-approved insulation fasteners products for much of the commercial roofing industry, shipbuilding industry, building insulation.

We're big on service.

There’s more to Fixing Point than our products. Whether by phone or in person, you’ll speak to someone who knows their stuff; someone who’ll give you the very best technical support there and then. They’ll pinpoint the products for your project, visiting you on site if that’s the way of finding the right match.

Once you’ve placed your order, you’ll get the products you asked for – quickly. And you’ll have a single point of contact for any queries along the way.

Galvalume Coated Steel Stress Pressure Plates For Insulation Multiple Layered Roofing MembranesGalvalume Coated Steel Stress Pressure Plates For Insulation Multiple Layered Roofing Membranes
