Stainless Steel Cup Head Insulation Pins For Insulation Shell Fixed With Speed Clip
Stainless Steel Cup Head Insulation Pins For Insulation Shell Fixed With Speed Clip
Stainless Steel Cup Head Insulation Pins For Insulation Shell Fixed With Speed Clip
Stainless Steel Cup Head Insulation Pins For Insulation Shell Fixed With Speed Clip
Stainless Steel Cup Head Insulation Pins For Insulation Shell Fixed With Speed Clip
Stainless Steel Cup Head Insulation Pins For Insulation Shell Fixed With Speed Clip
Stainless Steel Cup Head Insulation Pins For Insulation Shell Fixed With Speed Clip
Stainless Steel Cup Head Insulation Pins For Insulation Shell Fixed With Speed Clip
Specifications
Brand Name :
HUIHAOCUSTOM
Model Number :
Quilting Pins-30
Certification :
ISO9001-2015
Place of Origin :
CHINA
MOQ :
30000
Payment Terms :
L/C, D/P, T/T, D/A
Supply Ability :
450000 pcs per month
Delivery Time :
7 work days
Packaging Details :
1000 pcs per carton
Produc name :
Quilting Pins
type :
cup head insulation pins
base size :
30mm
pin diameter :
2mm, 2.2mm, 2.5mm
pin length :
100-280mm
pin material :
soft anneaded stainless steel wire
company type :
manufacturer
OEM/ODM :
support
Description

Stainless Steel Cup Head Insulation Pins For Insulation Shell Fixed With Speed Clip

Quick details of the cup head quilting pins

  • Base type: 30mm Beveled Edge Cap
  • Surface treatment: Better Plating:Zinc and Chromate plating exceeds SMACNA standards and gives a more professional appearance.
  • Pin diameter:2MM, 2.2MM, 2.5MM
  • Pin materical: must choose soft anneaded stainless steel wire. Copper material is for special order.
  • easy to bend when fixing roofing
  • Riveting firmly:when bended the cup head base is not separsted from the pin
  • Fixing parts: round self locking washer, square locking washer and speed clips.
  • Application: connect insulation shells

Specification of the cup head quilting pins

drawing base size pin diameter pin length material
Stainless Steel Cup Head Insulation Pins For Insulation Shell Fixed With Speed Clip 30mm

2.0mm

2.2mm

2.5mm

 100mm - 280mm ms, ss.copper

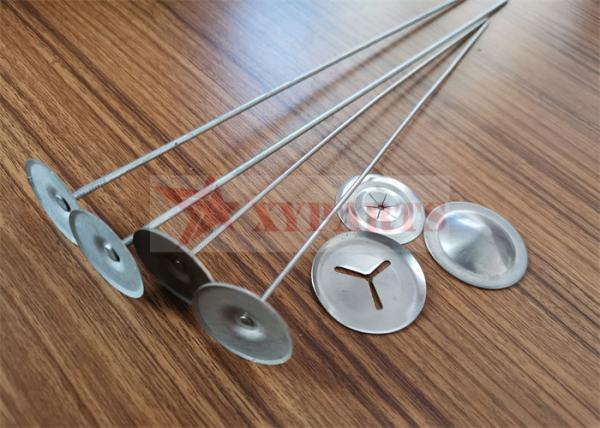

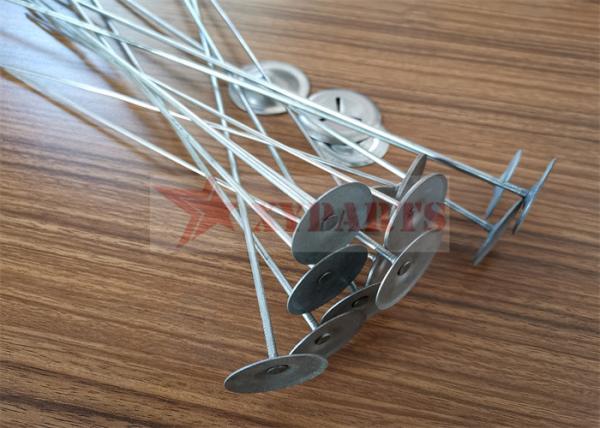

Images of the cup head quilting pins

Stainless Steel Cup Head Insulation Pins For Insulation Shell Fixed With Speed Clip

Stainless Steel Cup Head Insulation Pins For Insulation Shell Fixed With Speed Clip

Stainless Steel Cup Head Insulation Pins For Insulation Shell Fixed With Speed Clip

Fixing parts- self locking washer and speed clips (30mm, 38mm, 50mm, 65mm)

Stainless Steel Cup Head Insulation Pins For Insulation Shell Fixed With Speed Clip

Stainless Steel Cup Head Insulation Pins For Insulation Shell Fixed With Speed Clip

HEBEI XIANGYI COMPANY

Stainless Steel Cup Head Insulation Pins For Insulation Shell Fixed With Speed ClipStainless Steel Cup Head Insulation Pins For Insulation Shell Fixed With Speed Clip

Stainless Steel Cup Head Insulation Pins For Insulation Shell Fixed With Speed Clip
