M3 Aluminum Alloy Deck Board Bi Metallic CD Weld Pins With Speed Clips
M3 Aluminum Alloy Deck Board Bi Metallic CD Weld Pins With Speed Clips
M3 Aluminum Alloy Deck Board Bi Metallic CD Weld Pins With Speed Clips
M3 Aluminum Alloy Deck Board Bi Metallic CD Weld Pins With Speed Clips
M3 Aluminum Alloy Deck Board Bi Metallic CD Weld Pins With Speed Clips
M3 Aluminum Alloy Deck Board Bi Metallic CD Weld Pins With Speed Clips
M3 Aluminum Alloy Deck Board Bi Metallic CD Weld Pins With Speed Clips
M3 Aluminum Alloy Deck Board Bi Metallic CD Weld Pins With Speed Clips
Specifications
Brand Name :
HUIHAOCUSTOM
Model Number :
SAL-M3
Certification :
ISO9001-2015
Place of Origin :
CHINA
MOQ :
10000 PCS
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
280000 PCS PER 30 DAYS
Delivery Time :
10 WORK DAYS
Packaging Details :
500pcs Bimetallic Insulation Pins PER PE bag, 10 bags per carton
Name :
CD Weld Bi-Metallic Pins
pin type :
Aluminum base flange
pin diameter :
2.7 mm , m3
Pin length :
38mm -260mm
pin material :
stainless steel 304 / 316
Fixing parts :
speed clips
technical :
stamped
company type :
manufacturer
Factory name :
XIANGYI METAL PRODUCT
Description

M3 Aluminum Alloy Deck Board CD Weld Bi-Metallic Pins With Speed Clips

As a manufacturer, we are able to offering not only standard Weld Studs, but also special design studs and pins. If you do not find the specific information you are looking for, please contact us.

Quick details of the cd weld bi-metallic pins

  • small order: We stock at our purpose-built office and factory complex at any given time. This means we can fulfil orders of any complexity level.
  • Certification: ISO9001
  • SAE 1006,1008, 1010(America standards) EN ISO 13918:1998
  • The studs and raw material specifications mentioned conform with EN ISO 13918 and EN ISO 14555.
  • base type: aluminum base, steel weld base, stainless steel base, brass weld base

Technical data of cd weld bi-metallic pins

common size of M3 Aluminum Alloy Bi-metallic Pins With Speed Clips

BI-Metallic Pin diameter

base size

length

2.7mm

8x11

38 - 280mm

3mm

8x11

38 - 280mm

3.4mm

8x11

38 - 380mm

Metal Weld Base Bimetallic Insulation Pins MATERIAL

STANDARD OF MATERIAL

Low Carbon Mild Steel 4.8 (weldable) EN 20898-1
Stainless Steel A2-50 (weldable) EN ISO 3506-3
Aluminium Alloy AlMg3 EN 573-3
Pure Aluminium EN 573-3
Lead Free Brass 4.8 (weldable) ISO 426 –1 / ISO 1638

Features of cd weld bi-metallic pins

features of M3 Aluminum Alloy Bi-metallic Pins With Speed Clips

BETTER PLATING

weldpin shanks Zinc and Chromate plated exceeding SMACNA standards and providing a professional appearance.Climatech weldpin shanks are copper plated.

REDUCED DOWN TIME

Consistent point quality reduces frequency of machine adjustments.

STRONGER WELDS

Hardened steel point assures positive electrical contact for complete sheet to pin fusion.

CORROSION RESISTANCE

Plating exceeds current SMACNA standards for corrosion resistance.

TEMPERATURE RANGE

CD Weld pins function properly over normally accepted operating range of temperatures of 0 degrees C to 121degrees C and are not adversely affected at temperatures of 0 degrees C to 287 degrees C.

VIBRATIONS

CD Weld pins will not fatigue or be physically affected by vibrations normally found in high velocity air handling systems.

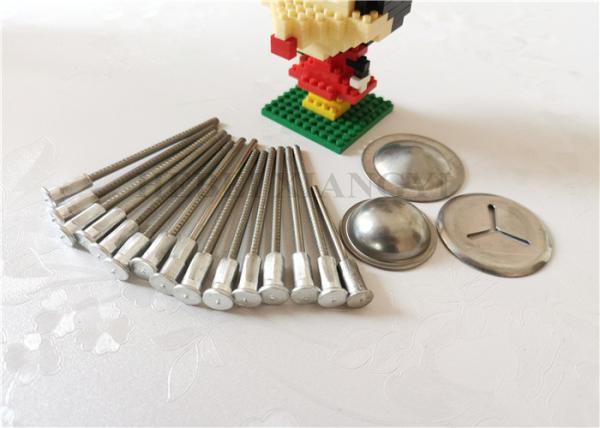

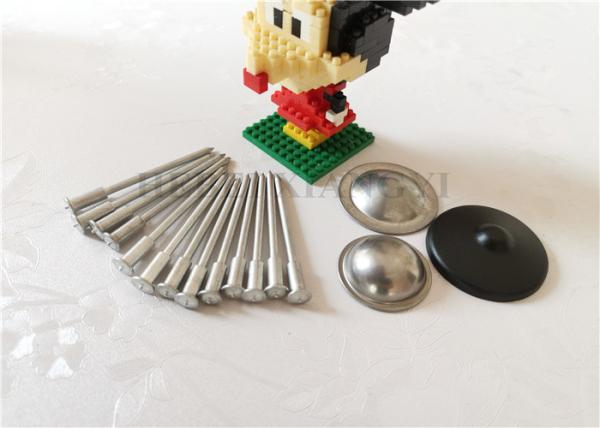

Images details of the bi-metallic pins

M3 Aluminum Alloy Deck Board Bi Metallic CD Weld Pins With Speed ClipsM3 Aluminum Alloy Deck Board Bi Metallic CD Weld Pins With Speed Clips

XIANGYI METAL PRODUCT CO.,LTD

M3 Aluminum Alloy Deck Board Bi Metallic CD Weld Pins With Speed ClipsM3 Aluminum Alloy Deck Board Bi Metallic CD Weld Pins With Speed Clips
