Weld Type Insulation Steel Duct Linner Pins Fixing Glasswool With Stud Welder
Weld Type Insulation Steel Duct Linner Pins Fixing Glasswool With Stud Welder
Weld Type Insulation Steel Duct Linner Pins Fixing Glasswool With Stud Welder
Weld Type Insulation Steel Duct Linner Pins Fixing Glasswool With Stud Welder
Weld Type Insulation Steel Duct Linner Pins Fixing Glasswool With Stud Welder
Weld Type Insulation Steel Duct Linner Pins Fixing Glasswool With Stud Welder
Weld Type Insulation Steel Duct Linner Pins Fixing Glasswool With Stud Welder
Weld Type Insulation Steel Duct Linner Pins Fixing Glasswool With Stud Welder
Specifications
Brand Name :
HUIHAOCUSTOM
Model Number :
duct linner pin
Certification :
ISO9001-2015
Place of Origin :
CHINA
MOQ :
10000SETS
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
7000000 SETS PER MONTH
Delivery Time :
10 WORK DAYS
Packaging Details :
PP BAGS+CARTON+PALLET/CASE
Name :
CD duct linner pin
Finished :
COPPER/ZINC PLATING
Pin diameter :
2.7mm, 3mm, 3.4mm
Pin length :
19mm, 25mm, 38mm, 45mm, 50mm, 63mm
Material :
mild steel / stainless steel
OEM/ODM :
to be your request
Company Type :
MANUFACTURER
Relate tool :
WELDER
Description

Weld Type Insulation Steel Duct Linner Pin Fixing Glasswool With Stud Welder

quick details of the insulation steel duct linner pin

Material stainless steel, MILD STEEL, COPPER
Application Building Facade Insulation Material
Name Reflective Insulation CD weld pins
Length 9.5mm-101mm
Function Rockwool Pipe fixed
OEM Accept OEM Service
Usage lock glasswool, rock wool and other insulation materials
Free sample available
Type Cap nail
Standard cup head pin for ship building

Features of Insulation Steel Duct Linner Pin

Beveled Edge Cap
Prevents tearing of duct liner
Faster Welds
Forged diamond point design creates more electrical resistance for faster welds.
Better Plating
Zinc and Chromate plating exceeds SMACNA standards and gives a more professional appearance.
Reduced Down Time
Consistent point quality reduces frequency of machine adjustments.
Stronger Welds
Hardened steel point assures positive electrical contact for complete sheet to pin fusion.
Applied with Standard Equipment
Easily applied with Automatic Pin Welder or most standard hand held or hopper fed resistance welders.

Specification of Insulation Steel Duct Linner Pin

Photo CD CUP HEAD PINS
Weld Type Insulation Steel Duct Linner Pins Fixing Glasswool With Stud Welder Part No. pin diameter round base size pin Length
HH-12 2.7mm 1-1/2" Stnd up to 6"
HH-10 3.4mm 1-1/2" Special Order
ZG-14 2.0mm 1-3/16" Up to 2-1/2"
ZG-12 2.7mm 1-3/16" Stnd up to 6"

Different types of Insulation Steel Duct Linner Pin

standard types details of standard
For US, Canada the standard washer diameter is 1.187"(30mm), the pin diameter is 12GA(2.7mm), the washer can with or without kraft paper. the length from 3/8" to 4-7/8"
For EU countries the washer diameter is 30mm, 38mm, The pin diameter is 12GA(2.7mm) and 14GA(2.0mm).
noted the washer can with or without kraft paper, the pin can be with or without plastic sleeve. the length from 9.5mm to 140mm. we also accept the special order for other lengths.

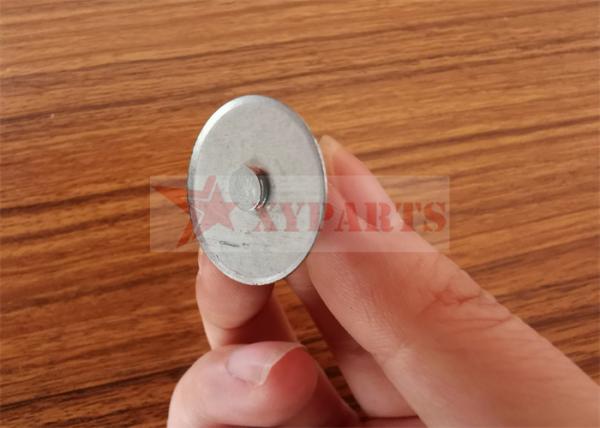

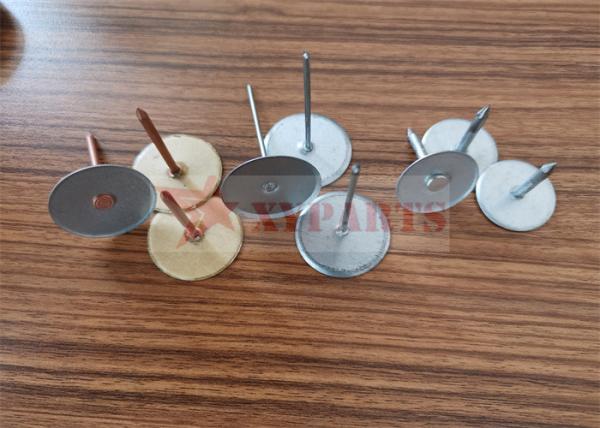

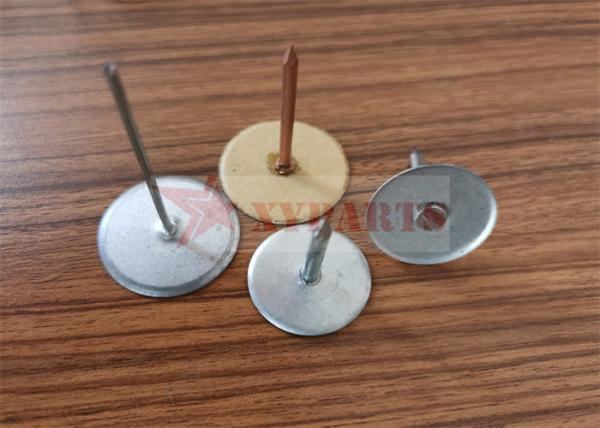

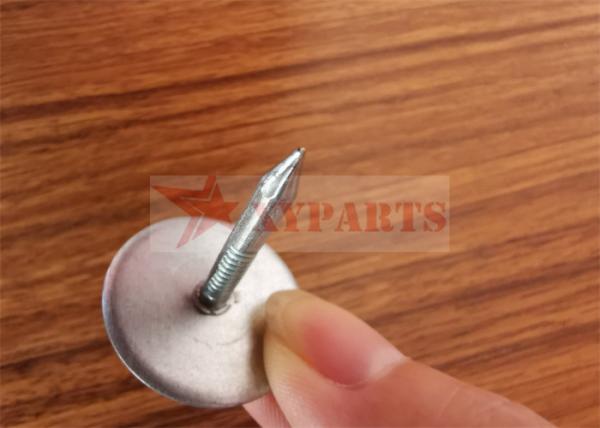

Images of Insulation Steel Duct Linner Pin

Weld Type Insulation Steel Duct Linner Pins Fixing Glasswool With Stud Welder

application equipments of Insulation Steel Duct Linner Pin

recommended for pin length before welding
1/2" insulation(all densities) 12.67mm
1" insulation(1-1/2"ib density) 17.63mm
1" foam 25.55mm
1"insulation(3ib densities) 23.72mm
1-1/2" insulation(all densities) 28.42mm
2"insulation(1-1/2"-2" ib density) 37.95mm
2"insulation(3ib densities) 48.77mm
3"insulation(all densities) 69.85mm
4" insulation(all densities) 95.00mm

Weld Type Insulation Steel Duct Linner Pins Fixing Glasswool With Stud Welder

Weld Type Insulation Steel Duct Linner Pins Fixing Glasswool With Stud Welder
