Aluminum Alloy Stainless Steel Bimetallic CD Weld Pins
Aluminum Alloy Stainless Steel Bimetallic CD Weld Pins
Aluminum Alloy Stainless Steel Bimetallic CD Weld Pins
Aluminum Alloy Stainless Steel Bimetallic CD Weld Pins
Aluminum Alloy Stainless Steel Bimetallic CD Weld Pins
Aluminum Alloy Stainless Steel Bimetallic CD Weld Pins
Aluminum Alloy Stainless Steel Bimetallic CD Weld Pins
Aluminum Alloy Stainless Steel Bimetallic CD Weld Pins
Specifications
Brand Name :
HUIHAOCUSTOM
Model Number :
CDM3
Certification :
ISO9001-2015
Place of Origin :
CHINA
MOQ :
10000SETS
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
7000000 SETS PER MONTH
Delivery Time :
10 WORK DAYS
Packaging Details :
PP BAGS+CARTON+PALLET/CASE
Name :
bi-metallic weld pins
Finished :
polished
Pin diameter :
3mm
Pin length :
25mm-150mm
Material :
aluminum base/ stainless steel pins
Fixing parts :
self locking washer/ dome caps
OEM/ODM :
Support
Manufacturer :
Yes
Description

Deck Board M3 Aluminum Alloy Stainless Steel Bi-Metallic CD Weld Pins

Quick details of the Deck Board M3 Aluminum Alloy Stainless Steel Bi-Metallic CD Weld Pins

  • CD Weld pinsTypes : bi-metallic pins
  • Material: stainless steel pins, aluminum alloy base
  • Surface treratment: polished for stainless steel and aluminum pins.
  • Pin diameter: 2.7mm and 3mm
  • Length: 15mm-300mm
Simple construction high fficiency saving labors Eeasy weld to fasten the insulation Pins sharp for easy go through any insulation

Specification of Deck Board M3 Aluminum Alloy Stainless Steel Bi-Metallic CD Weld Pins

photo name Specifications of the Bimetallic Insulation Pins
Material Aluminum base material +Stainless steel /Copper/Zinged steel
Base size 6*13mm in common
Pin diameter 3.0mm in common , Customized diameter is also available
Pin types sharp point and flat head
Length 15-150mm, length could be customized .

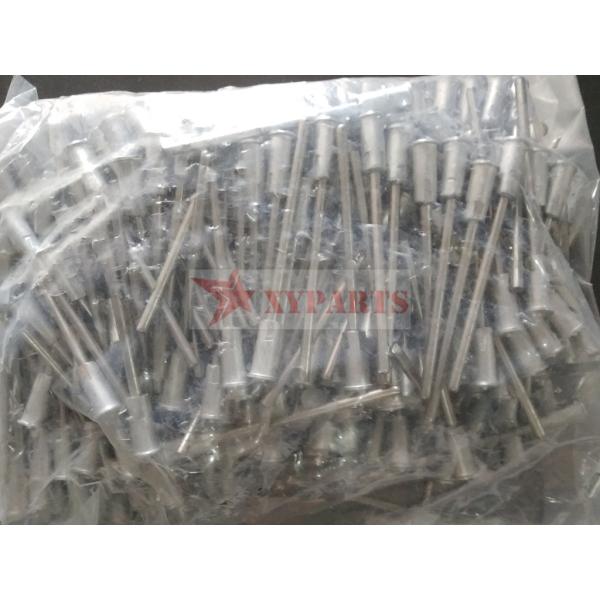

Images of the Deck Board M3 Aluminum Alloy Stainless Steel Bi-Metallic CD Weld Pins

Aluminum Alloy Stainless Steel Bimetallic CD Weld Pins

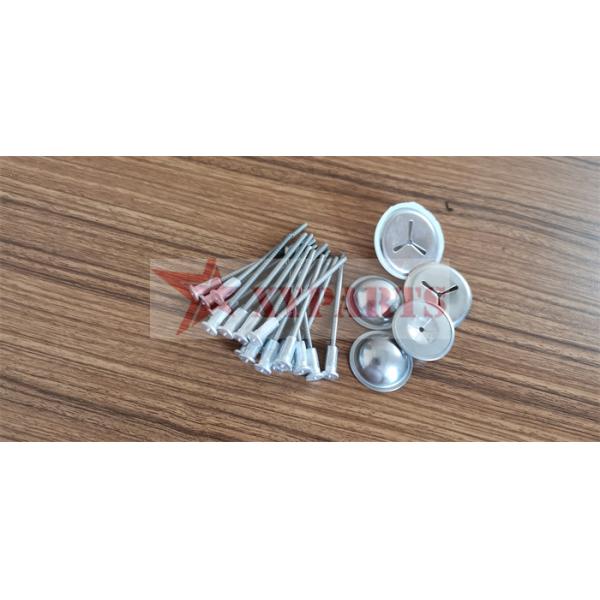

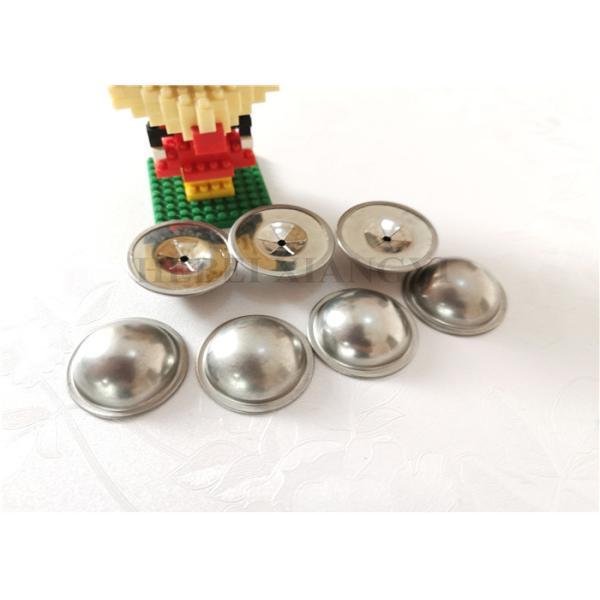

Installation parts-self locking washer / dome cap washers

Aluminum Alloy Stainless Steel Bimetallic CD Weld Pins

application equipments of Deck Board M3 Aluminum Alloy Stainless Steel Bi-Metallic CD Weld Pins

  • PowerPinner 7100 Light Duty, Hand Welder

  • PowerPinner 7200 Heavy Duty, Portable Hand Welder

  • PowerPinner 7005 Rapid Fire Fixed Head Welder

  • PowerPinner 7105 Rapid Fire Moving Head Welder

  • PowerPinner 50 Multi-head Welder

  • SAM Replacement Controller for Coil Line Pinners

recommended for pin length before welding
1/2" insulation(all densities) 12.67mm
1" insulation(1-1/2"ib density) 17.63mm
1" foam 25.55mm
1"insulation(3ib densities) 23.72mm
1-1/2" insulation(all densities) 28.42mm
2"insulation(1-1/2"-2" ib density) 37.95mm
2"insulation(3ib densities) 48.77mm
3"insulation(all densities) 69.85mm
4" insulation(all densities) 95.00mm

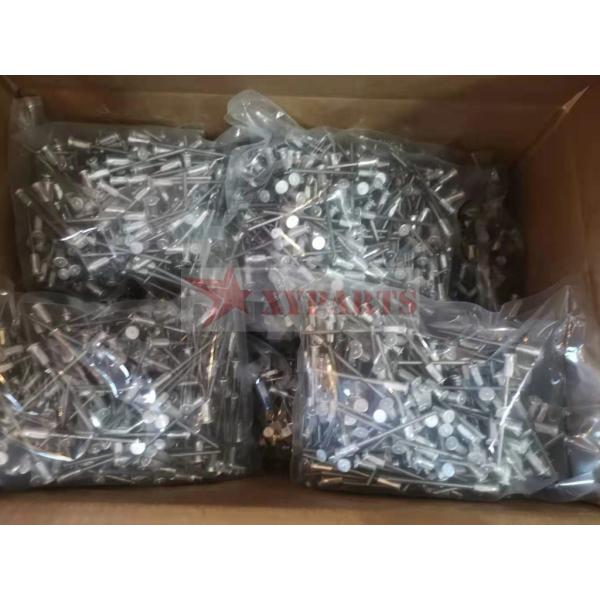

Package details of cd weld bi-metallic pins

pin length qty/bag carton size bags/carton
15mm-38mm 500pcs 41cmx28cmx18cm 10 bags
40mm-65mm 500pcs 41cmx28cmx18cm 8 bags
70mm-90mm 400bags 41cmx28cmx18cm 7 bags
other size custom custom
Aluminum Alloy Stainless Steel Bimetallic CD Weld Pins Aluminum Alloy Stainless Steel Bimetallic CD Weld Pins

FAQ

1-What is your min quantity?

-Min order value is not less USD500.

2-What is the normal delivery date?

-20-25 days against the deposit received.

3-What products is your self-produced?

-All stamping and all plastic parts.

4-Where is your main market?

-USA, Gulf Countries and East Europe.
