Colorful Stainless Steel Wire Chain Mesh Curtains For For Fireplace Partition

Quick details of chain mesh curtains

Material: aluminum alloy, stainless steel 304 stainless steel 316, brass, copper, phosphor bronze Wire diameter: 0.8–1.2 mm 80% customer choose 1.0mm, 13% customer choose 0.8mm, 5% customer choose 1.2mm. Aperture size: 4-10mm Open area: 40– 85% Weight: 1.7–6 kg/m2. (depending on material and size chosen) Coil length & mesh panelwidth: customized.(up to 11m*100m) Surface treatment: anodic oxidation and spray paint

Main material: 1. Aluminum alloy chain mesh curtain: has many advantages, such as at room temperature does not fall off, high temperature 120°C does not fade, anti-acid and anti-alkali, corrosion resistance, not react with oxidants, suitable for humid environment, not rust or mildew, light weight, has good toughness and high strength. 2. Stainless steel chain mesh curtain: the surface is smooth,no rust,corrosion resistance, non-toxic, health, environmental protection.

Technical data of chain mesh curtains​

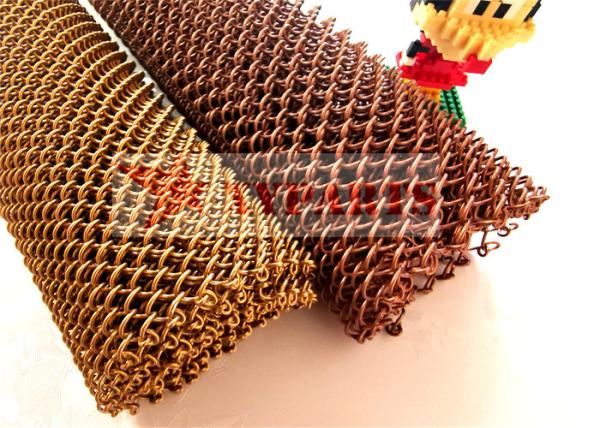

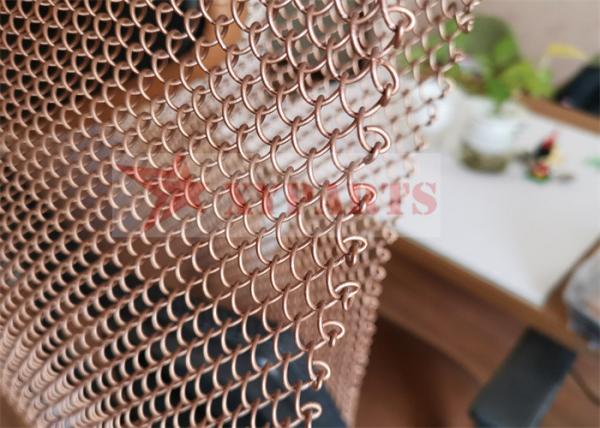

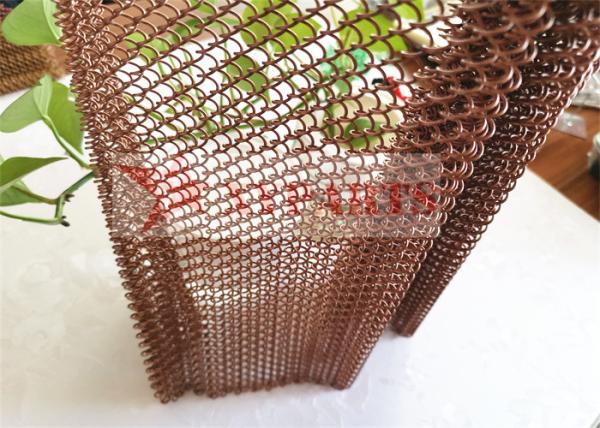

Images of chain mesh curtains

Fixing parts for chain mesh curtains installation

Installation frame dersign for chain mesh curtains

We can complete selection of accessories. Customer can choose straight or curvy curtain rail system on their request. It is easy to install the rail system. First, the rail should be fixed into the wall or the place the drapery will used for, then you can slide metal pulleys into the rail. At last stopping the rail ends up

Installation process of chain mesh curtains

step 1 : pulley wheel slip into the track

step 2 : fix the track head in two sides

step 3 : confirm the gap of the metal mesh curtain folds

step 4 : connect and fix the track, metal chain and mesh curtain by screws

step 5 : install the connection for track and wall

step 6 : installation renderings

Applications of chain mesh curtains

1. Curtain-shower, door, window, house;
2. Space divider-for home , office ,hotel, supermarket, etc;
3. For decoration- ceiling lamp, wall covering, display, light partitioning, trade fair exhibition;
4. For protection-facade, enclosures, cladding, sun shades;
5. Screens & isolation - for dining hall, etc.
